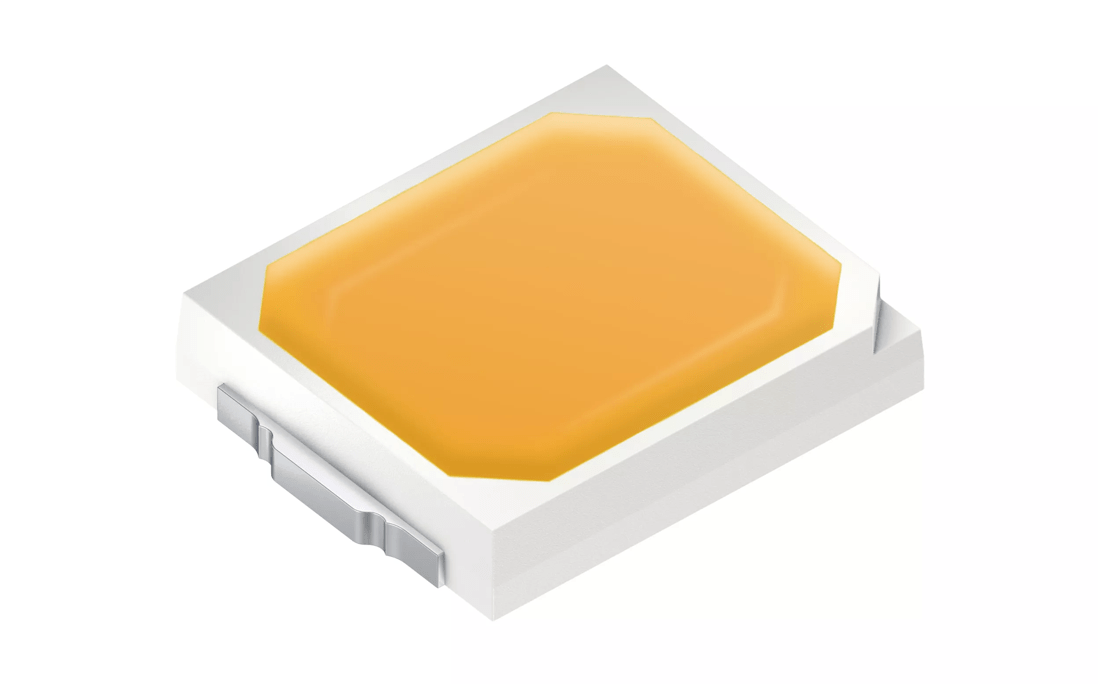

OSRAM DURIS™ E 2835, GW JTLPS1.KM

×

Description

The pre-molded 2835 LED version with standard 2835 footprint provides competitive value in application and system level. The DURIS™ E 2835 CRI90 provides good efficacy and closing the gap to CRI80. This is important to support energy efficiency regulation while having good quality of light.
Datasheet
GW JTLPS1.KM_G
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
0.18 W
Mid
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
3.5 mm
w
2.8 mm
h
0.7 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW JTLPS1.KM-H3H6-XX38-1-G ΦV = 31.5 ... 37.5 lm, Mountingmethode:SDCM 3, 2700 K (IF = 65 mA) Q65113A8187 Full production
GW JTLPS1.KM-H3H6-XX58-1-G ΦV = 31.5 ... 37.5 lm, Mountingmethode:SDCM 5, 2700 K (IF = 65 mA) Q65113A7072 Full production
GW JTLPS1.KM-H4H7-XX37-1-G ΦV = 33.0 ... 39.0 lm, Mountingmethode:SDCM 3, 3000 K (IF = 65 mA) Q65113A8186 Full production
GW JTLPS1.KM-H4H7-XX57-1-G ΦV = 33.0 ... 39.0 lm, Mountingmethode:SDCM 5, 3000 K (IF = 65 mA) Q65113A7071 Full production
GW JTLPS1.KM-H5H8-XX31-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 6500 K (IF = 65 mA) Q65113A8189 Full production
GW JTLPS1.KM-H5H8-XX32-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 5700 K (IF = 65 mA) Q65113A8188 Full production
GW JTLPS1.KM-H5H8-XX33-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 5000 K (IF = 65 mA) Q65113A8183 Full production
GW JTLPS1.KM-H5H8-XX35-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 4000 K (IF = 65 mA) Q65113A8184 Full production
GW JTLPS1.KM-H5H8-XX36-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 3500 K (IF = 65 mA) Q65113A8185 Full production
GW JTLPS1.KM-H5H8-XX51-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 6500 K (IF = 65 mA) Q65113A7074 Full production
GW JTLPS1.KM-H5H8-XX52-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 5700 K (IF = 65 mA) Q65113A7075 Full production
GW JTLPS1.KM-H5H8-XX53-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 5000 K (IF = 65 mA) Q65113A7073 Full production
GW JTLPS1.KM-H5H8-XX55-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 4000 K (IF = 65 mA) Q65113A7069 Full production
GW JTLPS1.KM-H5H8-XX56-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 3500 K (IF = 65 mA) Q65113A7070 Full production
