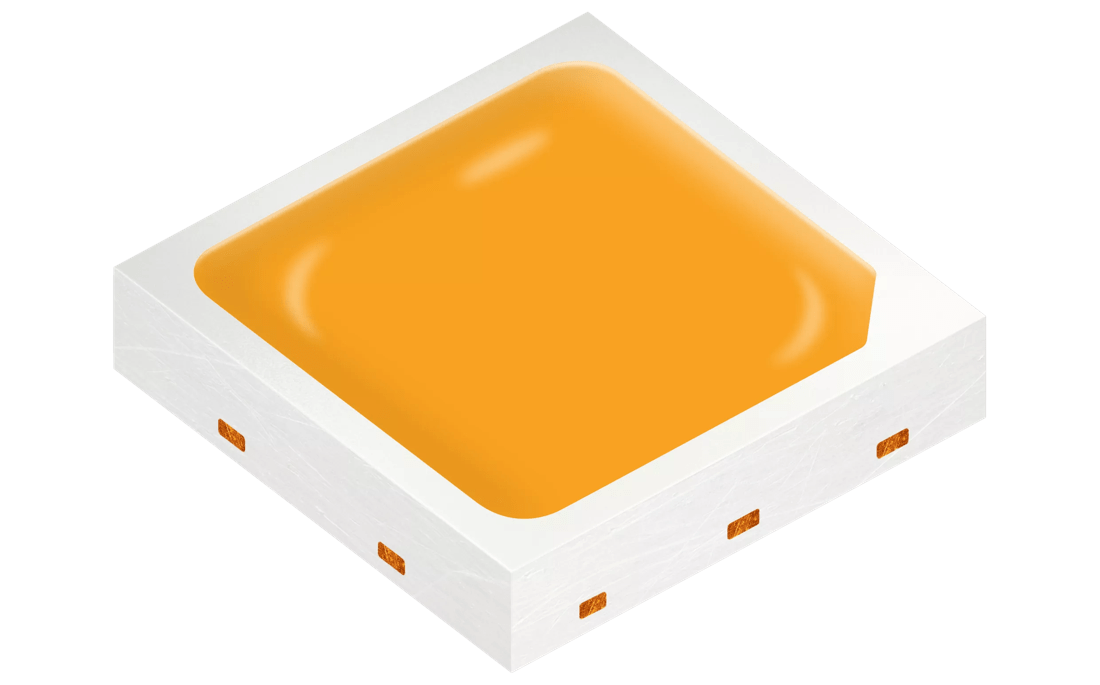

OSRAM DURIS® S 5, GW PSLT33.EM

Name: OSRAM DURIS® S 5, GW PSLT33.EM
Brand: ams-OSRAM AG

Not for new design

Description

The compact, mid-power DURIS S 5 LED addresses three different luminous flux levels, using just one package and solder pad. With high efficacies, color quality and long lifetimes it is the ideal choice for all indoor General Lighting applications

Datasheet

Select & order

Replacement Products

OSRAM DURIS® S 5, GW PSLT33.EM

Details and Datasheet

Details

Parameters

Color of emission

White

CRI

Electrical power

0.96 W

High

Brightness

Φ_V

138 lm

I_V

46.3 cd

Φ_E

416 mW

I_E

140 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

3.0 mm

0.65 mm

Application fields

Lighting Indoor lighting Outdoor & industrial lighting

Ordering codes

Product Type	Description	Order No.	Availability
GW PSLT33.EM-LWL1-XX52-1-G3	Φ_V = 135.0 ... 160.0 lm, 5700 K (I_F = 150 mA)	Q65112A8943	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now
GW PSLT33.EM-LXL3-XX51-1-G3	Φ_V = 140.0 ... 170.0 lm, 6500 K (I_F = 150 mA)	Q65112A8939	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Farnell Buy now
GW PSLT33.EM-LWL1-XX56-1-G3	Φ_V = 135.0 ... 160.0 lm, 3500 K (I_F = 150 mA)	Q65112A8940	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now
GW PSLT33.EM-LWL1-XX53-1-G3	Φ_V = 135.0 ... 160.0 lm, 5000 K (I_F = 150 mA)	Q65112A8942	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Farnell Buy now
GW PSLT33.EM-LVL1-XX57-1-G3	Φ_V = 130.0 ... 160.0 lm, 3000 K (I_F = 150 mA)	Q65112A8944	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now
GW PSLT33.EM-K5L1-XX58-1-G3	Φ_V = 125.0 ... 160.0 lm, 2700 K (I_F = 150 mA)	Q65112A8945	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Farnell Buy now
GW PSLT33.EM-LWL1-XX55-1-G3	Φ_V = 135.0 ... 160.0 lm, 4000 K (I_F = 150 mA)	Q65112A8941	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now
GW PSLT33.EM-LVLX-XX57-1	Φ_V = 130.0 ... 145.0 lm, 3000 K (I_F = 150 mA)	Q65112A6792	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-LWLY-XX51-1	Φ_V = 135.0 ... 150.0 lm, 6500 K (I_F = 150 mA)	Q65112A6793	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-LWLY-XX53-1	Φ_V = 135.0 ... 150.0 lm, 5000 K (I_F = 150 mA)	Q65112A6795	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-LWLY-XX55-1	Φ_V = 135.0 ... 150.0 lm, 4000 K (I_F = 150 mA)	Q65112A6796	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-K5LW-XX58-1	Φ_V = 125.0 ... 140.0 lm, 2700 K (I_F = 150 mA)	Q65112A6791	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-LWLY-XX52-1	Φ_V = 135.0 ... 150.0 lm, 5700 K (I_F = 150 mA)	Q65112A6794	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW PSLT33.EM-LWLY-XX56-1	Φ_V = 135.0 ... 150.0 lm, 3500 K (I_F = 150 mA)	Q65112A6797	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
