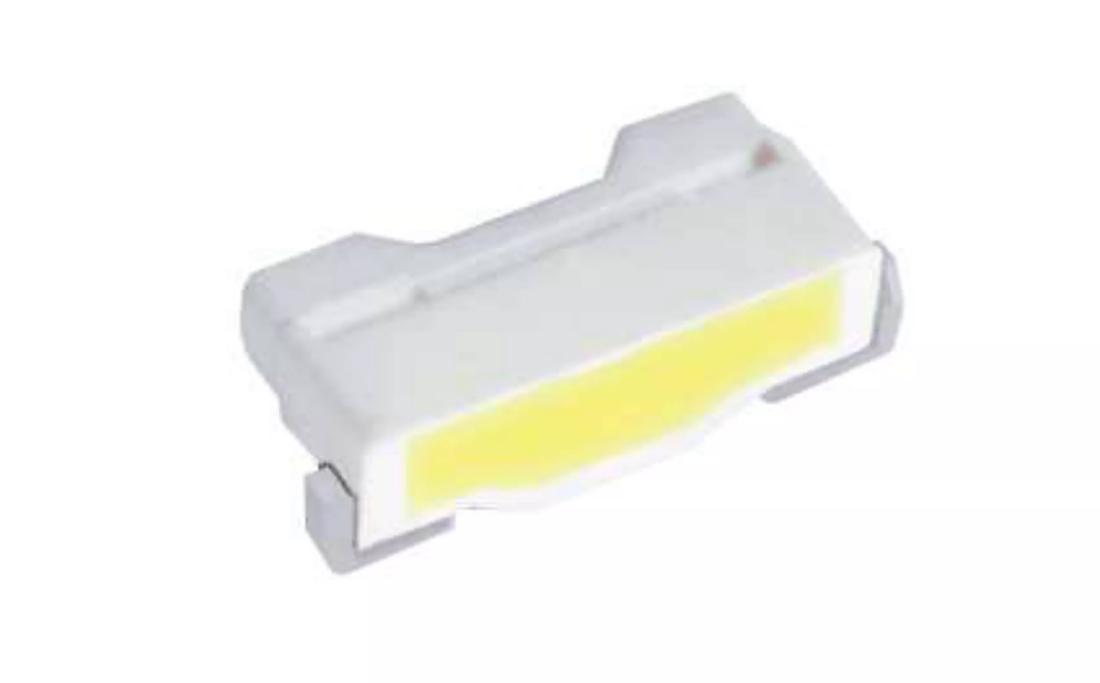

OSRAM Micro SIDELED™ 2808, LW Y1SG

×

Description

Micro SIDELED is a SMT LED with side emission. Due to its low package height it is ideal for applications in limited space environments.
Datasheet
LW Y1SG
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.066 W
Low
Brightness
ΦV
6.39 lm
IV
2.2 cd
ΦE
22 mW
IE
7.57 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
2.8 mm
w
1.2 mm
h
0.8 mm

Ordering information

Product Type Description Ordering code Availability
LW Y1SG-BFOO-EKFM-1 Iv ≥ 1600 mcd (IF = 20 mA) Q65111A8461 Full production
LW Y1SG-BFOO-GKJM-1 Iv ≥ 1600 mcd (IF = 20 mA) Q65111A8460 Full production
