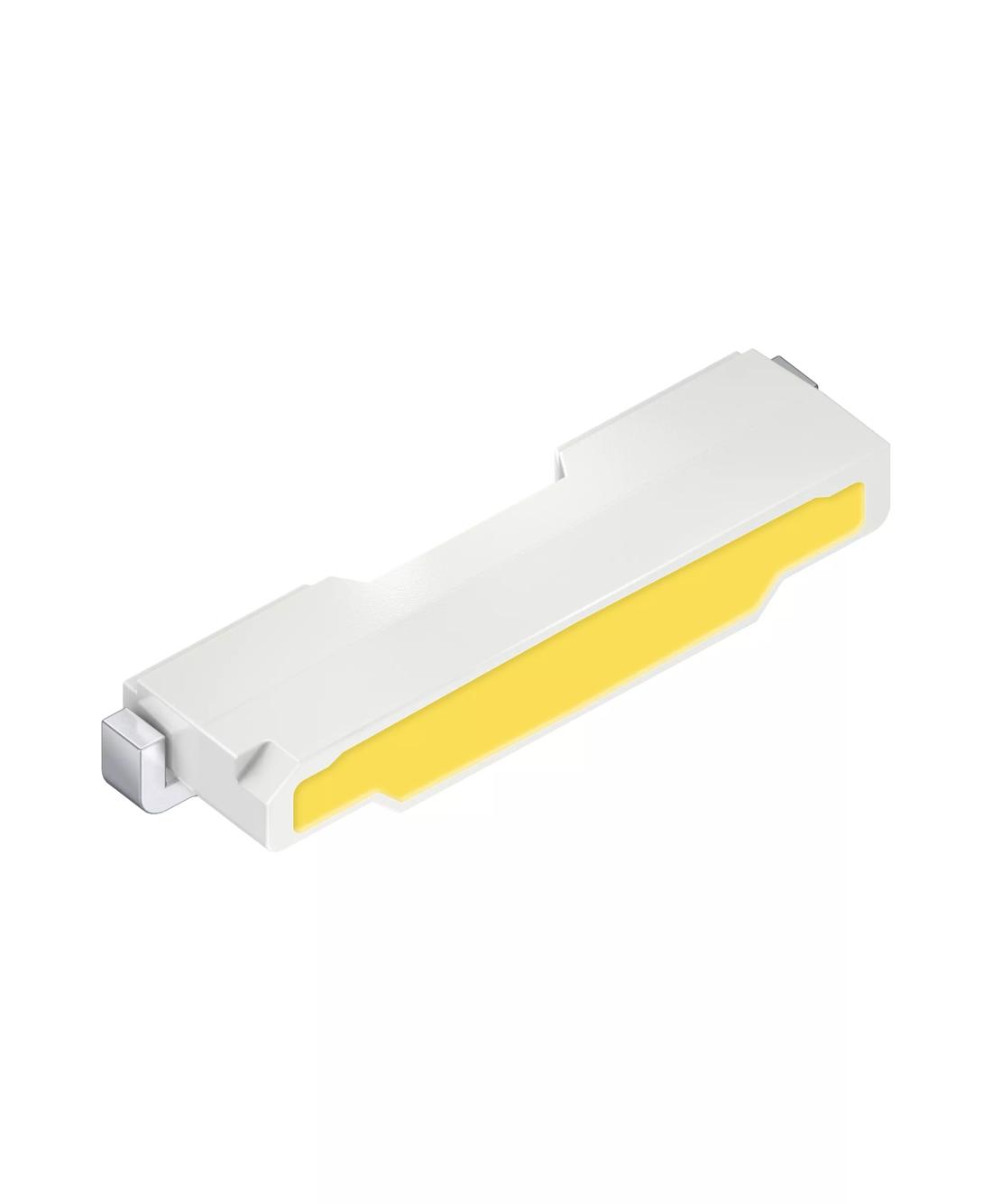

OSRAM Micro SIDELED™ 3806, CUW Y3SH.B1

Discontinued
×
Discontinued

Description

Micro SIDELED is a SMT LED with side emission. Due to its low package height it is ideal for applications in limited space environments.
Datasheet
CUW Y3SH.B1
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.057 W
Low
Brightness
ΦV
9.5 lm
IV
2.95 cd
ΦE
32 mW
IE
9.93 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
3.8 mm
w
1.0 mm
h
0.6 mm

Ordering information

Product Type Description Ordering code Availability
CUW Y3SH.B1-ECJE-4A7V-Z282 ΦV = 7000 ... 11750 mlm (IF = 20 mA) Q65112A6147 Discontinued
CUW Y3SH.B1-FCJF-4N7V-Z282 ΦV = 8000 ... 12000 mlm (IF = 20 mA) Q65112A6994 Discontinued
