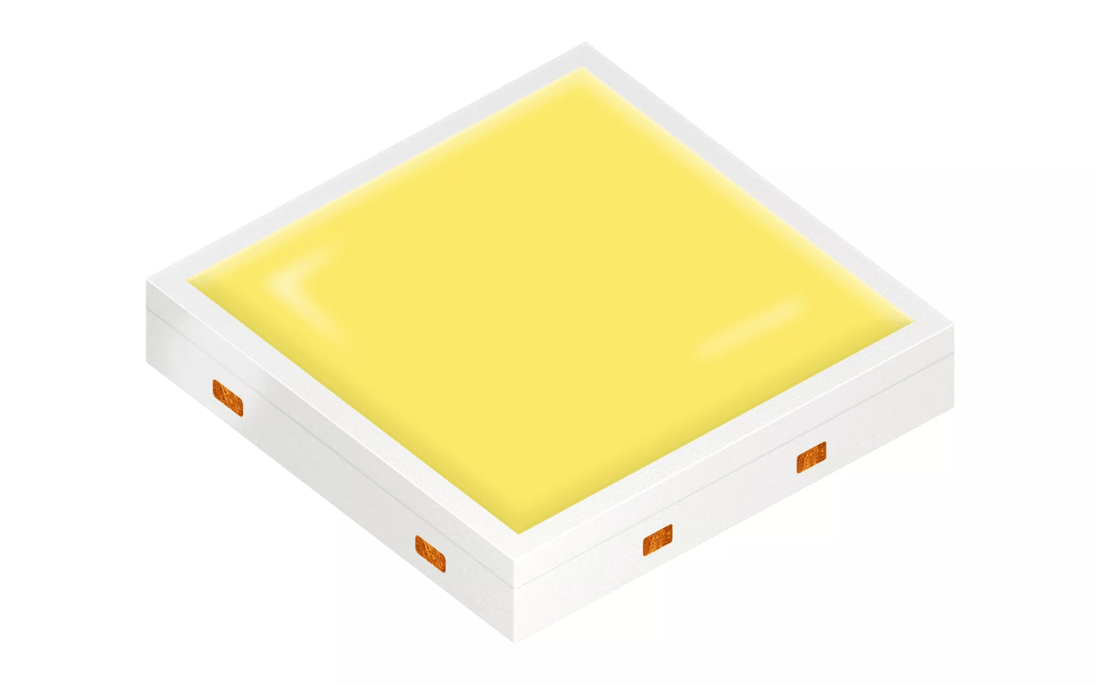

OSRAM OSCONIQ® C 3030, GW PLTRA1.PM

OSRAM OSCONIQ® C 3030, GW PLTRA1.PM
New
×
New

Description

Leveraging the strengths of a traditional high power LED as well as the benefits of a chip scale package, the OSCONIQ C 3030 LEDs are designed to deliver the highest luminous intensity at the smallest footprint in a luminaire along with outstanding lifetime and low thermal resistance. With their compact size, these LEDs can be densely clustered and scalable to multiply for higher flux output. It also features ams Osram’s proven UX:3 chip technology and an integrated ESD, which protects against damage caused by electrostatic voltages up to 8 kV. The OSCONIQ C 3030 is ideal for high-power and high-intensity applications such as stadium flood or spotlights, high-mast lighting and architectural spotlights.
Datasheet
GW PLTRA1.PM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
70
Electrical power
3 W
High
Brightness
ΦV
480 lm
IV
156 cd
ΦE
1950 mW
IE
632 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
3 mm
w
3 mm
h
0.575 mm

Ordering codes

Product Type Description Order No. Availability
GW PLTRA1.PM-NAQB-XX58-1 ΦV = 380.0 ... 620.0 lm, 2700 K (IF = 1050 mA) Q65113A5744
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-MDQB-XX510-1 ΦV = 340.0 ... 620.0 lm, 2200 K (IF = 1050 mA) Q65113A5745
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NDQB-XX51-1 ΦV = 440.0 ... 620.0 lm, 6500 K (IF = 1050 mA) Q65113A5742
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NDQB-XX57-1 ΦV = 440.0 ... 620.0 lm, 3000 K (IF = 1050 mA) Q65113A5743
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NEQB-XX55-1 ΦV = 460.0 ... 620.0 lm, 4000 K (IF = 1050 mA) Q65113A5738
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NEQB-XX54-1 ΦV = 460.0 ... 620.0 lm, 4500 K (IF = 1050 mA) Q65113A5739
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NDQB-XX56-1 ΦV = 440.0 ... 620.0 lm, 3500 K (IF = 1050 mA) Q65113A5737
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW PLTRA1.PM-NEQB-XX53-1 ΦV = 460.0 ... 620.0 lm, 5000 K (IF = 1050 mA) Q65113A5740
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
GW PLTRA1.PM-PAQB-XX52-1 ΦV = 480.0 ... 620.0 lm, 5700 K (IF = 1050 mA) Q65113A5741
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
