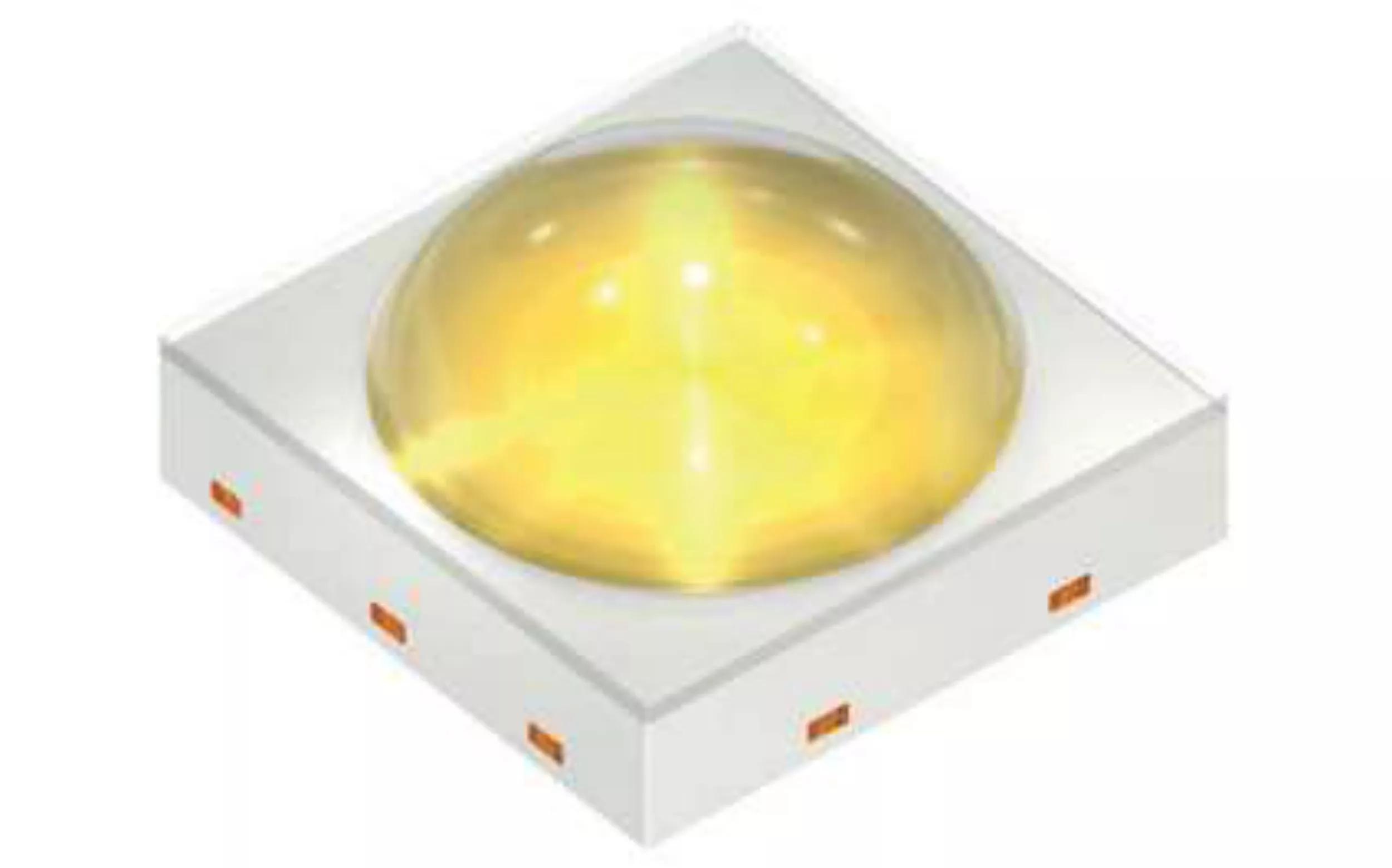

OSRAM OSCONIQ™ P 3030, GW QSSPA1.WB

×

Description

The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.
Datasheet
GW QSSPA1.WB
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
1.0 W
High
Brightness
ΦV
222 lm
IV
62.7 cd
ΦE
554 mW
IE
156 mW/sr
Beam angle
∢
130 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

Ordering information

Product Type Description Ordering code Availability
GW QSSPA1.WB-LUMU-MCML-1 ΦV = 164 ... 280 lm (IF = 350 mA) Q65112A9195 Full production
GW QSSPA1.WB-LUMU-MMMW-1 ΦV = 164 ... 280 lm (IF = 350 mA) Q65112A9197 Full production

Downloads

Datasheets
GW QSSPA1.WB · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
High power OSCONIQ™ P — Details on properties, handling and processing · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
