OSRAM OSLON™ Black Flat S, KW HHL533.TK

×

Description

SMT package for High Power Forward Lighting applications widely in-use in global automotive market since several years. The leadframe based black package concept provides outstanding contrast and excellent 2nd board reliability for standard Headlamp solutions. The OSLON Black Flat S meets both excellent brightness in combination with high luminance.
Datasheet
KW HHL533.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
3.1 W
High
Brightness
ΦV
465 lm
IV
150 cd
ΦE
1460 mW
IE
472 mW/sr
ΦP
2.08 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
3.75 mm
w
3.75 mm
h
0.49 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW HHL533.TK-S4S9-4L36M1-48A4 ΦV = 395 ... 535 lm (IF = 1000 mA) Q65115A0672 Full production
KW HHL533.TK-S5S9-4L35M1-48A4 ΦV = 415 ... 535 lm (IF = 1000 mA) Q65115A0673 Full production
KW HHL533.TK-S5S9-5L26M1-48A4 ΦV = 415 ... 535 lm (IF = 1000 mA) Q65115A0674 Full production
KW HHL533.TK-S6S9-5L26M1-48A4 ΦV = 435 ... 535 lm (IF = 1000 mA) Q65115A0675 Full production

Downloads

Datasheets
KW HHL533.TK · Datasheet · PDF · en_US

Application note
OSLON™ Black Flat S - Details on handling and assembly · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

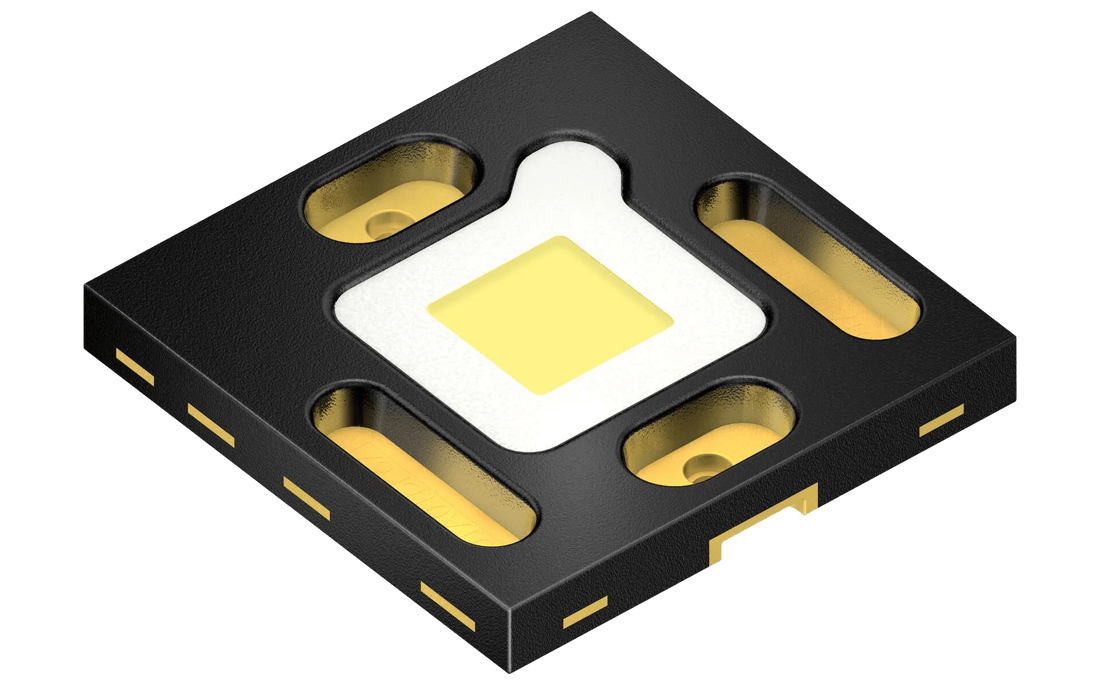

OSLON Black Flat S 1-Chip - no background · Images · PNG
