OSRAM OSLON® Black Flat X, KW2 HML631.TK

OSRAM OSLON® Black Flat X, KW2 HML631.TK
×

Product features

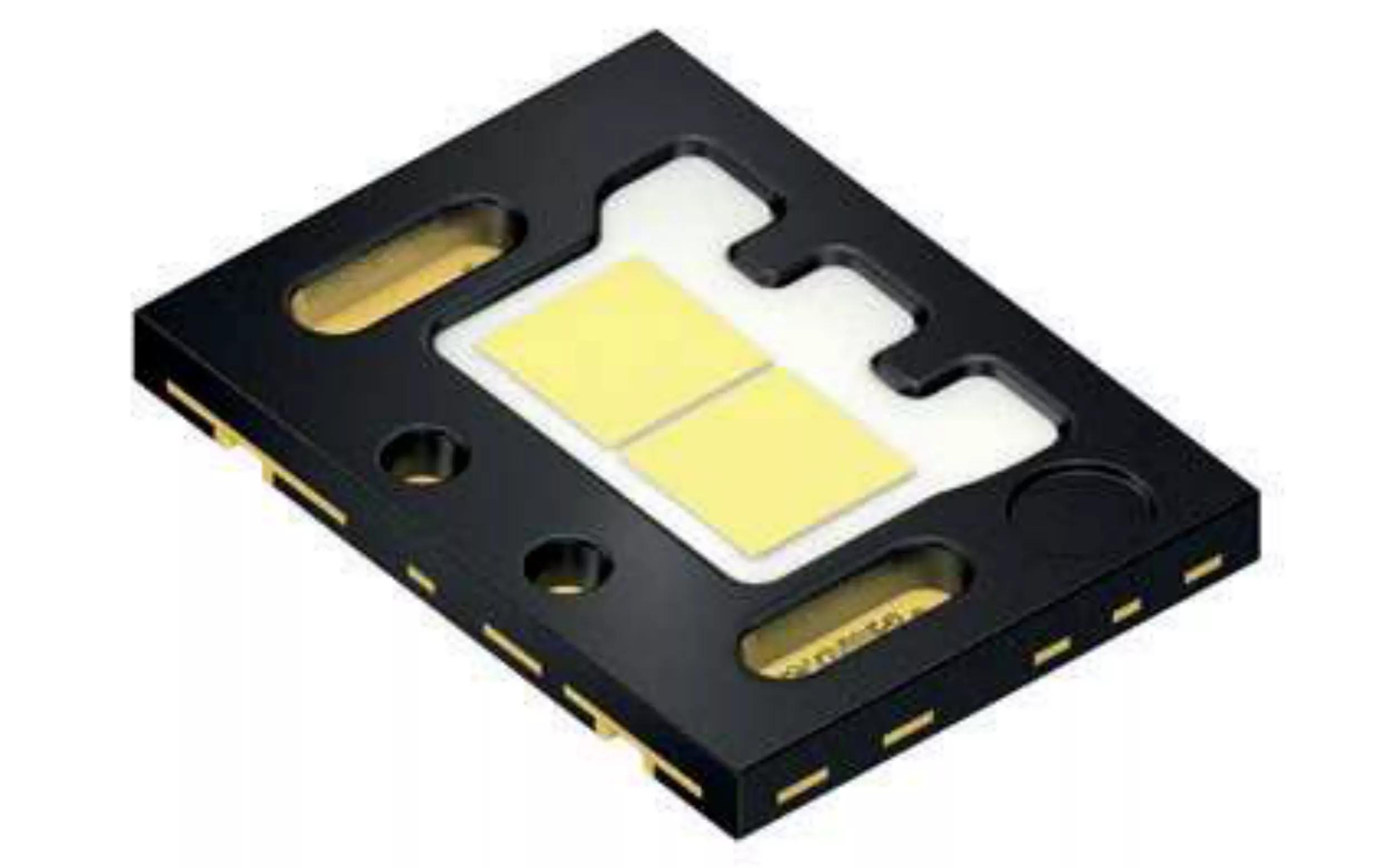

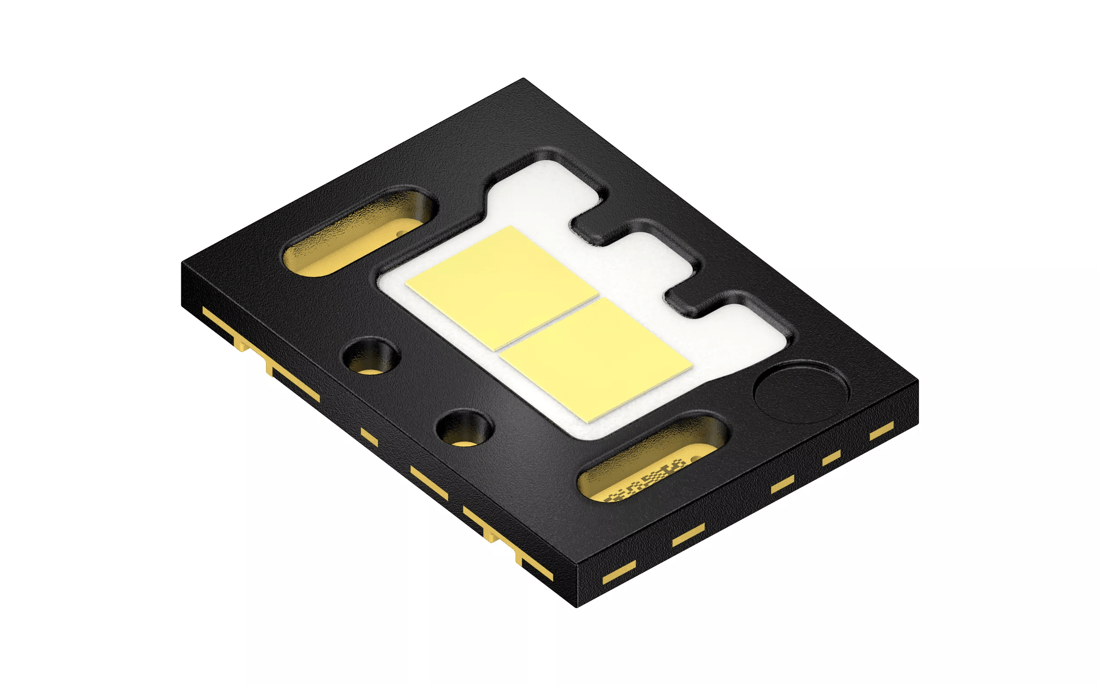

The OSLON Black Flat X product family offers LED devices with the highest efficiency in the ams OSRAM portfolio. This feature makes it the perfect light source for standard forward lighting applications with a high focus on system cost. The SMT device is very stable, durable and can be used with standard processes. The pad geometry of the widely used OSLON Black Flat product platform was further optimized to allow for excellent thermal conditions, while the already known, outstanding contrast of the package concept is kept on the familiar level.

Downloads

Datasheet

KW2 HML631.TK

Datasheet / 1.9 MB

Application note

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Fundamentals of LED handling

General Information / 1.3 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Cleaning of LEDs

Processing and Handling / 795.1 KB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Dimming LEDs with respect to grouping current

Driving of LEDs / 1,007.0 KB

LED diagnosis in automotive applications

Driving of LEDs / 2.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Package related thermal resistance of LEDs

Thermal Management / 2.1 MB

Temperature measurement with thermocouples

Thermal Management / 3.9 MB

The thermal measurement point of LEDs

Thermal Management / 2.7 MB

Thermal management of LED light sources

Thermal Management / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
KW2 HML631.TK-6DT1-4L05M0-SC6B ΦV = 820 ... 1060 lm (IF = 1000 mA) Q65113A1243
KW2 HML631.TK-7DT2-6L07M0-SC6B ΦV = 860 ... 1100 lm (IF = 1000 mA) Q65113A1298
KW2 HML631.TK-6DT2-4L07M0-SC6B ΦV = 820 ... 1100 lm (IF = 1000 mA) Q65113A4584
