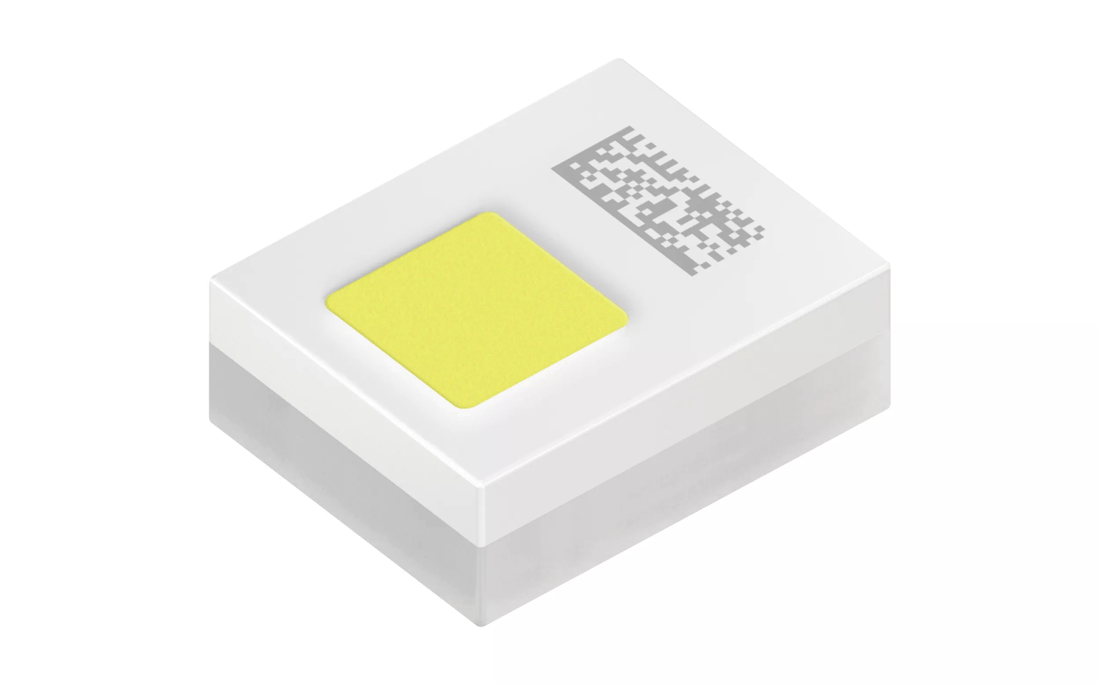

OSRAM OSLON® Boost HM, KW CELMM2.TK

OSRAM OSLON® Boost HM, KW CELMM2.TK
New
×
New
×

Description

OSLON® Boost HM utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour. The LED is characterized by a high luminance of up to 275 cd / mm² and a high luminous flux. Therefore this LED is ideally suited as a powerful light source for ultra-slim headlamp designs.
Datasheet
KW CELMM2.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
4.1 W
High
Brightness
ΦV
433 lm
IV
140 cd
ΦE
1380 mW
IE
446 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
1.9 mm
w
1.5 mm
h
0.73 mm

Ordering codes

Product Type Description Order No. Availability
KW CELMM2.TK-S2S8-4L16M1 ΦV = 355 ... 510 lm (IF = 1200 mA) Q65113A5393
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
Distribution partners:
Digi-Key
Buy now
Mouser
Buy now
KW CELMM2.TK-S2S8-4L25M2 ΦV = 355 ... 510 lm (IF = 1200 mA) Q65113A5394
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
KW CELMM2.TK-S2S8-4L35M3 ΦV = 355 ... 510 lm (IF = 1200 mA) Q65113A5398
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

Datasheets

KW CELMM2.TK

Datasheet
EN
DE
CN
JP

Application note

Resources

Images

Product selector

Find the right product.
Product selector

More OSLON® boost HM

The high luminance LED for slim head lamp designs and ADB hot spot.
Explore more OSLON® boost HM
