OSRAM OSLON® Compact PL, KW CWLPM3.TK

OSRAM OSLON® Compact PL, KW CWLPM3.TK

Description

Compact light source with improved heat dissipation and small z-tolerance (+/- 35 µm). This special device in the OSLON Compact PL family combines the advantages of a ceramic package with outstanding efficiency.

Contact us Support

Details

Parameters

Color of emission

White

Electrical power

3.2 W

High

Brightness

Φ_V

473 lm

I_V

150 cd

Φ_E

1540 mW

I_E

490 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

135 °C

Dimension

l

1.9 mm

w

1.5 mm

h

0.73 mm

Application fields

Automotive & mobility Static forward lighting Dynamic forward lighting

Ordering codes

Product Type	Description	Order No.	Availability
KW CWLPM3.TK-5SS9-4L07M0-2686	Φ_V = 410 ... 535 lm (I_F = 1000 mA)	Q65113A3327	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Farnell Buy now Mouser Buy now RS Buy now

Downloads

Datasheets

KW CWLPM3.TK

Datasheet

DE

JP

Application note

OSLON® Compact — Details on handling and processing

Product related

DE

CN

JP

Preventing LED failures caused by corrosive materials

General information

DE

CN

JP

Long-term availability management

General information

DE

CN

JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information

DE

CN

JP

Details on photobiological safety of LED light sources

General information

DE

CN

JP

Reliability and lifetime of LEDs

General information

JP

Importing rayfiles and ray-measurement files of LEDs

General information

DE

CN

JP

Chemical compatibility of LEDs

General information

DE

CN

JP

Measurement, calibration and measurement uncertainty of LEDs

General information

DE

JP

Handling of silicon resin LEDs

Handling recommendations

DE

CN

JP

ESD protection while handling LEDs

Handling recommendations

DE

CN

JP

Dry pack information

Handling recommendations

DE

CN

JP

Fundamentals of LED handling

Handling recommendations

DE

CN

JP

Ceramic LEDs — Details on handling and processing

Soldering and processing

DE

CN

JP

Measuring of the temperature profile during the reflow solder process

Soldering and processing

DE

CN

JP

Processing of SMD LEDs

Soldering and processing

DE

CN

JP

Recommended pick-and-place tools of LEDs

Soldering and processing

DE

CN

JP

Further details on lead free reflow soldering of LEDs

Soldering and processing

JP

PCB technologies for LED applications

Thermal management

DE

CN

JP

The thermal measurement point of LEDs

Thermal management

DE

CN

JP

Package related thermal resistance of LEDs

Thermal management

DE

CN

JP

Temperature measurement with thermocouples

Thermal management

DE

CN

JP

Thermal management of LED light sources

Thermal management

DE

CN

JP

LED diagnosis in automotive applications

Electrical design

DE

CN

JP

Comparison of simple LED circuits for low power LEDs

Electrical design

DE

CN

JP

Dimming LEDs with respect to grouping current

Electrical design

DE

CN

JP

The basic principles of Electrical Overstress (EOS)

Electrical design

DE

CN

JP

Resources

CAD Data

CAD Data

Optical Simulation

Optical Simulation

Images

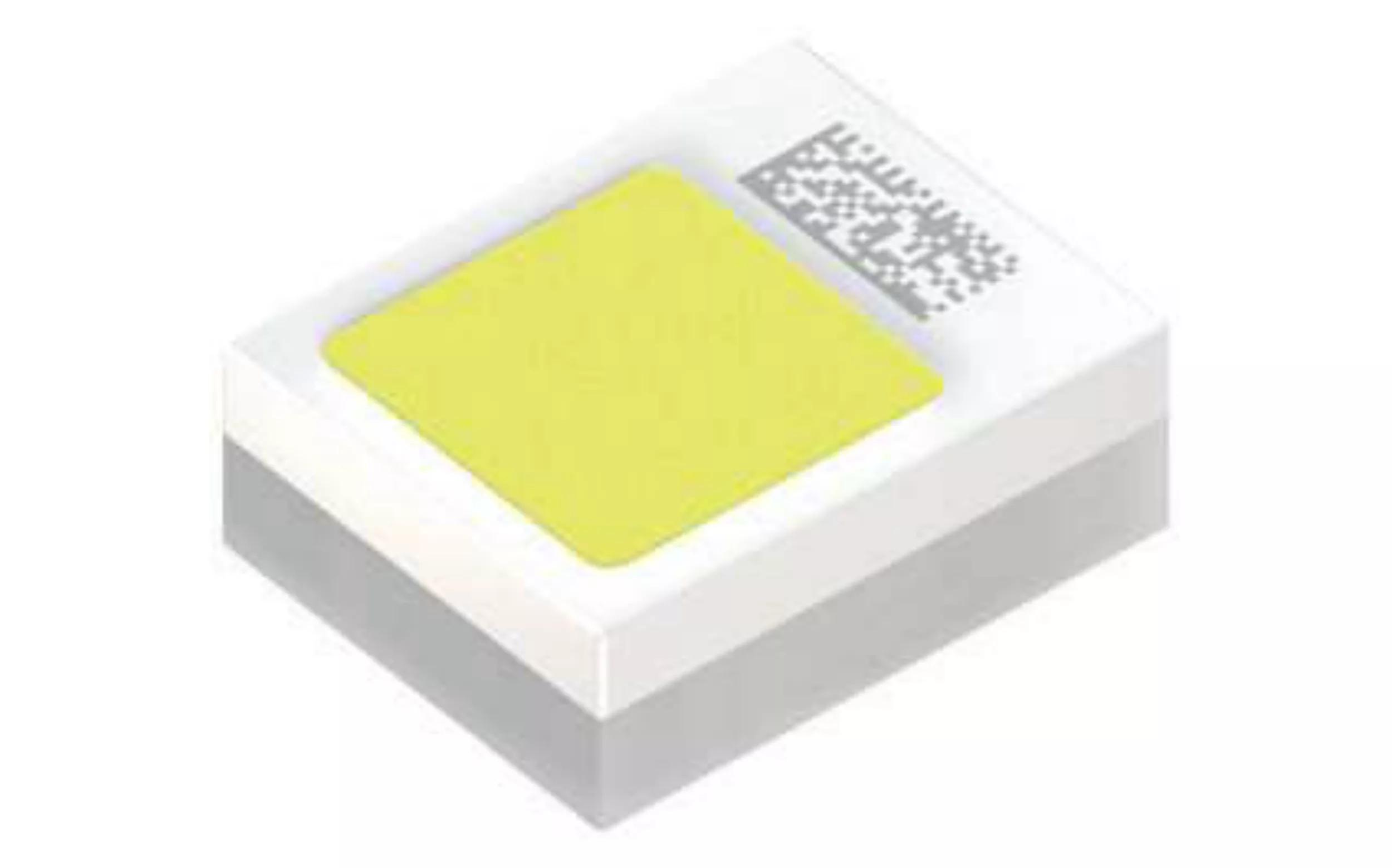

KW_CWLPM3-TK_36x22

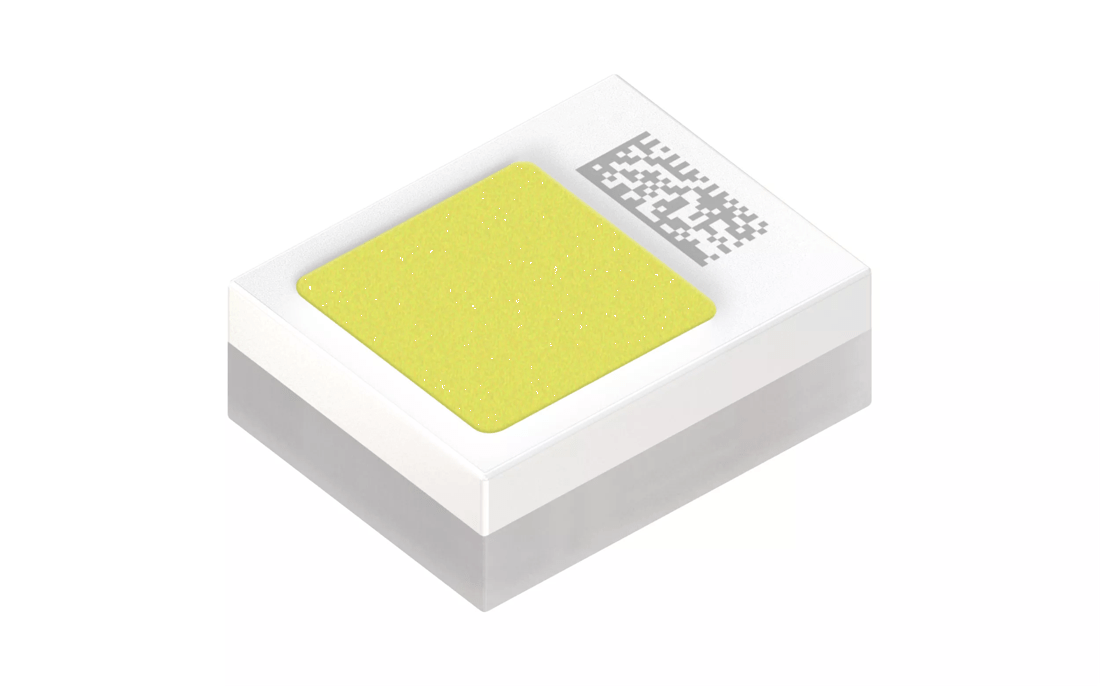

KW CWLPM3.TK
