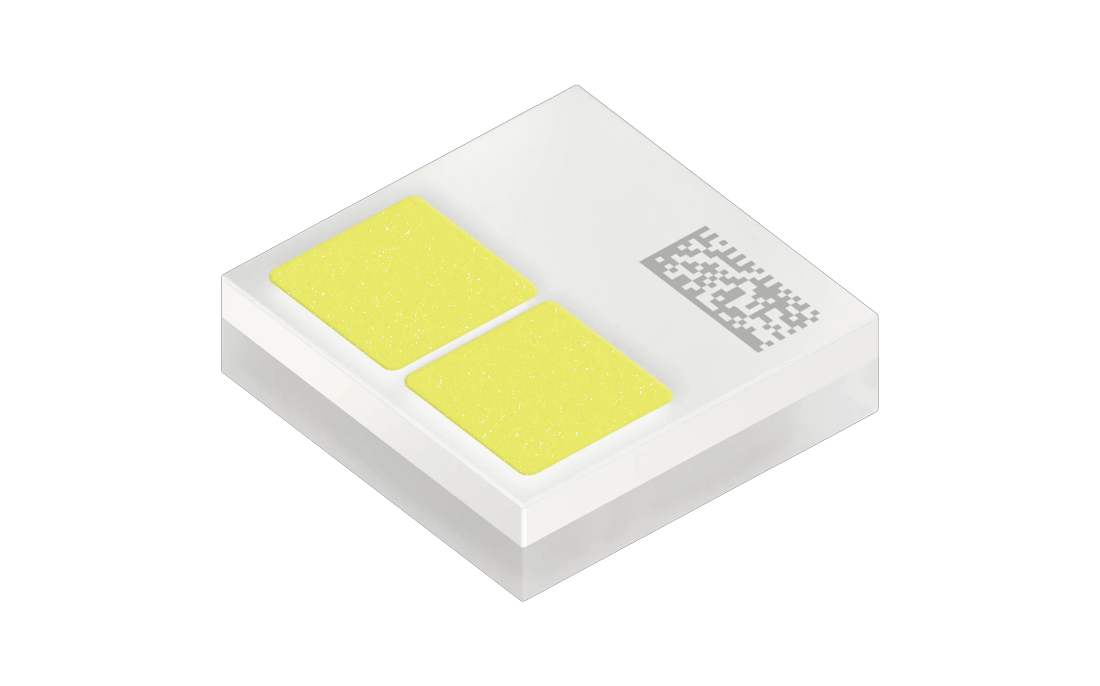

OSRAM OSLON™ Compact PL, KW2 CFLNM4.TK

New
×
New

Description

Compact light source with isolated thermal pad for improved heat dissipation. The OSLON Compact PL product family meets both excellent brightness in combination with outstanding luminance.
Datasheet
KW2 CFLNM4.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
6.2 W
Ultra High
Brightness
ΦV
900 lm
IV
294 cd
ΦE
2770 mW
IE
905 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
3.1 mm
w
2.46 mm
h
0.73 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW2 CFLNM4.TK-D5T3-4L16M1-SC6B ΦV = 790 ... 1140 lm (IF = 1000 mA) Q65115A0696 Pre-production
KW2 CFLNM4.TK-D5T3-4L25M2-SC6B ΦV = 790 ... 1140 lm (IF = 1000 mA) Q65115A2640 Pre-production
KW2 CFLNM4.TK-D5T3-4L35M3-SC6B ΦV = 790 ... 1140 lm (IF = 1000 mA) Q65115A0697 Pre-production
