OSRAM OSLON® Square, GW CSSRM1.BM

OSRAM OSLON® Square, GW CSSRM1.BM
×

Product features

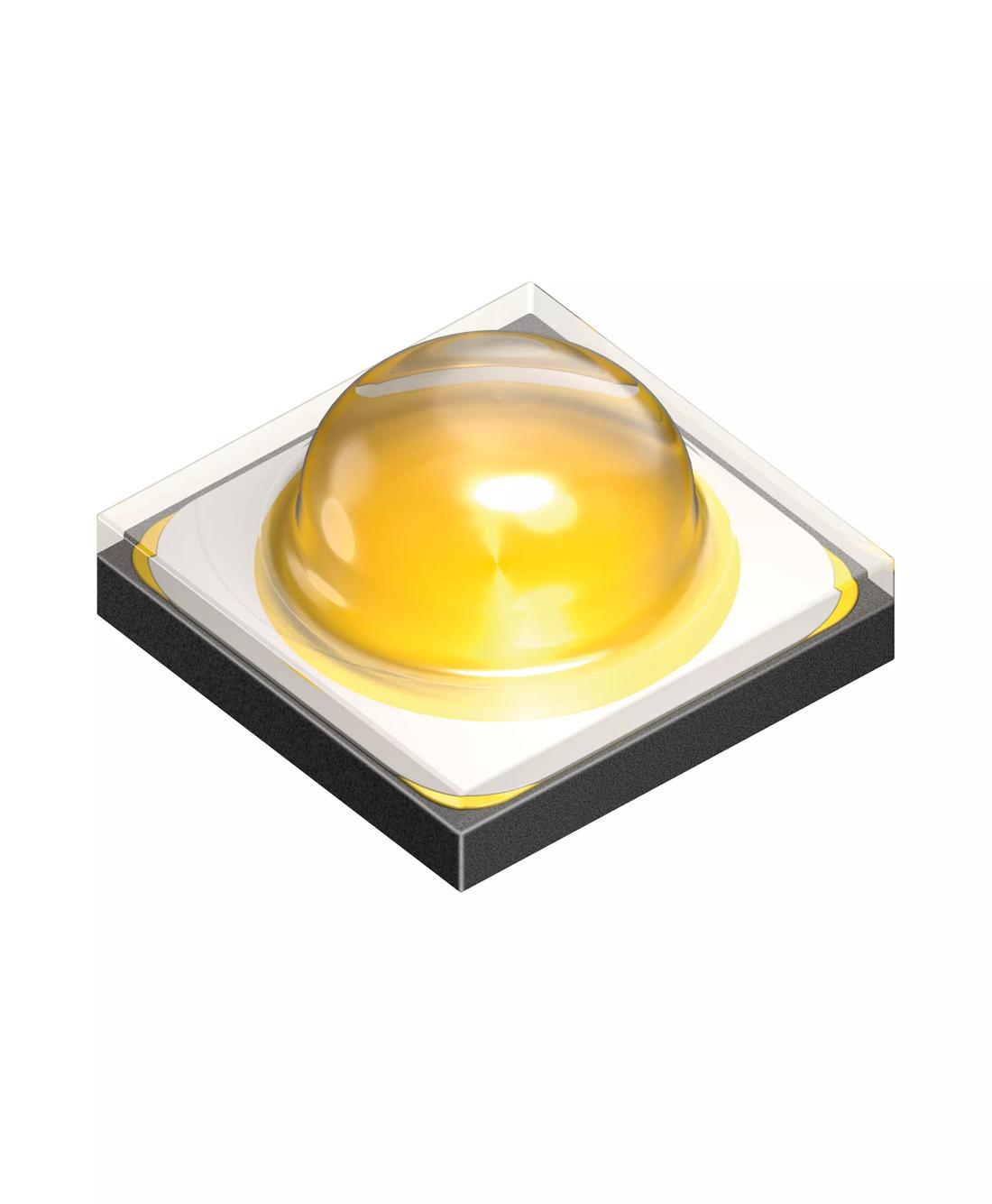

Higher performance. Lower thermal resistance. Extended range of driving conditions. This is the second generation OSLON Square.

Downloads

Datasheet

GW CSSRM1.BM

Datasheet / 1.3 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product Related / 1.7 MB

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

OSLON® (ceramic) package family — Details on the assembly and solder pad design

Product Related / 2.5 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Ceramic LEDs — Details on handling and processing

Processing and Handling / 2.2 MB

Cleaning of LEDs

Processing and Handling / 795.1 KB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

Dimming InGaN LEDs

Driving of LEDs / 992.7 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

Partial Flux — Measurement reliability of lensed LEDs

Measurement / 1.0 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
GW CSSRM1.BM-LUMQ-XX57-1 ΦV = 164 ... 210 lm, 3000 K (IF = 700 mA) Q65111A8018
GW CSSRM1.BM-MPMR-XX56-1 ΦV = 180 ... 224 lm, 3500 K (IF = 700 mA) Q65111A9210
GW CSSRM1.BM-LUMQ-A737-1 ΦV = 164 ... 210 lm, 3000 K (IF = 700 mA) Q65111A8020
GW CSSRM1.BM-LTMP-A838-1 ΦV = 150 ... 194 lm, 2700 K (IF = 700 mA) Q65111A8019
GW CSSRM1.BM-MQMS-XX55-1 ΦV = 194 ... 240 lm, 4000 K (IF = 700 mA) Q65111A9216
GW CSSRM1.BM-LTMP-XX58-1 ΦV = 150 ... 194 lm, 2700 K (IF = 700 mA) Q65111A8017
GW CSSRM1.BM-MQMS-A535-1 ΦV = 194 ... 240 lm, 4000 K (IF = 700 mA) Q65111A9189
GW CSSRM1.BM-MPMR-A636-1 ΦV = 180 ... 224 lm, 3500 K (IF = 700 mA) Q65111A9190
GW CSSRM1.BM-MPMR-A737-1 ΦV = 180 ... 224 lm, 3000 K (IF = 700 mA) Q65112A1024
GW CSSRM1.BM-MPMR-XX57-1 ΦV = 180 ... 224 lm, 3000 K (IF = 700 mA) Q65112A1289
GW CSSRM1.BM-LUMQ-XX58-1 ΦV = 164 ... 210 lm, 2700 K (IF = 700 mA) Q65111A9191
GW CSSRM1.BM-LUMQ-A838-1 ΦV = 164 ... 210 lm, 2700 K (IF = 700 mA) Q65111A9192

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
