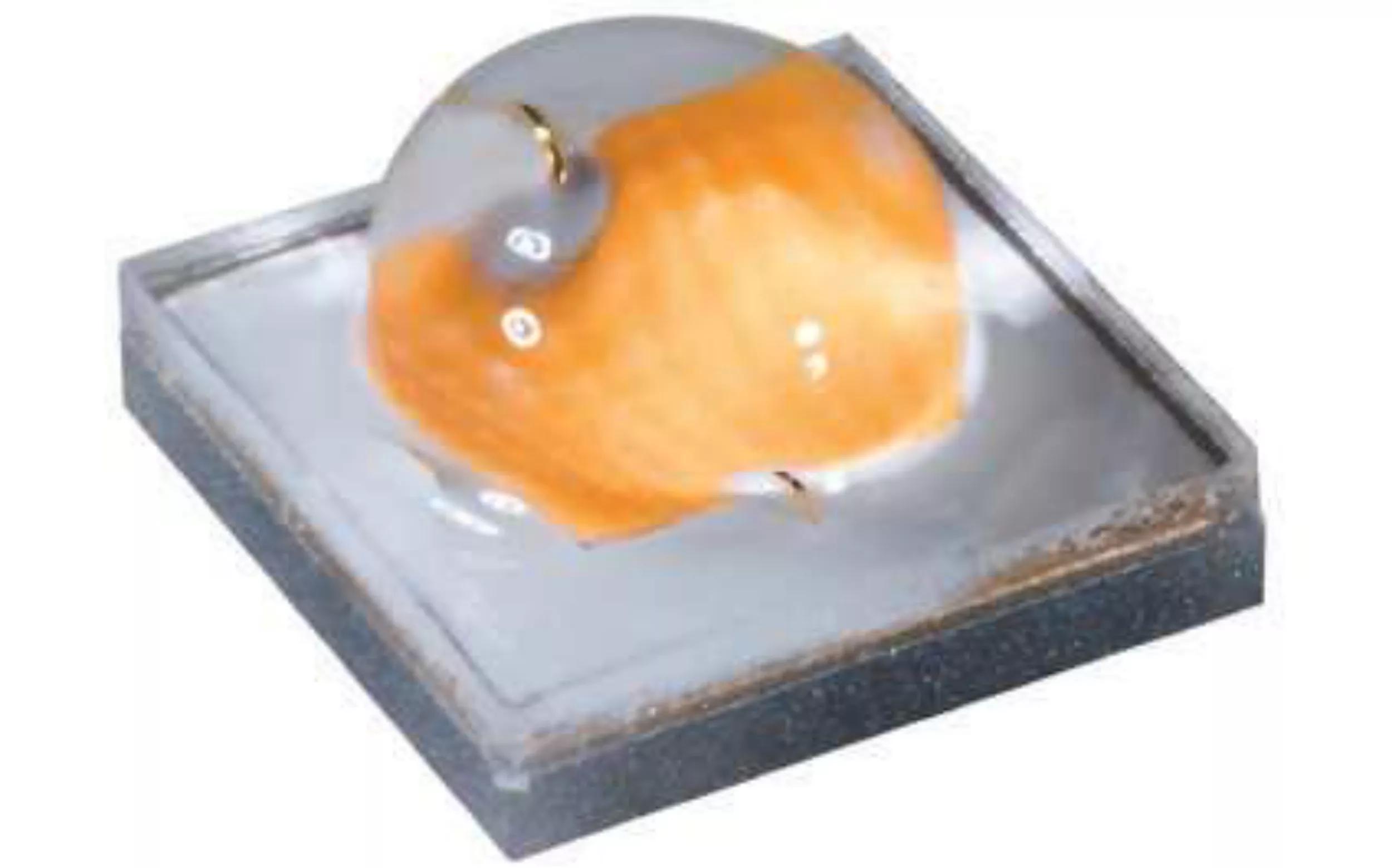

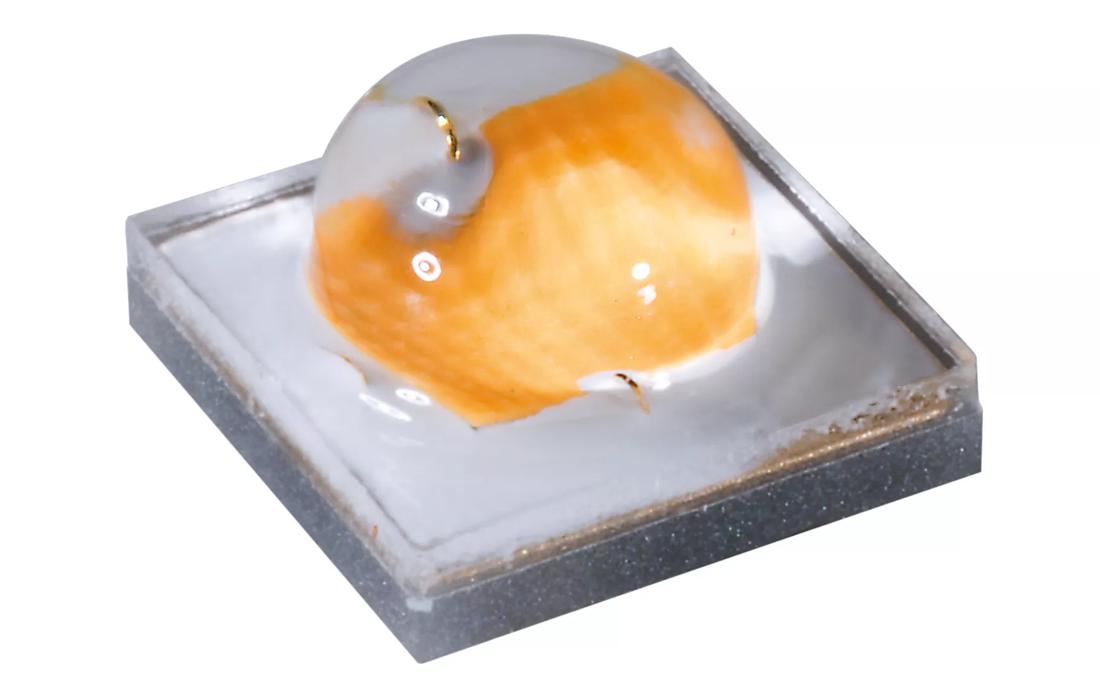

OSRAM OSLON® Square, LUW CQAR

Discontinued
×
Discontinued
×

Description

This most compact high-power LED (2 W class) allows dense clustering and simple circuit designs. Its extremely low thermal resistance helps to keep the efficiency remarkably high even when driven at high currents. High reliability. Long lifetime.

Details

Ordering codes

Product Type Description Order No. Availability
LUW CQAR-NPNR-HPHR-1 ΦV = 280 ... 359 lm, 6500 K (IF = 700 mA) Q65111A3107
LUW CQAR-MUNQ-HPJR-1 ΦV = 259 ... 330 lm, 6000 K (IF = 700 mA) Q65111A2538
LUW CQAR-MUNQ-JPJR-1 ΦV = 259 ... 330 lm, 5700 K (IF = 700 mA) Q65111A2739
LUW CQAR-MUNQ-HPHR-1 ΦV = 259 ... 330 lm, 6500 K (IF = 700 mA) Q65111A2736
LUW CQAR-NPNR-JPJR-1 ΦV = 280 ... 359 lm, 5700 K (IF = 700 mA) Q65111A3105
LUW CQAR-NPNR-HPJR-1 ΦV = 280 ... 359 lm, 6000 K (IF = 700 mA) Q65111A3106
LUW CQAR-NRNT-MMMW-1 ΦV = 330 ... 419 lm (IF = 700 mA) Q65112A1315
LUW CQAR-NQNS-MCML-1 ΦV = 304 ... 390 lm (IF = 700 mA) Q65111A3108
