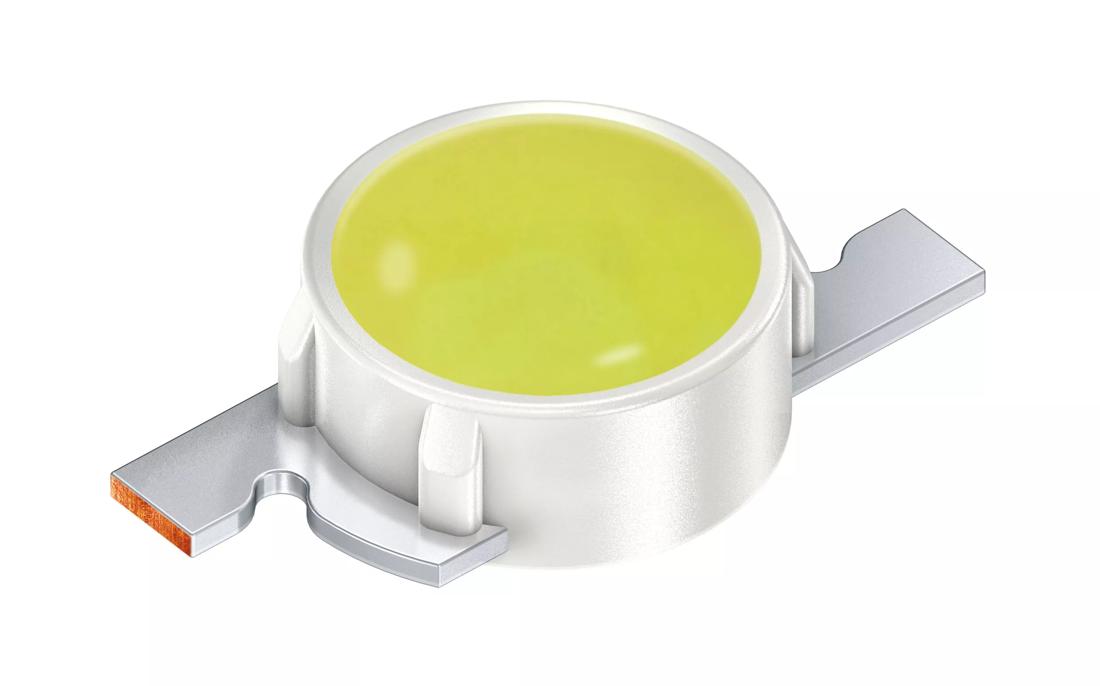

OSRAM PointLED™, LW P4SD

×

Description

With a diameter of just 2 mm, the PointLED is one of the smallest packages in its class and achieves high luminous efficacies. Due to its round and flat package, measuring only 0.775 mm high, it is ideal for application where space is a sensitive issue.
Datasheet
LW P4SD
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.0055 W
Low
Brightness
ΦV
0.478 lm
IV
0.157 cd
ΦE
1.64 mW
IE
0.538 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.4 mm
w
1.25 mm
h
0.83 mm

Ordering information

Product Type Description Ordering code Availability
LW P4SD-Q2S1-GK0NM0-S424 Iv = 90 ... 224 mcd, Mountingmethode:Reverse (IF = 2 mA) Q65113A6788 Full production
LW P4SD-Q2S1-GK0NM0-S424-F Iv = 90 ... 224 mcd, Mountingmethode:Top (IF = 2 mA) Q65113A6787 Full production
