Replacement Products

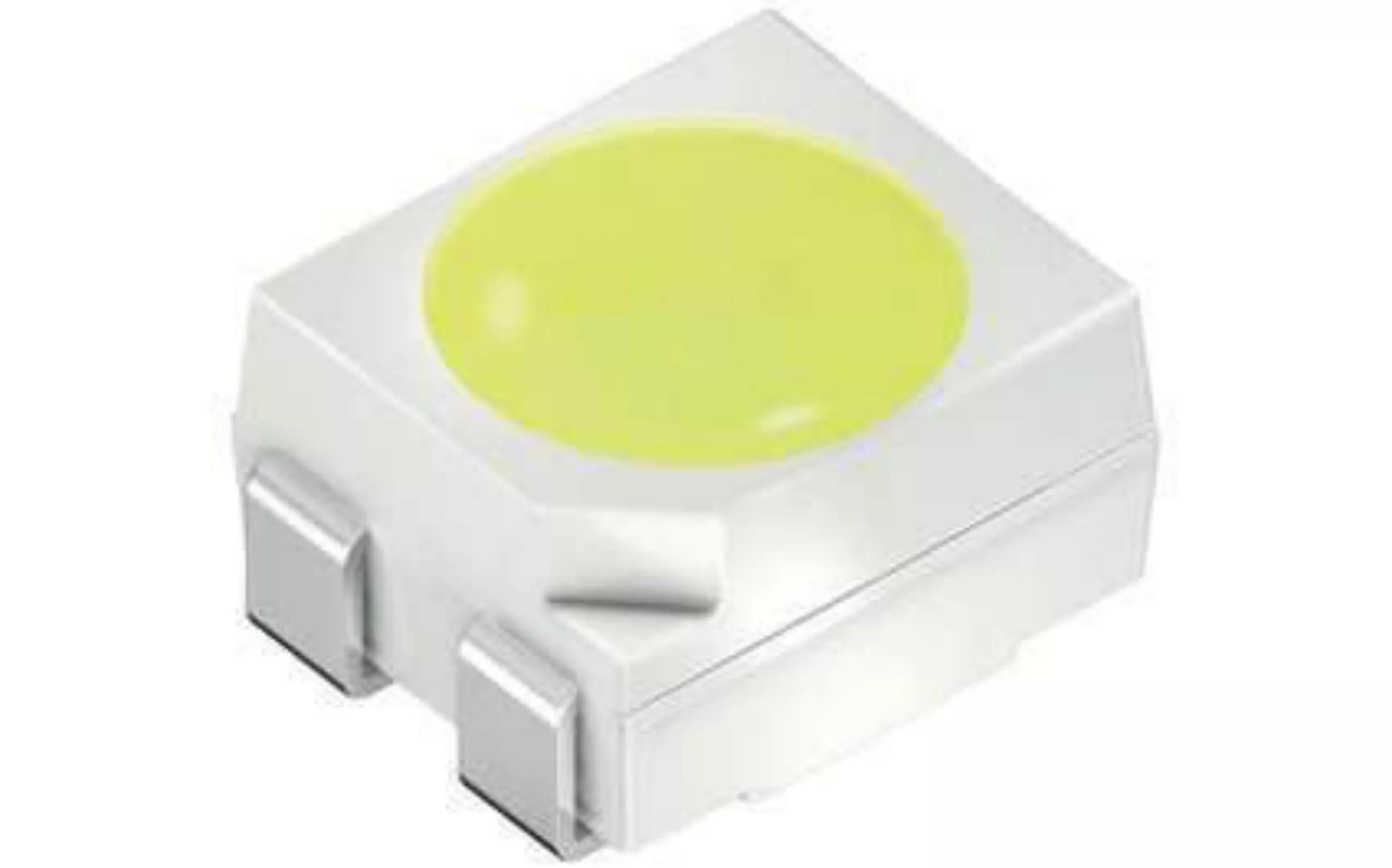

OSRAM Power TOPLED®, LW E6SG
PowerTOPLED, a powerful member of the TOPLED family. Thanks to their high luminous efficacy, the LEDs are ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.

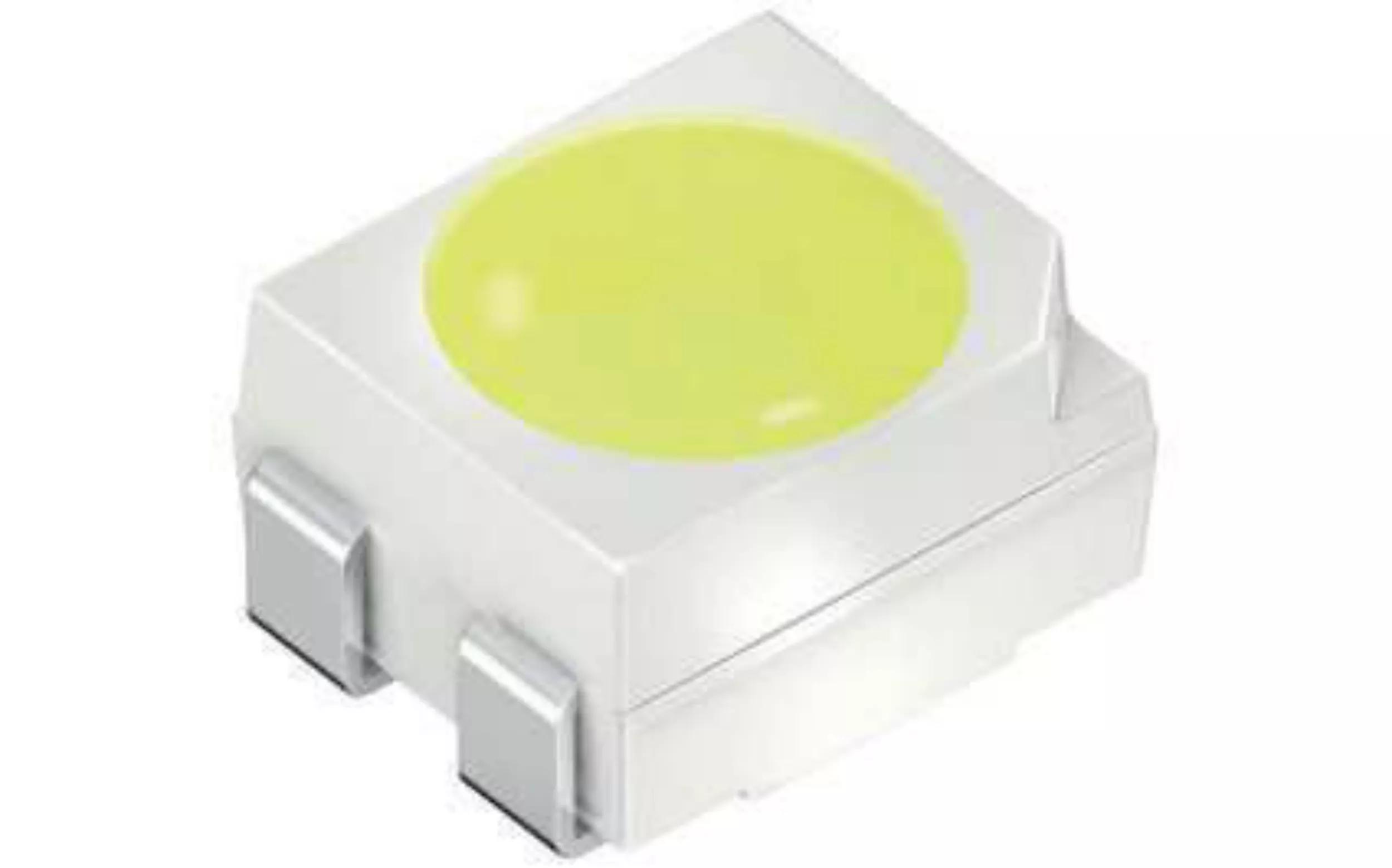

OSRAM Power TOPLED®, LW ETSG
PowerTOPLED, a powerful member of the TOPLED family. Thanks to their high luminous efficacy, the LEDs are ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
Details
Parameters
Color of emission
White
Electrical power
0.1
W
Low
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
110
°C
Dimension
l
3.2
mm
w
2.8
mm
h
1.9
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LW E6SC-U2AA-5K8L-1 | Iv = 560 ... 1400 mcd (IF = 30 mA) | Q65110A1157 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| LW E6SC-U1V1-5K8L-1 | Iv = 450 ... 900 mcd (IF = 30 mA) | Q65110A2598 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Application note
General information
General information
General information
General information
General information
General information
Handling recommendations
Handling recommendations
Handling recommendations
Soldering and processing
Soldering and processing
Soldering and processing
Soldering and processing
Thermal management
Thermal management
Thermal management
Thermal management
Electrical design
Electrical design
Electrical design
Electrical design
Images
Product selector
Find the right product.
More power TOPLED®
Established product family for automotive lighting.
