OSRAM SOLERIQ™ S 12, GW KAMJBT.CM

×

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KAMJBT.CM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
27.0 W
27.0 W
Ultra High
Ultra High
Brightness
ΦV
3000 lm
IV
1020 cd
ΦE
10400 mW
IE
3560 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
17.9 mm
w
17.9 mm
h
1.65 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW KAMJBT.CM-E6+E26-50S3+30S3 ● ΦV = 3325.0 ... 3830.0 lm (IF = 750 mA)
● ΦV = 2790.0 ... 3210.0 lm (IF = 750 mA), 5000 K 		Q65115A2513 Full production
GW KAMJBT.CM-E6+E5-40S3+27S3 ● ΦV = 3250.0 ... 3745.0 lm (IF□=□750□mA)
● ΦV = 2790.0 ... 3210.0 lm (IF□=□750□mA), 4000 K 		Q65113A7575 Full production
GW KAMJBT.CM-E7+E5-65S3+27S3 ● ΦV = 3325.0 ... 3830.0 lm (IF = 750 mA)
● ΦV = 2790.0 ... 3210.0 lm (IF = 750 mA), 6500 K 		Q65113A7570 Full production

Downloads

Datasheets
GW KAMJBT.CM · Datasheet · PDF · en_US

Application note
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

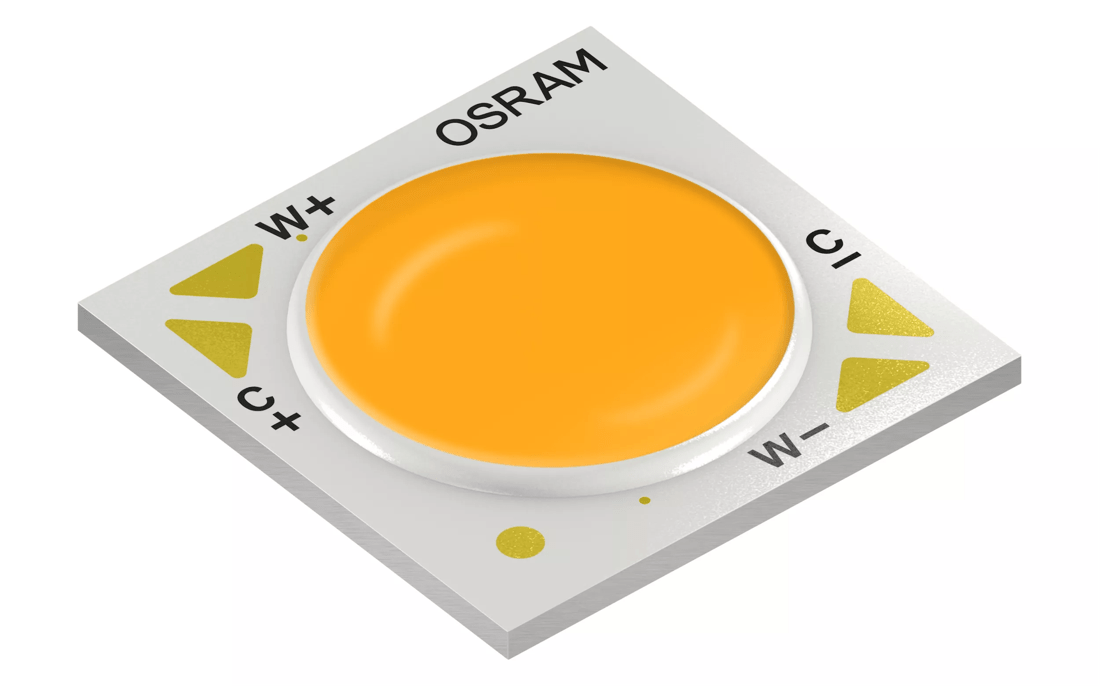

GW_KAMJBT-CM_42x26mm_cmyk · Images · TIF
