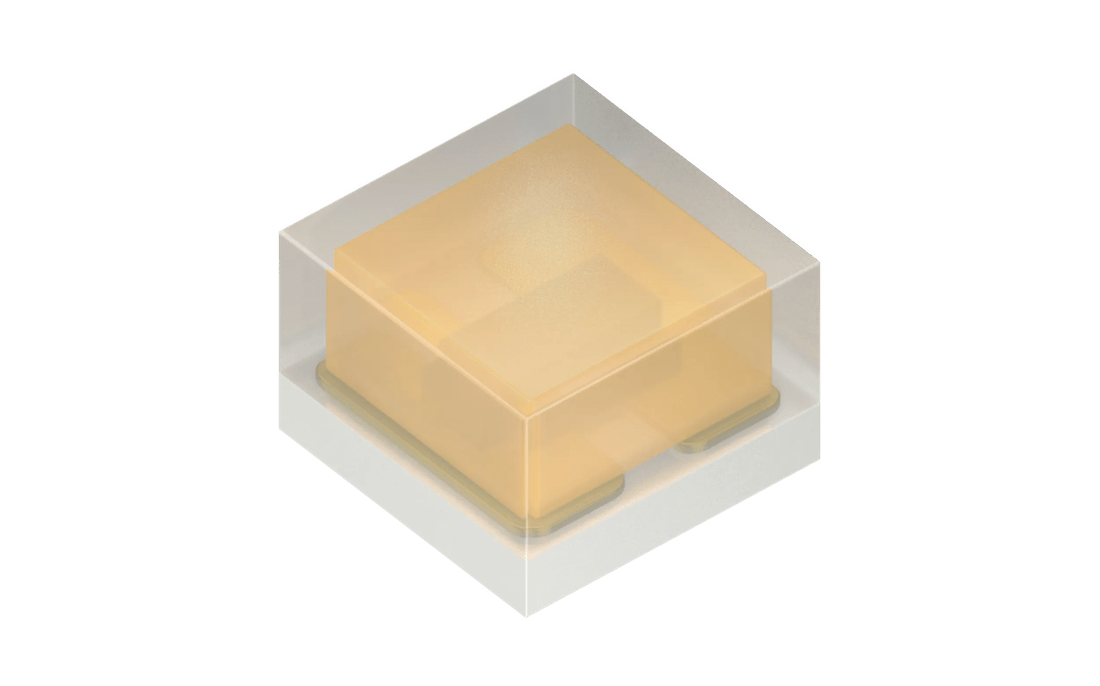

OSRAM SYNIOS™ E0808, KW EKUQ61.HD

New
×
New

Description

This compact and high optical efficiency LED is a wide lambertian radiant characteristic. This LED is designed for the use in thin and high resolution direct backlight applications as well as standard direct backlighting solutions. This LED has package level conversion that enables homogeneous color appearance, avoiding yellow halo effect. The spectral properties (529nm green peak) are optimized for high color gamut displays of 110% NTSC.
Datasheet
KW EKUQ61.HD
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Features

  • Pitch & OD
  • Efficacy
  • Radiation

Benefits

  • Wide Lambertian Radiation profile enables homogenous BLU with 2ndary optics
  • Compact package with thin OD, variable pitch size (5mm ~ 10mm)
  • Compatible for automotive display backlighting

Parameters

Color of emission
White
Electrical power
0.028 W
Low
Brightness
ΦV
3.15 lm
IV
0.759 cd
ΦE
13.3 mW
IE
3.22 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Device qualification
AEC-Q102

Ordering information
