OSRAM SYNIOS™ E0808, KW EKUQ61.KD

New
×
New

Description

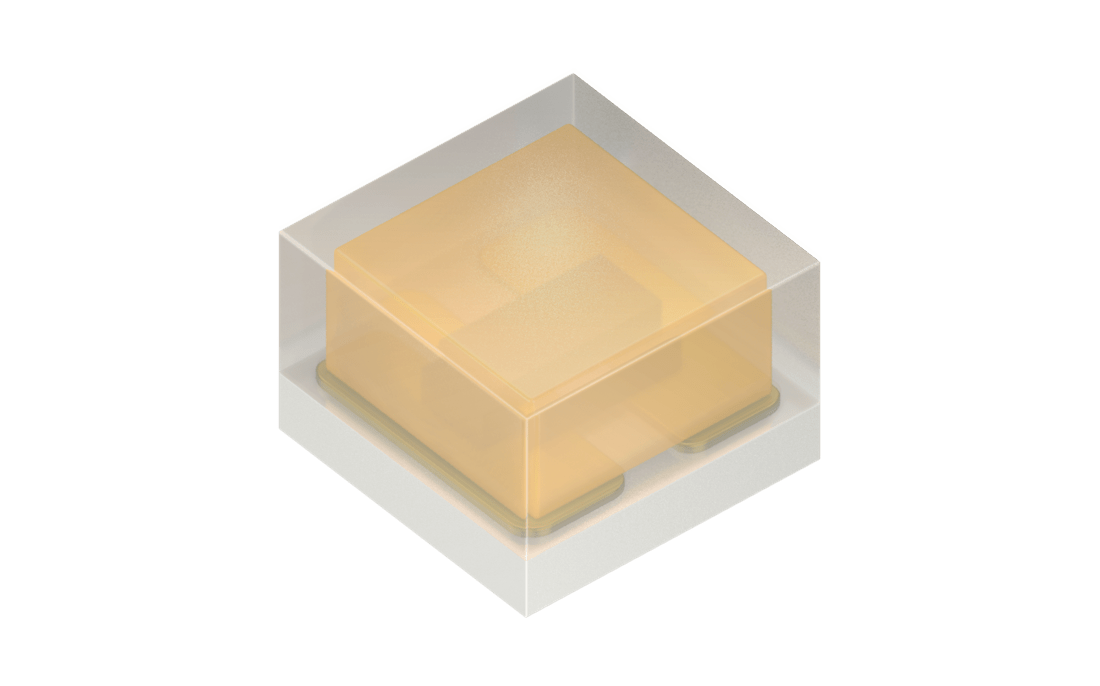

This compact and high optical efficiency LED is a wide lambertian radiant characteristic. This LED is designed for the use in thin and high resolution direct backlight applications as well as standard direct backlighting solutions. This LED has package level conversion that enables homogeneous color appearance, avoiding yellow halo effect.
Datasheet
KW EKUQ61.KD
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Features

  • Pitch & OD
  • Efficacy
  • Radiation

Benefits

  • Wide Lambertian Radiation profile enables homogenous BLU with 2ndary optics
  • Compact package with thin OD, variable pitch size (5mm ~ 10mm)
  • Compatible for automotive display backlighting

Parameters

Color of emission
White
Electrical power
0.028 W
Low
Brightness
ΦV
3.77 lm
IV
0.878 cd
ΦE
14.2 mW
IE
3.3 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW EKUQ61.KD-CQCU-DG25DS49-HQ-N4W4 ΦV = 3.04 ... 4.50 lm (IF = 5 mA) Q65113A8740 Pre-production

Downloads

Datasheets
KW EKUQ61.KD · Datasheet · PDF · en_US

Application note
SYNIOS™ E0808 - Details on handling and assembly · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
