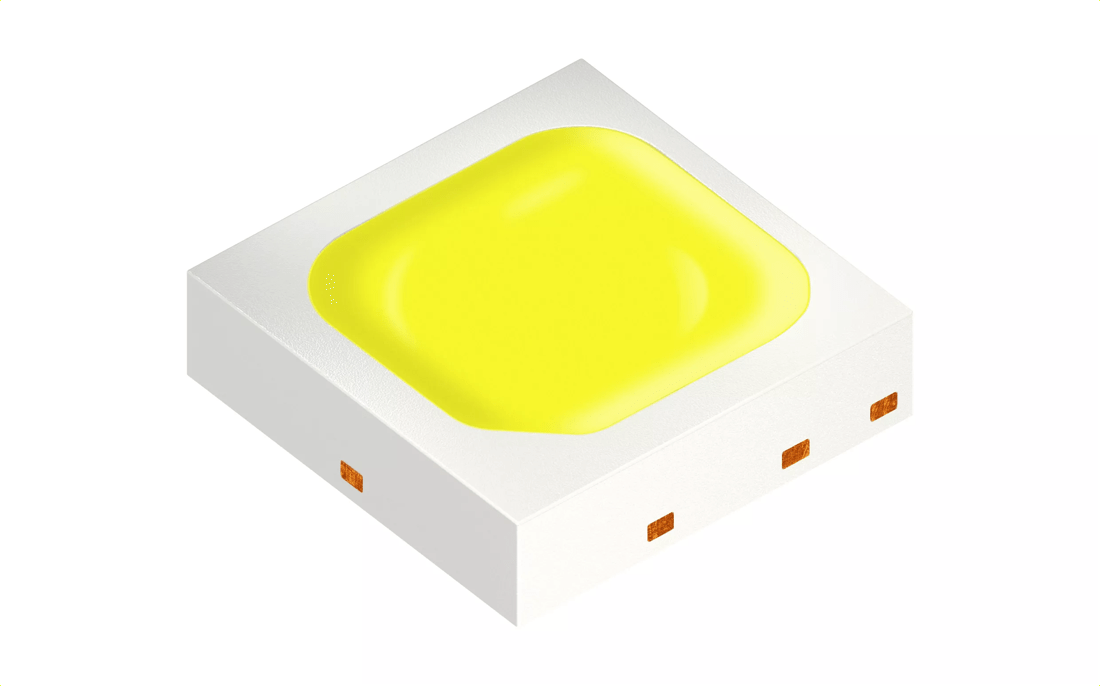

OSRAM SYNIOS® S2222, KW DDLM31.EH

OSRAM SYNIOS® S2222, KW DDLM31.EH
×

Description

This square package with just 2mm outline combines best performance with a small footprint. A centralized chip allows an easy integration in optical systems. The availability of different main colors and white points gives highest flexibility in various application areas.
Datasheet
KW DDLM31.EH
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
80
Electrical power
0.44 W
Mid
Brightness
ΦV
62.5 lm
IV
20.9 cd
ΦE
203 mW
IE
68 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
KW DDLM31.EH-5J6K-A636-W4A4 ΦV = 45 ... 90 lm, 3500 K (IF = 140 mA) Q65112A5710
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
KW DDLM31.EH-5J6K-A333-W4A4 ΦV = 45 ... 90 lm, 5000 K (IF = 140 mA) Q65112A5707
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
RS
Buy now
KW DDLM31.EH-5J6K-A232-W4A4 ΦV = 45 ... 90 lm, 5700 K (IF = 140 mA) Q65112A5706
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
KW DDLM31.EH-5J6K-A535-W4A4 ΦV = 45 ... 90 lm, 4000 K (IF = 140 mA) Q65112A5709
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
KW DDLM31.EH-5J6K-A737-W4A4 ΦV = 45 ... 90 lm, 3000 K (IF = 140 mA) Q65112A5711
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
KW DDLM31.EH-5J6K-A434-W4A4 ΦV = 45 ... 90 lm, 4500 K (IF = 140 mA) Q65112A5708
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now
KW DDLM31.EH-5J6K-A131-W4A4 ΦV = 45 ... 90 lm, 6500 K (IF = 140 mA) Q65112A5718
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
