OSRAM TOPLED® E3014, KW DCLMS2.EC

OSRAM TOPLED® E3014, KW DCLMS2.EC

Description

The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is a very small LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.

Contact us Support

Details

Parameters

Color of emission

White

CRI

80

Electrical power

0.054 W

Low

Brightness

Φ_V

11.3 lm

I_V

3.65 cd

Φ_E

36.4 mW

I_E

11.8 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

85 °C

Dimension

l

3.0 mm

w

1.4 mm

h

0.7 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Automotive & mobility Static signaling Dynamic signaling Display backlighting

Ordering codes

Downloads

Datasheets

KW DCLMS2.EC

Datasheet

DE

JP

Application note

Long-term availability management

General information

DE

CN

JP

Preventing LED failures caused by corrosive materials

General information

DE

CN

JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information

DE

CN

JP

Details on photobiological safety of LED light sources

General information

DE

CN

JP

Importing rayfiles and ray-measurement files of LEDs

General information

DE

CN

JP

Chemical compatibility of LEDs

General information

DE

CN

JP

Measurement, calibration and measurement uncertainty of LEDs

General information

DE

JP

Handling of silicon resin LEDs

Handling recommendations

DE

CN

JP

ESD protection while handling LEDs

Handling recommendations

DE

CN

JP

Dry pack information

Handling recommendations

DE

CN

JP

Fundamentals of LED handling

Handling recommendations

DE

CN

JP

Manual lead-free soldering of LEDs

Soldering and processing

DE

CN

JP

Measuring of the temperature profile during the reflow solder process

Soldering and processing

DE

CN

JP

Processing of SMD LEDs

Soldering and processing

DE

CN

JP

Recommended pick-and-place tools of LEDs

Soldering and processing

DE

CN

JP

Further details on lead free reflow soldering of LEDs

Soldering and processing

JP

PCB technologies for LED applications

Thermal management

DE

CN

JP

Package related thermal resistance of LEDs

Thermal management

DE

CN

JP

LED solder point temperature measurement with thermocouples

Thermal management

DE

CN

JP

Thermal management of LED light sources

Thermal management

DE

CN

JP

Determination of resistances for brightness compensation

Electrical design

DE

CN

JP

LED driving technology for long term flexibility

Electrical design

DE

CN

JP

Comparison of simple LED circuits for low power LEDs

Electrical design

DE

CN

JP

Dimming LEDs with respect to grouping current

Electrical design

DE

CN

JP

The basic principles of Electrical Overstress (EOS)

Electrical design

DE

CN

JP

Resources

CAD Data

CAD Data

Electrical Simulation

Electrical Simulation

Optical Simulation

Optical Simulation

Images

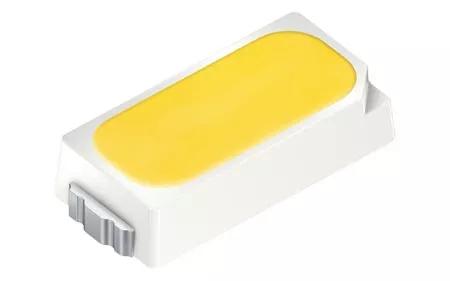

DURIS E3 - GW JCLPS1.xM
