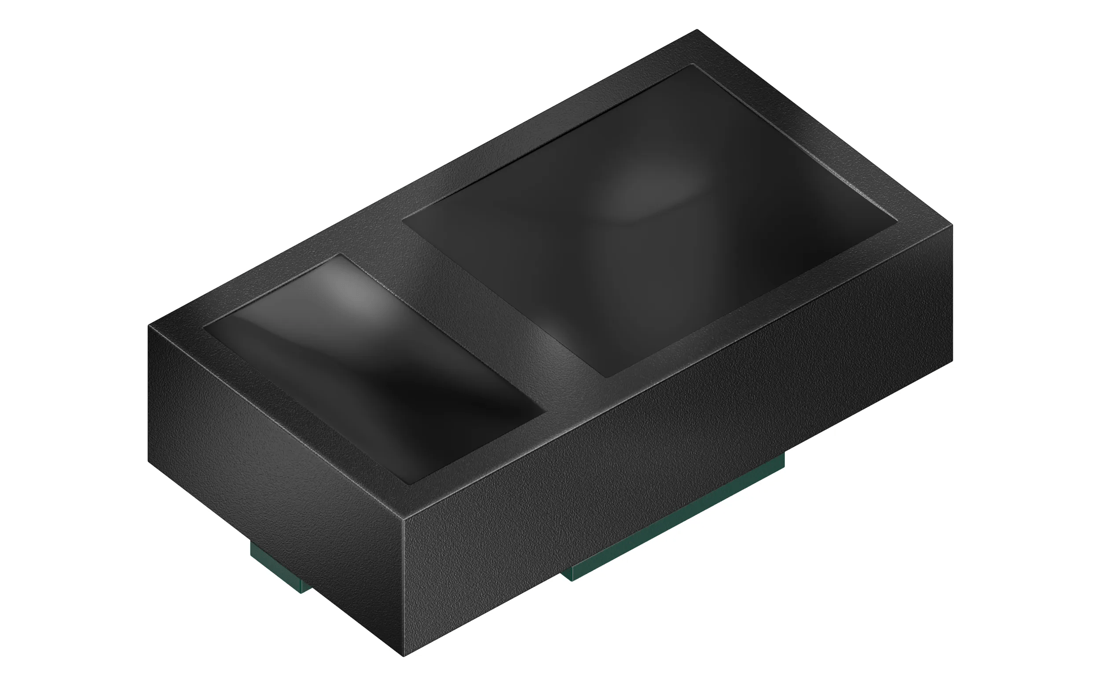

OSRAM Optical Force, SFH 7061

Description

Optical Force and Proximity Sensing Ultra-slim and small Optical Frontend (OFE) for Optical Force Sensing (OFS). The device integrates an infrared emitter (940 nm IR LED), a photo diode (sensitive to 940nm), as well as a light barrier to block optical crosstalk in a tiny 1.8 x 1.0 x 0.5mm package.

Datasheet

Select & order

Details

Parameters

Color of emission

Infrared (>800 nm)

Spectral range of sensitivity typ.

λ_10% min.

820 nm

λ_10% max.

1100 nm

Radiant sensitive area

0.121 mm²

Dimension

1.8 mm

1.0 mm

0.5 mm

Operating temperature

T_op min.

-40 °C

T_op max.

85 °C

Application fields

Mobile & wearables Eye, face and hand tracking

Ordering information

Product Type	Description	Ordering code	Availability
SFH 7061	IR Emitter: I_e□=□2□mW/sr (typ.) (I_F□=□20□mA) Photodiode: I_P□=□100□nA, (typ.) (E_e□=□0.10□mW/cm², λ□=□940 nm)	Q65115A2090	Pre-production
