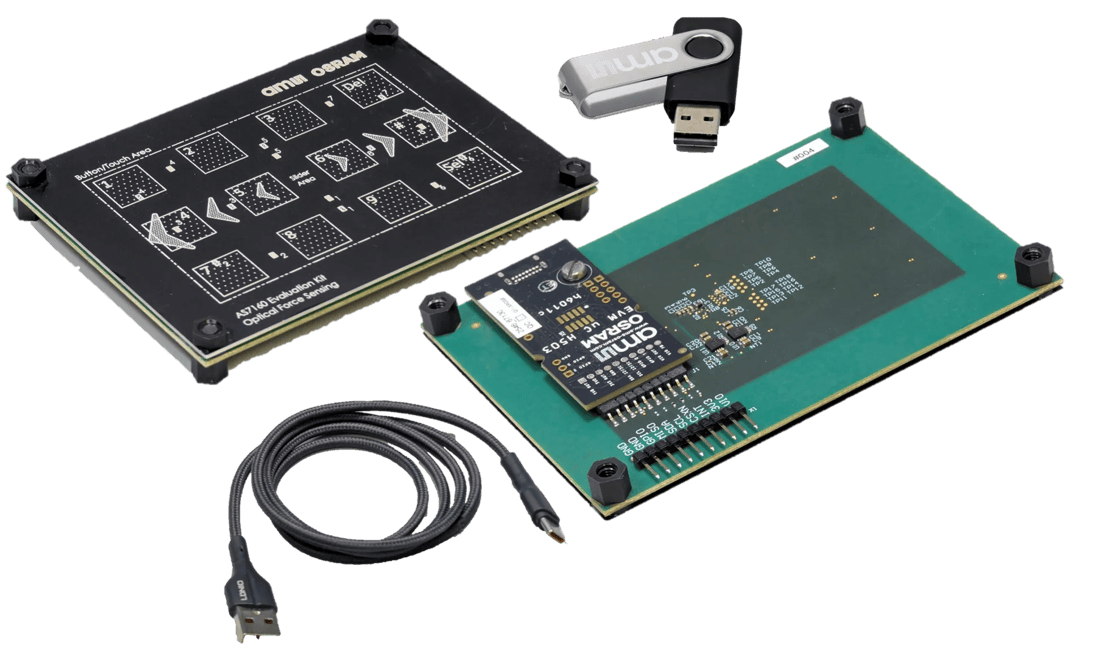

Details
Features
- 20-bit true current input analog to digital converter
- High Signal to Noise ratio (90dB)
- On chip averaging support
- State machine controlled automatic measurement range reconfiguration
- Up to 8 LED output pins and 8 photodiode input pins.
- Small Wafer-Level-Chip-Scale-Package (WLCSP)
- A hardware sequencer to offload the processor with an adjustable LED driver with current control.
- Automatically controlled standby mode function
- Integrated Advanced Automatic Offset Compensation function
Benefits
- Highest measurement resolution OFS (1µm)
- Simultaneous proximity and force measurement
- Highly flexible LED/photodiode configuration
- Long operating time
- Low power operating mode
- Not sensitive to ambient light
Parameters
Channels
input
8
output
8
Package
WLCSP
Package dimension
l
2.82
mm
w
2.55
mm
h
0.4
mm
Supply voltage
max.
1.98
V
Interface
input
I²C slave
output
I²C slave
Operating ambient temperature
min.
-30
°C
max.
85
°C
SNR
120
dB
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| AS7160-BWLx WLP LF T&R | AS7160-BWLx WLP LF T&R | Q65115A0138 | Full production |
