OSRAM Optical Force, SFH 7065

New
×
New

Description

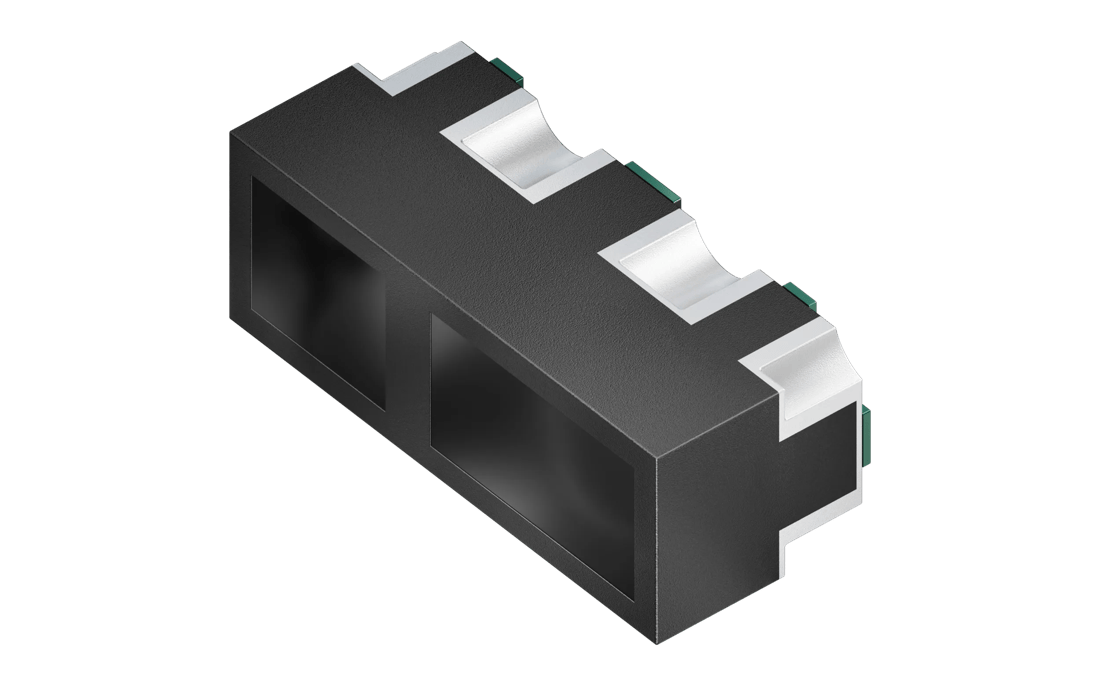

Optical Force and Proximity Sensing. Ultrasmall side-looking Optical Frontend (OFE) for Optical Force Sensing (OFS). The device integrates an infrared emitter (940 nm IR LED), a photo diode (sensitive to 940nm), as well as a light barrier to block optical crosstalk in a tiny 1.9 x 0.7 x 0.8mm package.
Datasheet
SFH 7065
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Spectral range of sensitivity typ.
λ10% min.
400 nm
λ10% max.
1100 nm
Radiant sensitive area
A
0.099 mm²
Dimension
l
1.9 mm
w
0.8 mm
h
0.7 mm
Operating temperature
Top min.
-40 °C
Top max.
85 °C

Ordering information

Product Type Description Ordering code Availability
SFH 7065 Ie = N/A (IF = 20 mA) Q65115A4196 Pre-production

Downloads

Datasheets
SFH 7065 · Datasheet · PDF · en_US

Application note
Optical force sensing · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US

Images
SFH 7065 · Images · TIF
