Details
Parameters
Photocurrent
50.0
µA
Fall time
tf
0.02
µs
Rise time
tf
0.02
µs
Spectral range of sensitivity typ.
λ10%
min.
730
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
7.02
mm²
Beam angle
∢
120
°
Dimension
l
5.15
mm
w
3.85
mm
h
2.05
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
BPW 34 FA | IP = ≥ 44 µA, (IP=50 µA typ.) (Ee=1 mW/cm²) | Q62702P1129 |
Downloads
For software click here/for further documents visit our
download center
Datasheets
BPW 34 FA
Datasheet
Application note
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

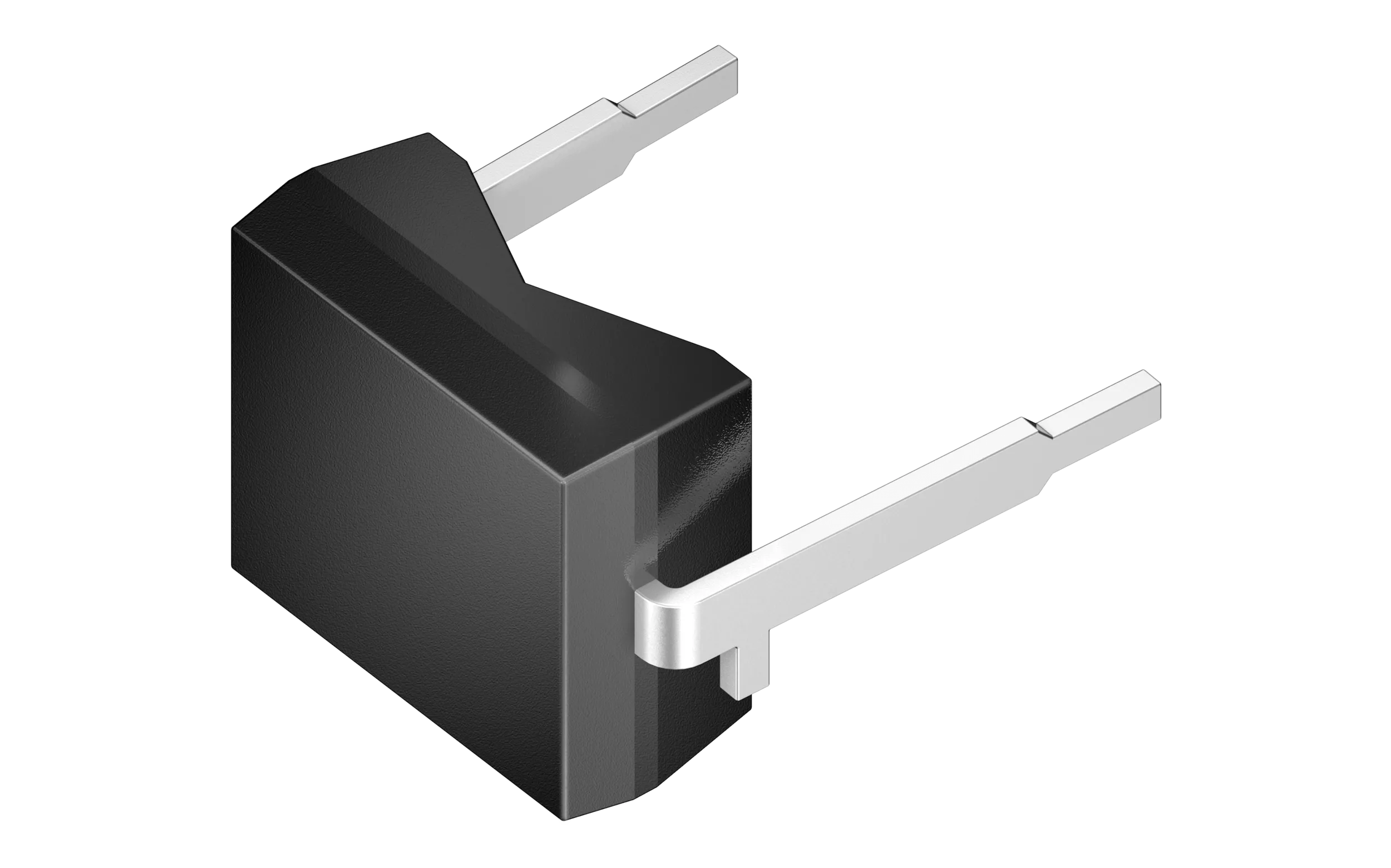

BPW34FA_photo
