Details
Parameters
Photocurrent
9.5
µA
Fall time
tf
0.005
µs
Rise time
tf
0.005
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
1.0
mm²
Beam angle
∢
150
°
Dimension
l
5.7
mm
w
5.7
mm
h
4.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

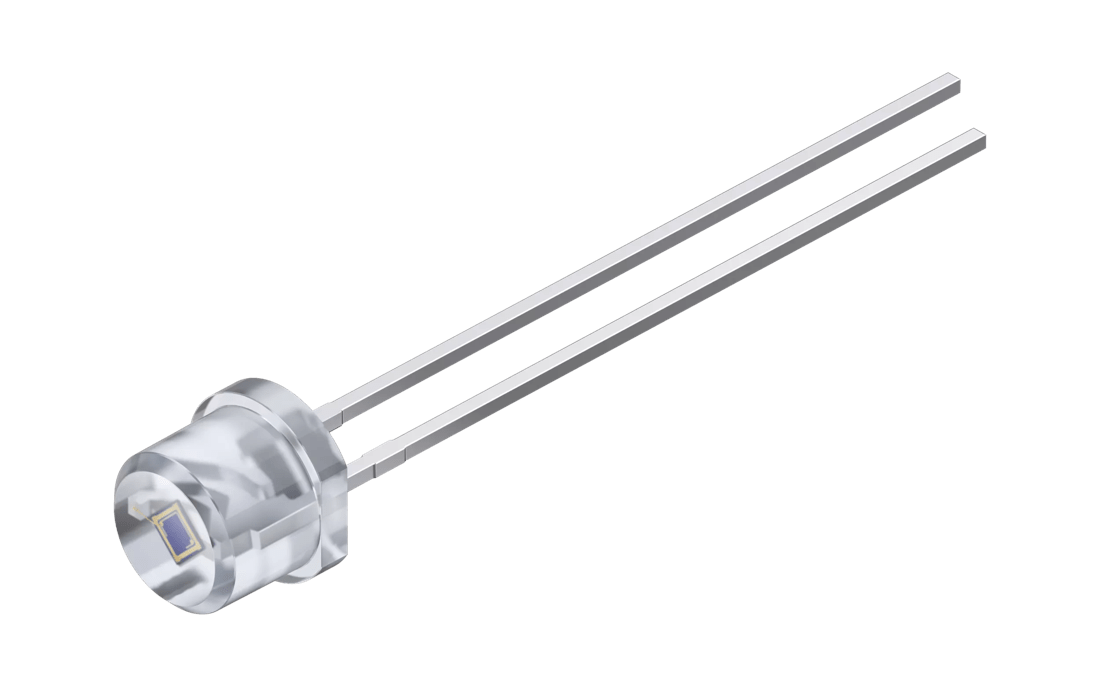

| SFH 203 P | IP = ≥ 5.5 µA, (IP=9.5 µA typ.) (Ev=1000 lx) | Q62702P0942 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
