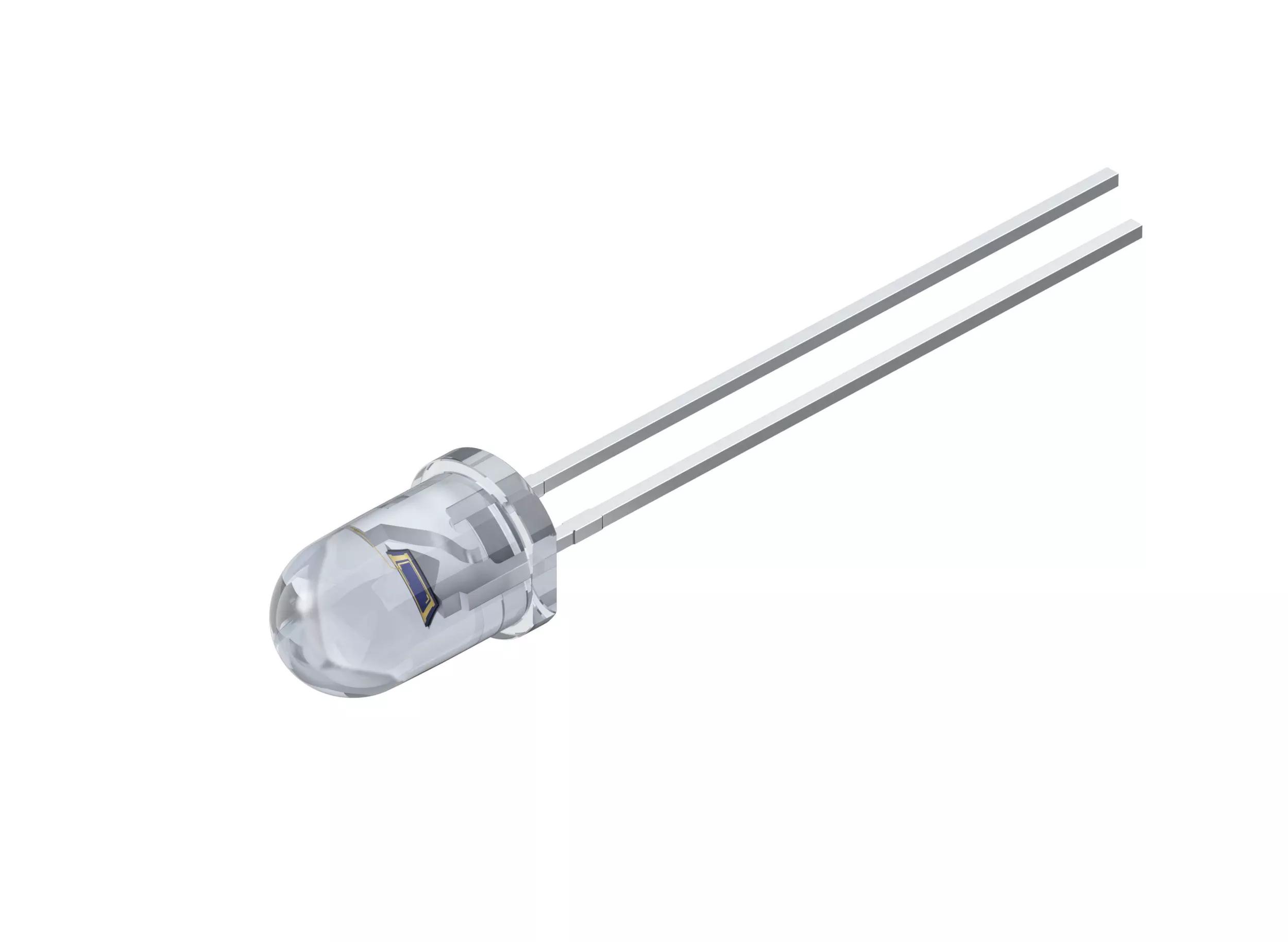

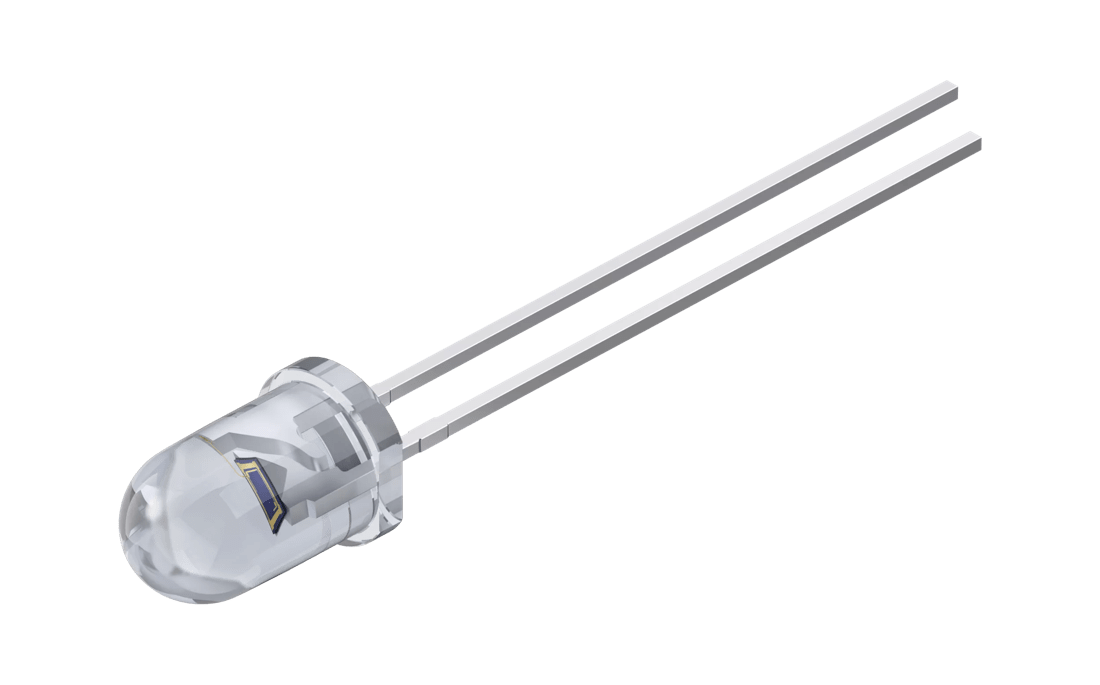

OSRAM Radial T1 3/4, SFH 203

OSRAM Radial T1 3/4, SFH 203
OSRAM Radial T1 3/4, SFH 203
OSRAM Radial T1 3/4, SFH 203
×

Description

Silicon PIN Photodiode
Datasheet
SFH 203
English
Download
Select & order
Contact us Support

Details

Parameters

Photocurrent
80.0 µA
Fall time
tf
0.005 µs
Rise time
tf
0.005 µs
Spectral range of sensitivity typ.
λ10% min.
400 nm
λ10% max.
1100 nm
Radiant sensitive area
A
1.0 mm²
Beam angle
∢
40 °
Dimension
l
5.7 mm
w
5.7 mm
h
8.6 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 203 IP = ≥ 55 µA, (IP=80 µA typ.) (Ev=1000 lx) Q62702P0955
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
