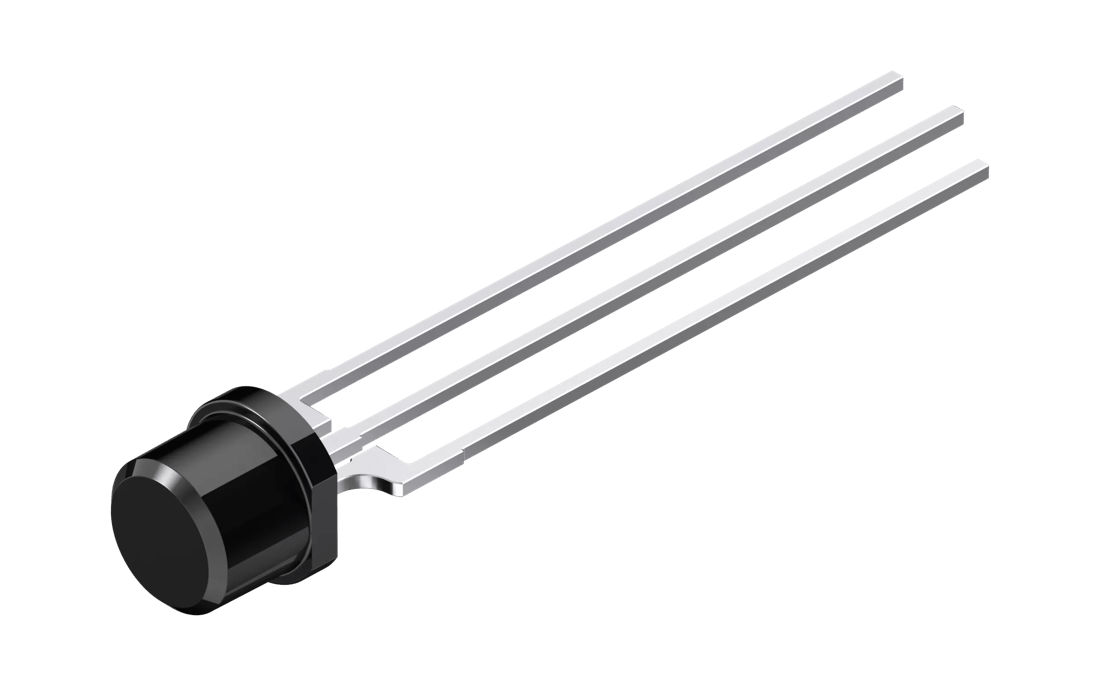

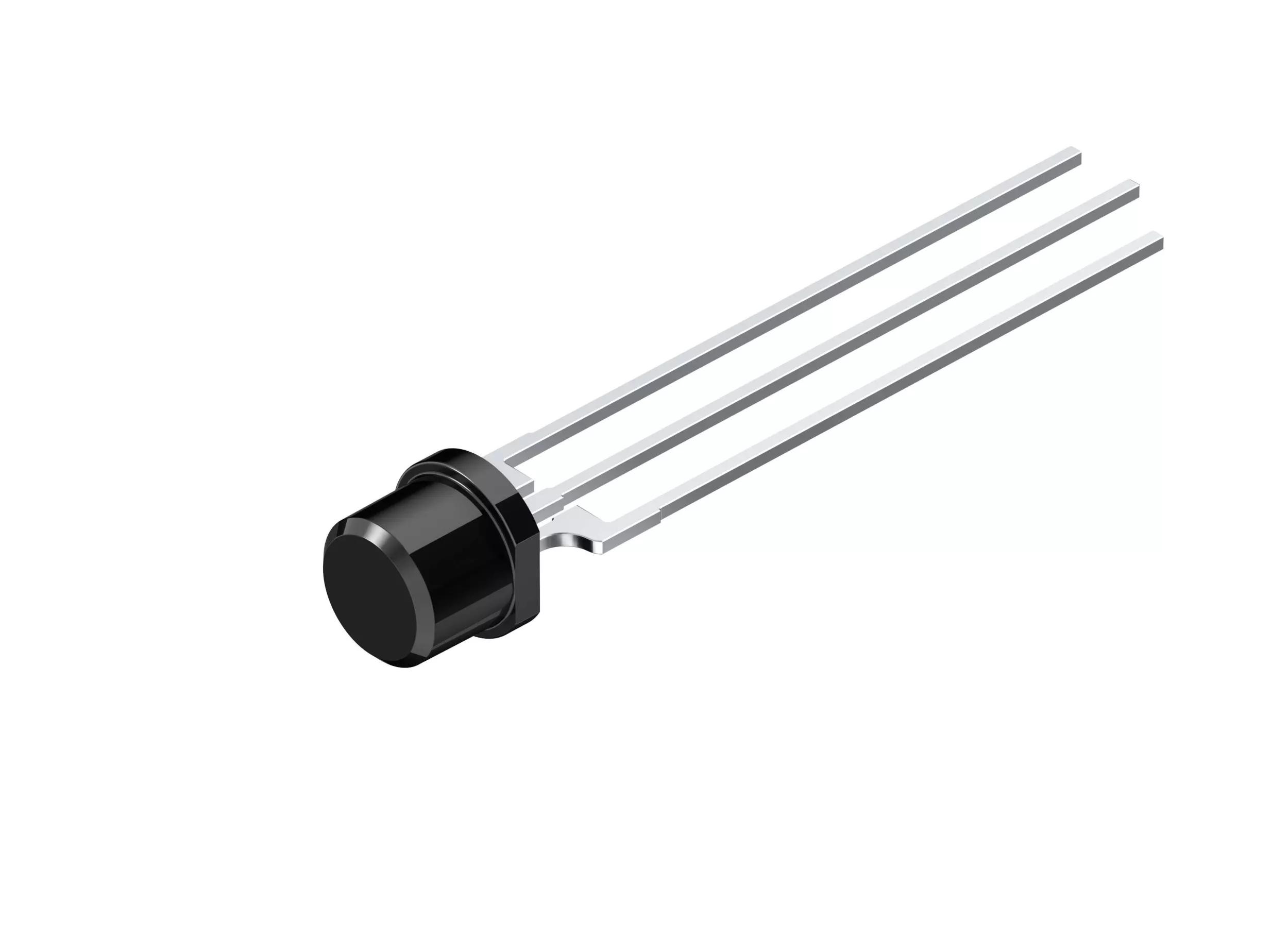

Details
Parameters
Photocurrent
2.7
µA
Fall time
tf
2.2
µs
Rise time
tf
2.2
µs
Spectral range of sensitivity typ.
λ10%
min.
740
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.31
mm²
Beam angle
∢
140
°
Dimension
l
5.7
mm
w
5.4
mm
h
4.4
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 2504 AN23 | IP = ≥ 2.1 µA, (IP=2.7 µA typ.) (Ee=1 mW/cm²) | Q65110A3986 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
