Details
Parameters
Photocurrent
38.0
µA
Fall time
tf
1.0
µs
Rise time
tf
1.0
µs
Spectral range of sensitivity typ.
λ10%
min.
380
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.31
mm²
Beam angle
∢
30
°
Dimension
l
3.8
mm
w
3.8
mm
h
4.85
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

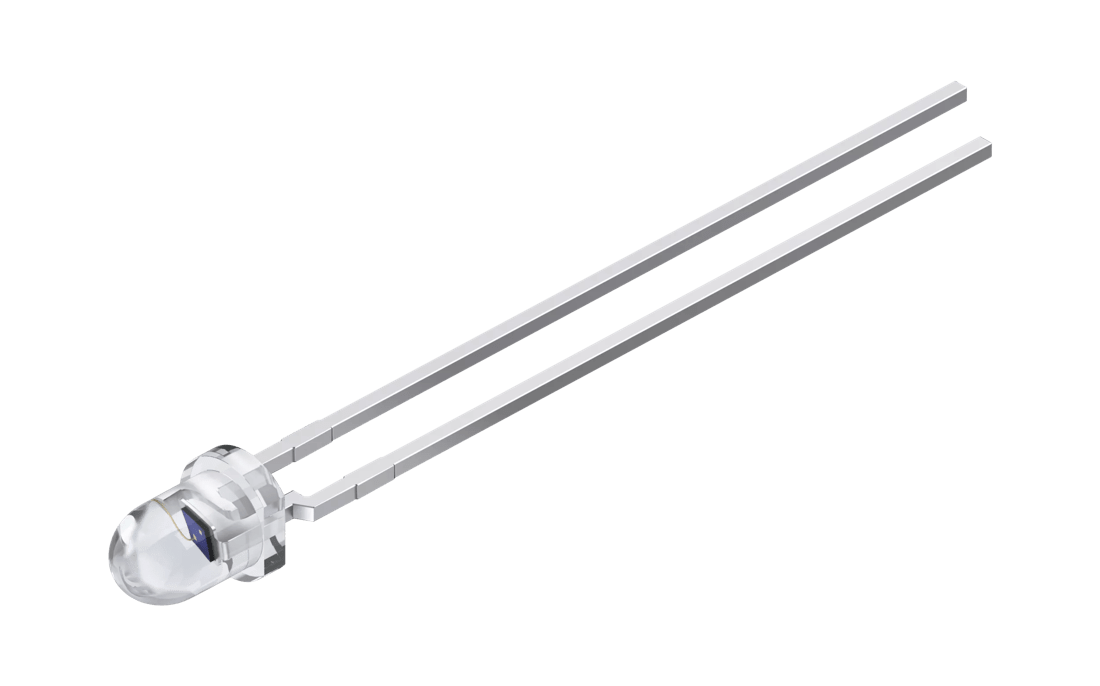

| SFH 229 | IP = ≥ 20 µA, (IP=38 µA typ.) (Ev=1000 lx) | Q62702P0215 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
