Details
Parameters
Photocurrent
7.3
µA
Fall time
tf
0.09
µs
Rise time
tf
0.09
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
690
nm
Radiant sensitive area
A
7.02
mm²
Beam angle
∢
120
°
Dimension
l
5.09
mm
w
4.0
mm
h
0.85
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|

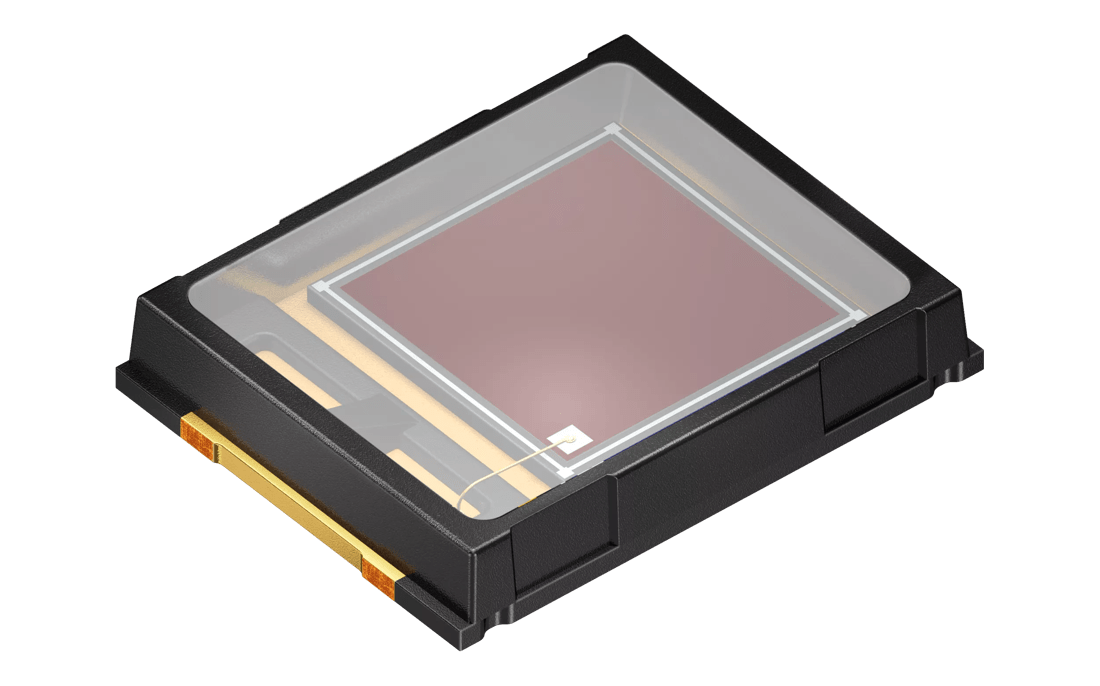

| SFH 2240 | IP = ≥ 6.6 µA, (IP=7.3 µA typ.) (Ev=1000 lx) | Q65112A0060 | Full production |
