Details
Parameters
Photocurrent
480.0
µA
Fall time
tf
7.0
µs
Rise time
tf
7.0
µs
Spectral range of sensitivity typ.
λ10%
min.
770
nm
λ10%
max.
1090
nm
Radiant sensitive area
A
0.04
mm²
Beam angle
∢
26
°
Dimension
l
3.2
mm
w
2.51
mm
h
1.6
mm
Operating temperature
Top
min.
-25
°C
Top
max.
85
°C
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
SFH 3015 FA | IPCE = 180 ... 710 µA, (IPCE=480 µA typ.) (Ee=0.10000000000000001 mW/cm²) | Q65110A9730 |
Downloads
For software click here/for further documents visit our
download center
Application note
Emitters and detectors for infrared (IR) touchscreens
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Determination of resistances for brightness compensation
Electrical design
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

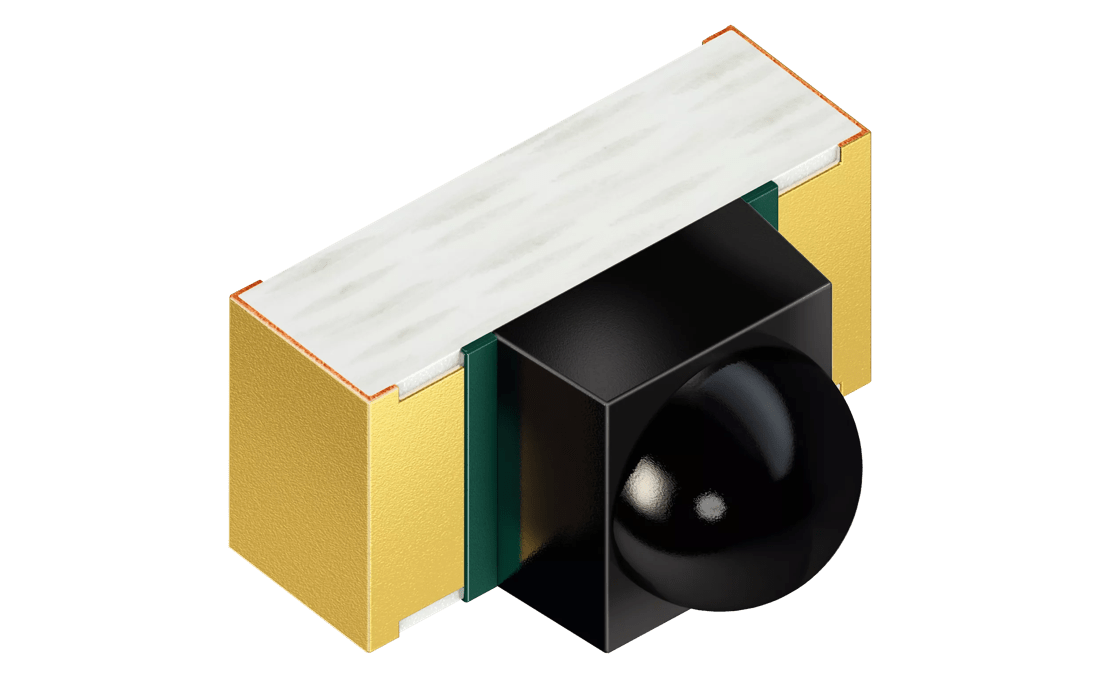

SFH3015FA_photo
