Details
Parameters
Photocurrent
2700.0
µA
Fall time
tf
9.0
µs
Rise time
tf
7.0
µs
Spectral range of sensitivity typ.
λ10%
min.
850
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.11
mm²
Beam angle
∢
28
°
Dimension
l
3.0
mm
w
2.9
mm
h
4.0
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
SFH 3100 F-2/3/4 | IPCE = 630 ... 3200 µA (Ee=0.50 mW/cm²) | Q62702P5475 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
SFH 3100 F | IPCE = 400 ... 5000 µA, (IPCE=2700 µA typ.) (Ee=0.50 mW/cm²) | Q62702P5073 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For software click here/for further documents visit our
download center
Datasheets
SFH 3100 F
Datasheet
Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

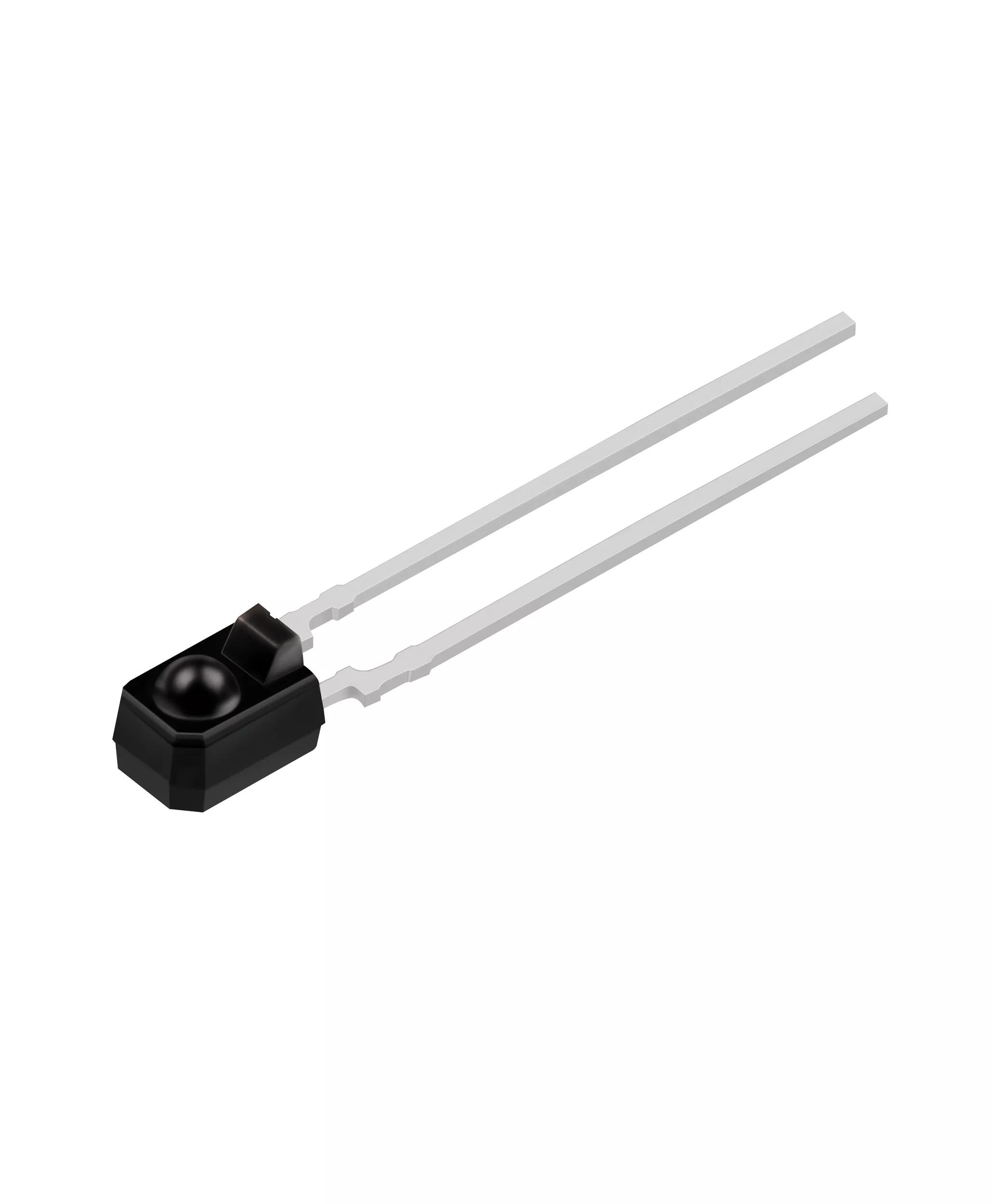

SFH3100F_photo
