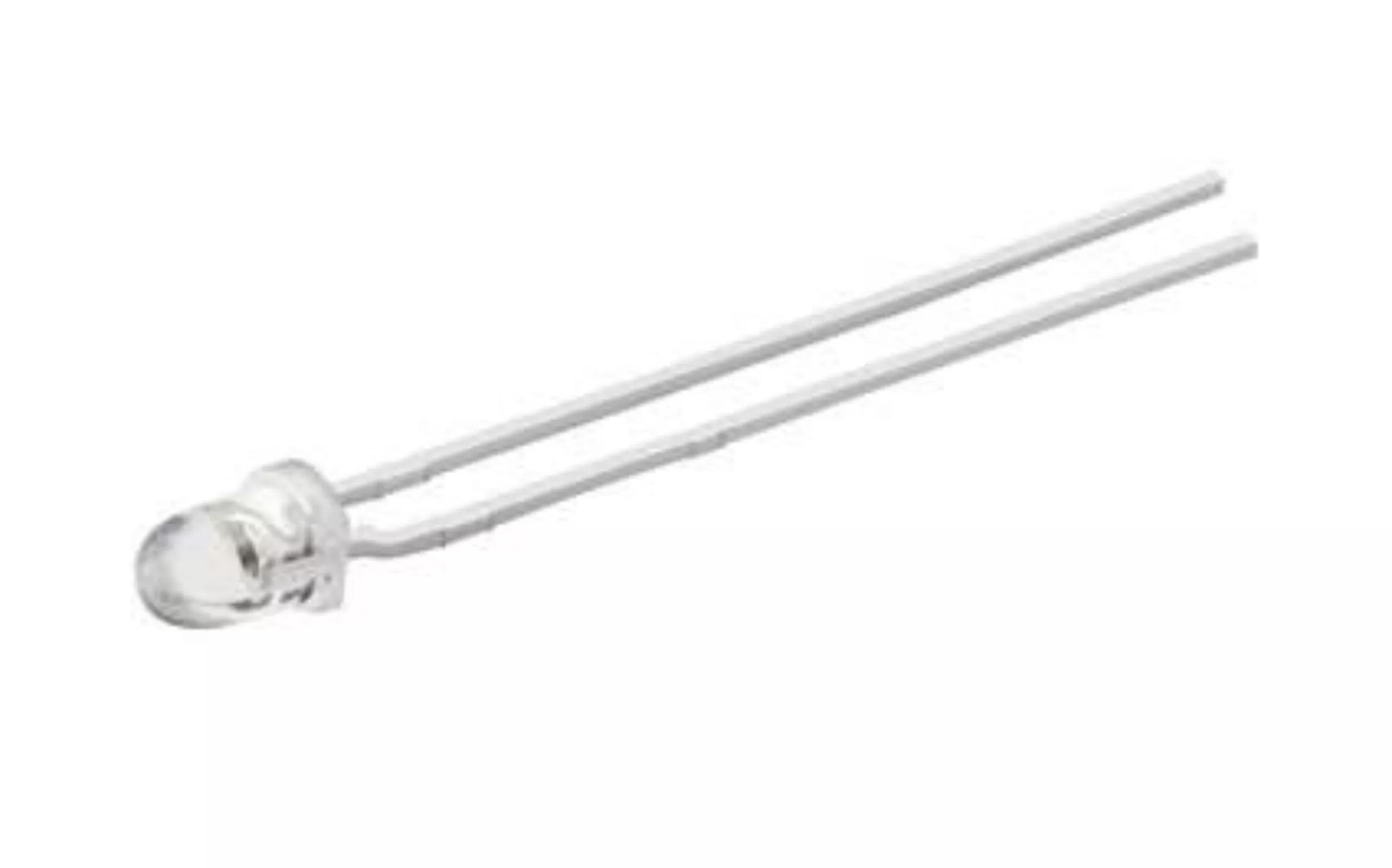

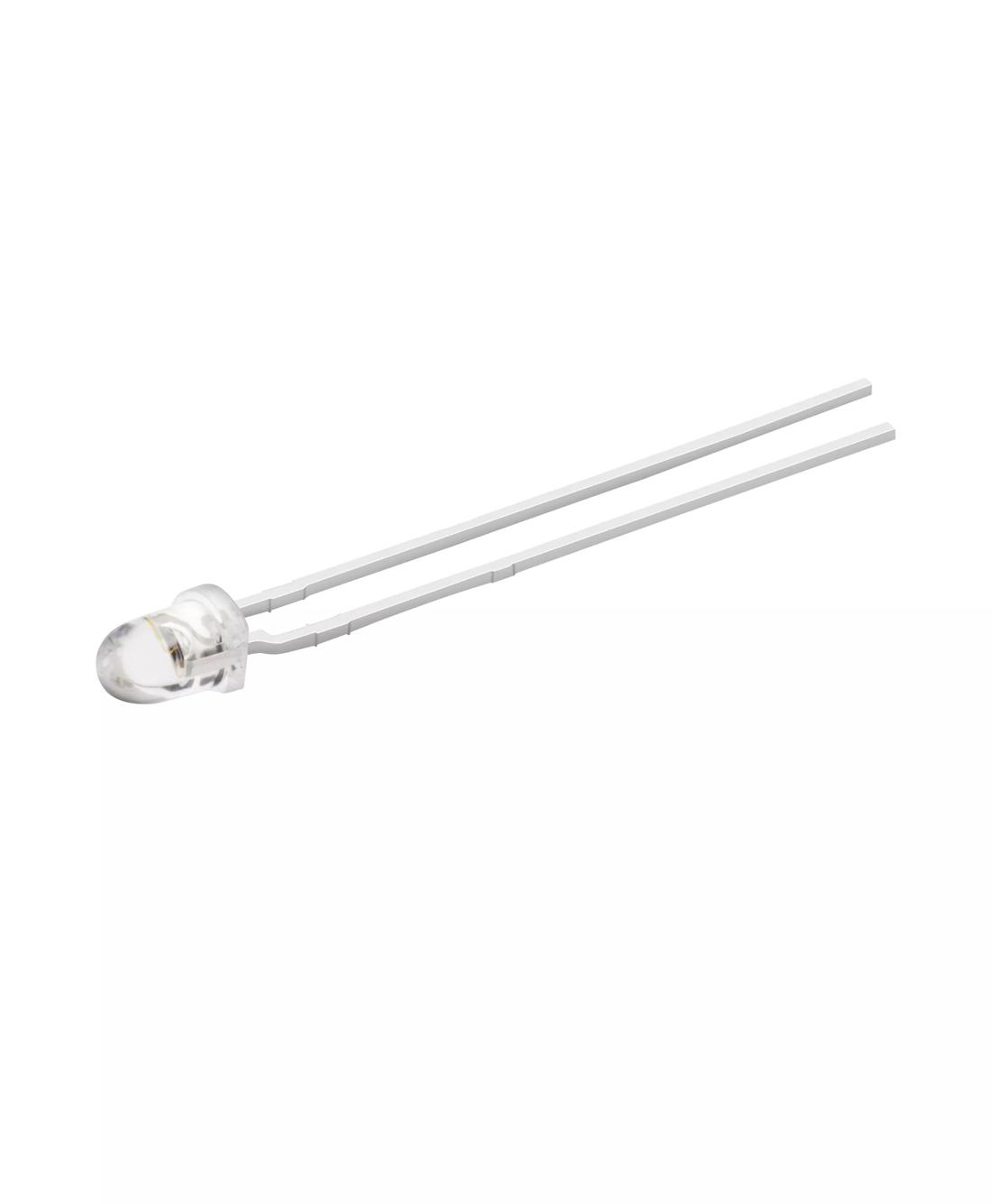

Details
Parameters
Photocurrent
2700.0
µA
Fall time
tf
7.0
µs
Rise time
tf
7.0
µs
Spectral range of sensitivity typ.
λ10%
min.
380
nm
λ10%
max.
1150
nm
Radiant sensitive area
A
0.038
mm²
Beam angle
∢
24
°
Dimension
l
3.8
mm
w
3.8
mm
h
4.85
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SFH 309-5/6 | IPCE = 1800 ... 4500 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) | Q62702P3594 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 309-4/5 | IPCE = 1120 ... 2800 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) | Q62702P3593 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 309-5 | IPCE = 1800 ... 2800 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) | Q62702P0999 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 309 | IPCE = 450 ... 4500 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) | Q62702P0859 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 309-4 | IPCE = 1120 ... 1800 µA, (IPCE=1500 µA typ.) (Ee=0.5 mW/cm²) | Q62702P0998 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 309-3/4 | IPCE = 710 ... 1800 µA, (IPCE=1500 µA typ.) (Ee=0.5 mW/cm²) | Q62702P3592 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
