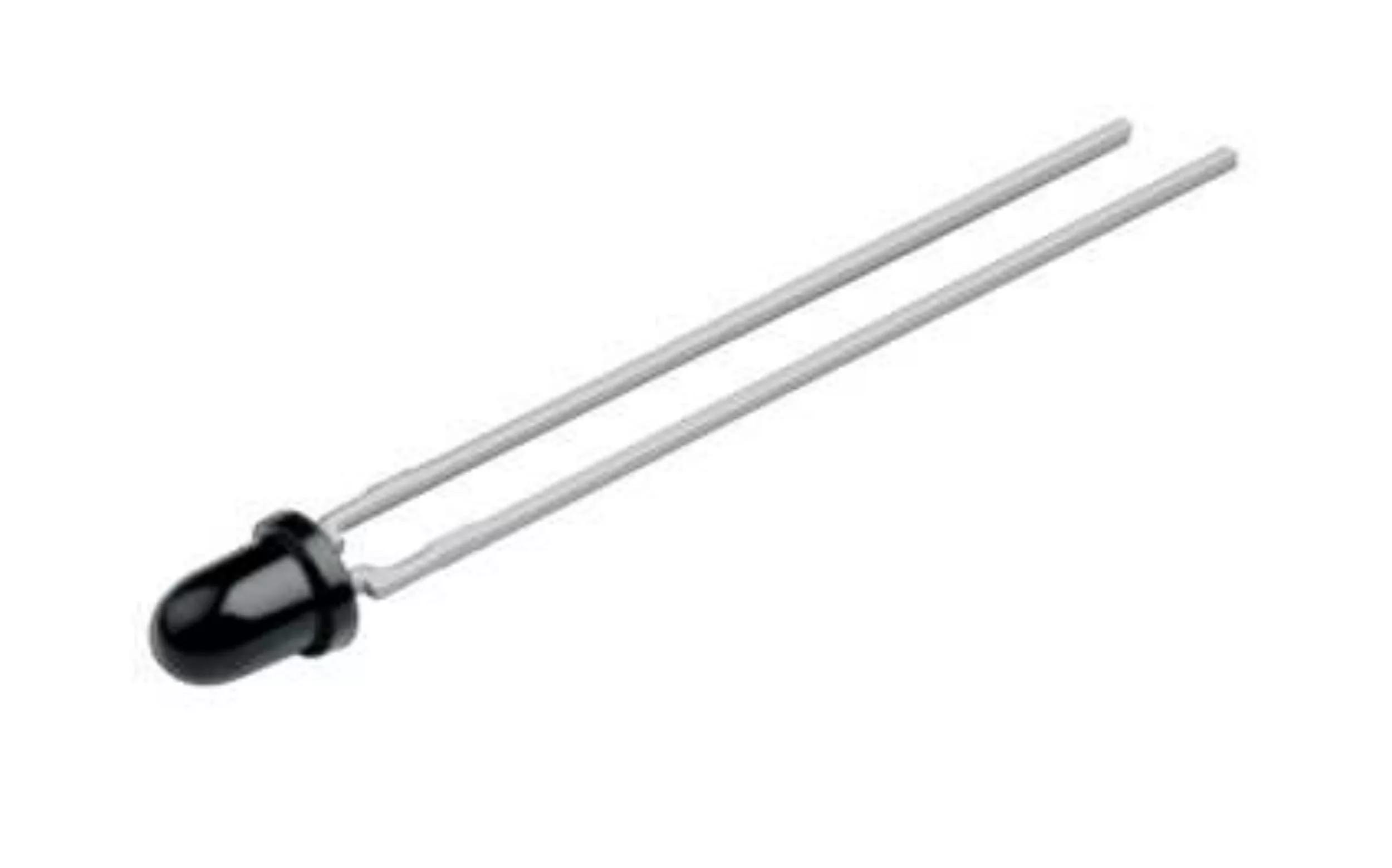

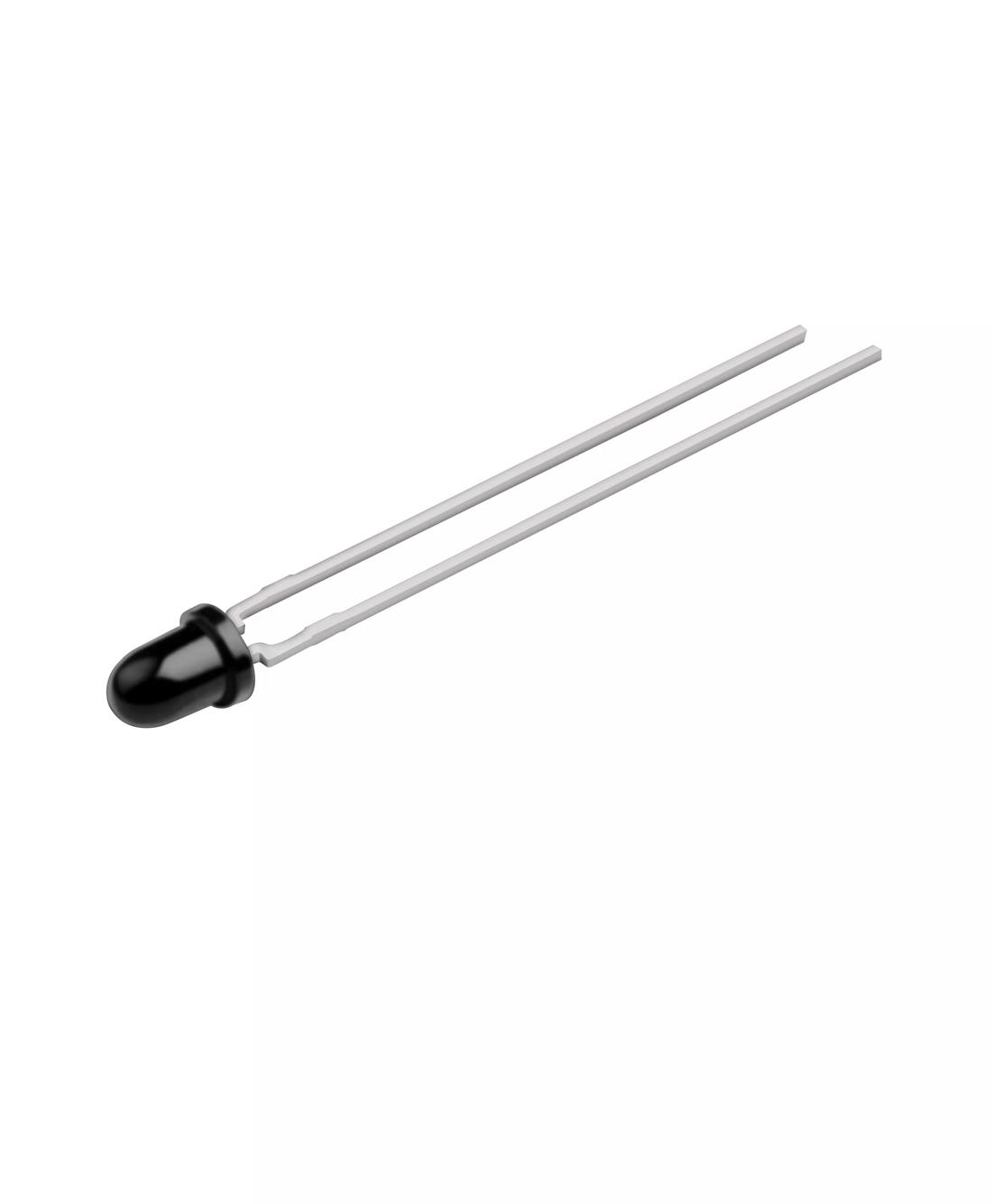

OSRAM Radial T1, SFH 309 FA

Description

Silicon NPN Phototransistor

Details

Parameters

Photocurrent
2700.0 µA
Fall time
tf
7.0 µs
Rise time
tf
7.0 µs
Spectral range of sensitivity typ.
λ10% min.
730 nm
λ10% max.
1120 nm
Radiant sensitive area
A
0.038 mm²
Beam angle
24 °
Dimension
l
3.8 mm
w
3.8 mm
h
4.85 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 309 FA-4 IPCE = 1120 ... 1800 µA, (IPCE=1500 µA typ.) (Ee=0.5 mW/cm²) Q62702P0178
SFH 309 FA IPCE = 450 ... 4500 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) Q62702P0941
SFH 309 FA-5 IPCE = 1800 ... 2800 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) Q62702P0180
SFH 309 FA-4/5 IPCE = 1120 ... 2800 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) Q62702P3591
SFH 309 FA-5/6 IPCE = 1800 ... 4500 µA, (IPCE=2700 µA typ.) (Ee=0.5 mW/cm²) Q62702P5199
SFH 309 FA-3/4 IPCE = 710 ... 1800 µA, (IPCE=1300 µA typ.) (Ee=0.5 mW/cm²) Q62702P3590
