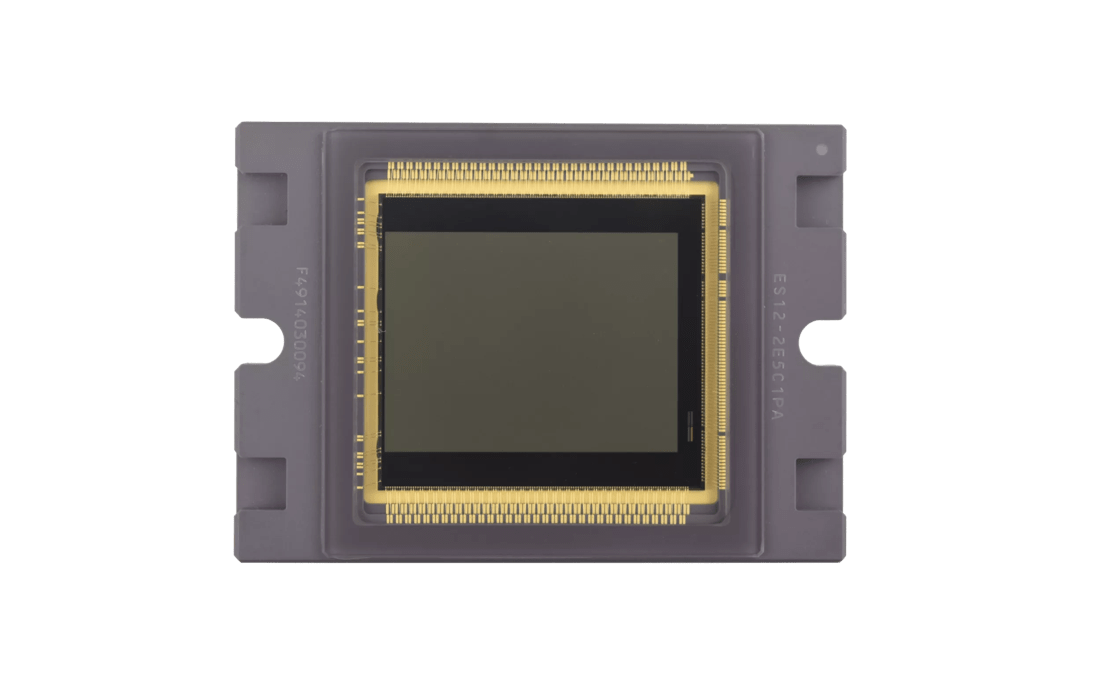

ams CMV12000

ams CMV12000
×

Description

The CMV12000 is a high sensitivity pipelined global shutter CMOS image sensor with a resolution of 4096 x 3072 pixels (ultra HD 4:3 format). Pipelining means that exposure during read out is possible. The state-of-the-art pixel design makes true correlated double sampling (CDS) possible which reduces the fixed pattern noise and dark noise significantly. The imager integrates 64 LVDS channels each running at 300 Mbps resulting in a 300 fps frame rate at full resolution with 10 bits per pixel data output. Driving and read-out programming can be set over a serial peripheral interface. An internal timing generator produces the signals needed for read-out and exposure of the image sensor while external exposure triggering remains possible.
For compatible sockets from Andon Electronics visit http://www.andonelect.com/secure/ImagesClientUpload/crossreferences/image_sensor/ams_(cmosis).pdf
Datasheet
CMV12000 12Mp High Speed Machine Vision Global Shutter CMOS Image Sensor
English
Download
Select & order
Contact us Support

Details

Features

  • Global shutter
  • Resolution of 4096x3072 pixel at 300 frames per second
  • Selectable ADC Resolution
  • High dynamic range mode with dual exposure and piecewise linear response options

Benefits

  • Freeze moving objects
  • Designed for high performance applications
  • Choose between maximum frame rate (10bit) or better image quality (12bit)
  • See bright and dark objects at the same time

Parameters

Resolution
12 MP
Shutter type
Global
Frame rate
max.
300 fps
Optical format
APS-like
Dynamic range
60 dB
Pixel pitch
5.5 µm
5.5 µm
Function
area scan
Integration time
min.
15.4 µs
CRA
No
Package
PGA
Package dimension
h
35 mm
l
33.8 mm
w
47 mm
Cover glass
Plain
No cover glass
CFA option
Mono
RGB
ADC mode
8 bit
10 bit
12 bit
Channels
output
64
Interface
output
Low-voltage differential signaling
Output interface speed
600 Mbps
