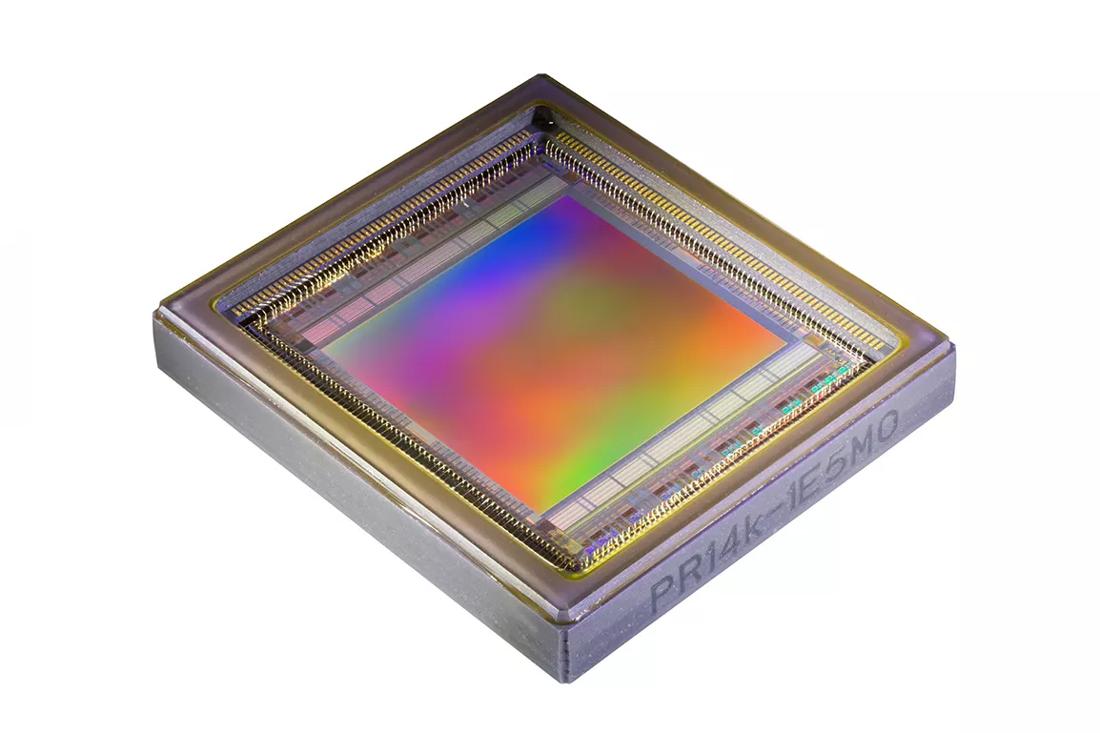

ams CSG14K - 1” Global Shutter Image Sensor

ams CSG14K - 1” Global Shutter Image Sensor
New
×
New

Description

With the CSG14K, ams offers a 14Mp global shutter area scan sensor, featuring 3.2μm charge domain pixels for the most demanding machine vision applications in 1” optical size.

The CSG family features fast 12-bit column based ADCs to achieve industry-leading high frame rates at full resolution enabling faster inspection and higher data throughputs. Data throughput can be reduced by subsampling or binning enabling even higher frame rates. Optical black pixels are used for automatic black level calibration and row noise correction. Computation in the ISP pipeline can be streamlined by the histogram and image statistics that are calculated on-chip. Binning of pixels is possible to improve FWC, DR and SNR. HDR modes operate with dual exposure. Exposure and read-out can be externally triggered.

The CSG family comes in a 218-pin LGA package with 22mm x 20mm x 3.3mm for ultra-compact
(C-Mount) designs. Typical applications include 4K video, factory automation, intelligent
transportation systems (ITS) and general machine vison.
Datasheet
CSG14K_CSG8K 13.8 Mp_8.3 Mp High Speed Global Shutter CMOS Image Sensor
English
Download
Select & order
Contact us Support

Details

Features

  • High speed, high resolution
  • OB pixels for on-chip offset and noise corrections
  • Output data compression
  • Binning for higher FWC, DR and SNR
  • Dual exposure HDR mode
  • External trigger and exposure control possible
  • Image statistics gathering
  • Pin compatible with CSG8K

Benefits

  • High SNR for 1.05" optical format solutions
  • High performance applications
  • Capture fast moving objects
  • Use in low light conditions
  • Small camera size
  • Operation modes tailored to application needs

Parameters

Resolution
14 MP
Shutter type
Global
Frame rate
max.
140 fps
Optical format
1"
Dynamic range
69.1 dB
Pixel pitch
3.2 µm
3.2 µm
Function
area scan
Integration time
min.
36.7 µs
CRA
No
Package
LGA
Package dimension
h
2.75 mm
l
22 mm
w
20 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
ADC mode
10 bit
12 bit
Channels
output
16
Interface
output
Low-voltage differential signaling
Output interface speed
1250 Mbps
Number of lines
3600

Ordering codes

Product Type Description Order No. Availability
CSG14K-1E5M1LA Q65114A0073
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
CSG14K-1E5C1LA Q65114A0075
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
