OSRAM Advanced Power TOPLED®, LY G6SP.02
The Advanced Power TOPLED.02 (APT.02) features ams OSRAM’s state-of-the-art generation of PLCC 6 packages, which have set a market standard in the mid power LED world and were decades ago the first of its kind. With its very robust design, the APT.02 family can withstand harsh environmental conditions and offers the highest level of processability. Containing our latest InGaAlP-chip technology the APT.02 keeps its market leading brightness performance and offers a wide range of available bins with a high luminous efficiency and an excellent thermal resistance.
Details
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability | |
|---|---|---|---|---|
| LY G6SP-CBFA-36-3B5A | Iv = 3.55 ... 14.00 cd (IF = 140 mA) | Q65113A2846 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
Mouser
Buy now
|
| LY G6SP-CBEB-36-3B5A | Iv = 3.55 ... 11.20 cd (IF = 140 mA) | Q65111A8100 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Order now
Mouser
Buy now
|
×
Downloads
For other documents visit our
Download center
Application note
Driving the Advanced Power TOPLED®
Product related
Preventing LED failures caused by corrosive materials
General information
Long-term availability management
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools for LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
LED driving technology for long term flexibility
Electrical design
LED diagnosis in automotive applications
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

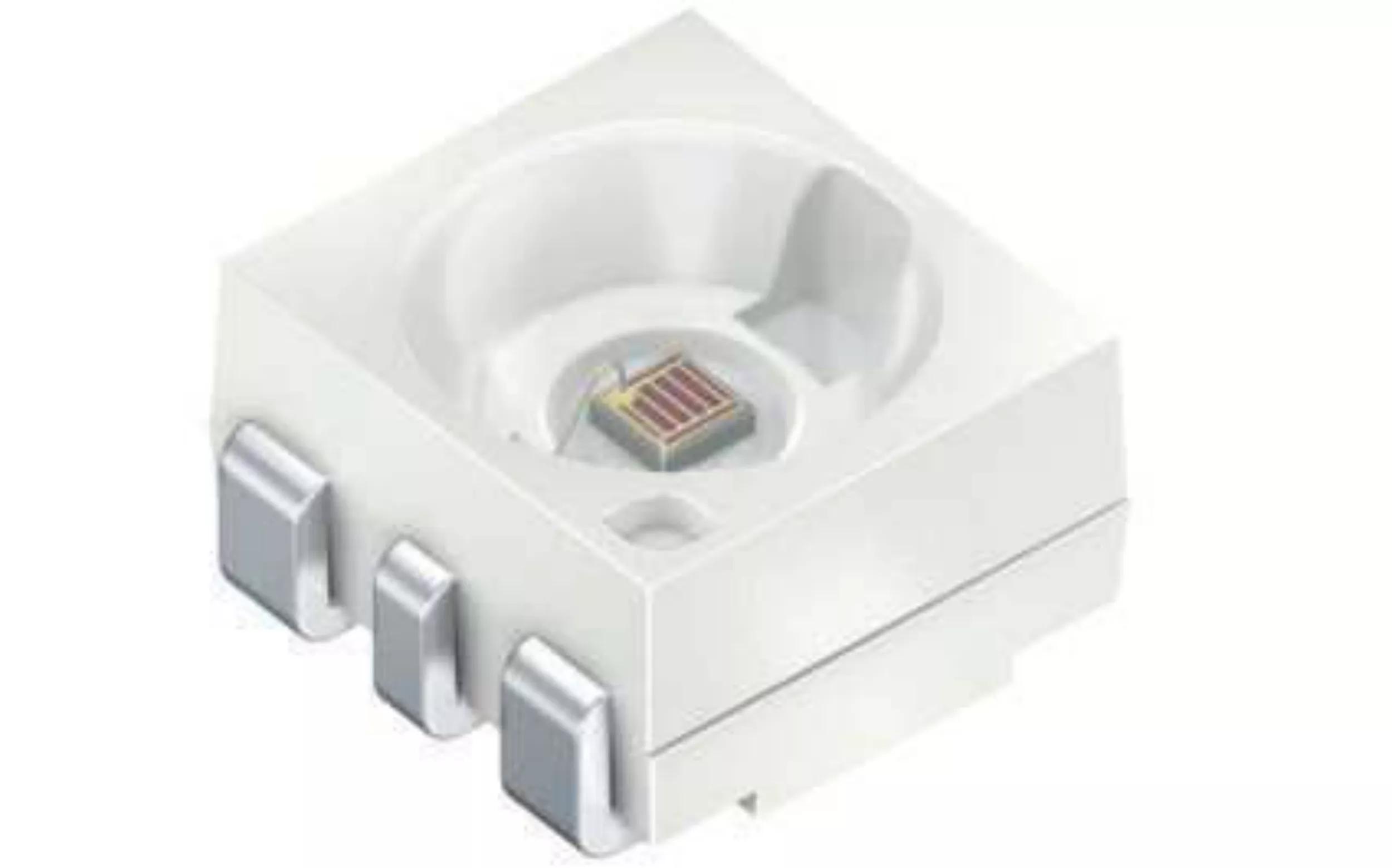

APT - InGaAlP_Productpicture
Tools
LightGuide
Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
