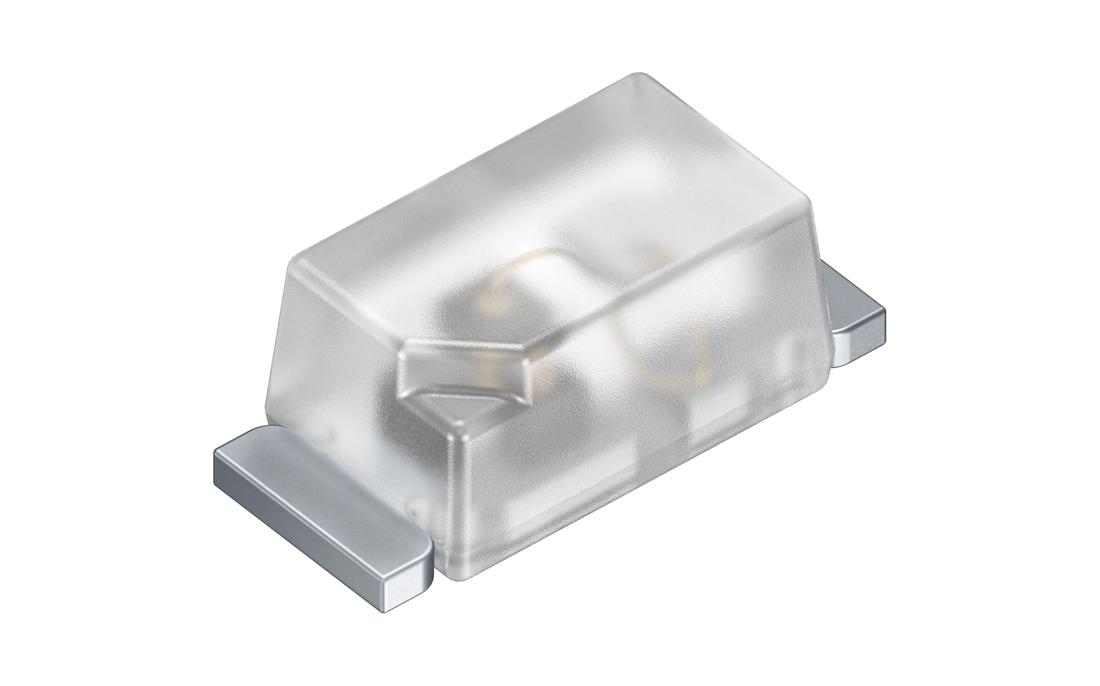

Details
Parameters
Color of emission
Super Red (627-639 nm)
Electrical power
0.0036
W
Low
Brightness
ΦV
0.0227
lm
IV
0.00445
cd
ΦE
0.189
mW
IE
0.037
mW/sr
Beam angle
∢
160
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
1.7
mm
w
0.8
mm
h
0.65
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LS L29K-G1H2-1 | Iv = 1.80 ... 4.50 mcd (IF = 2 mA) | Q65110A1758 | |
| LS L29K-G1J2-1 | Iv = 1.80 ... 7.10 mcd (IF = 2 mA) | Q65110A1757 | |
| LS L29K-H1J2-1 | Iv = 2.80 ... 7.10 mcd (IF = 2 mA) | Q65110A1756 |
