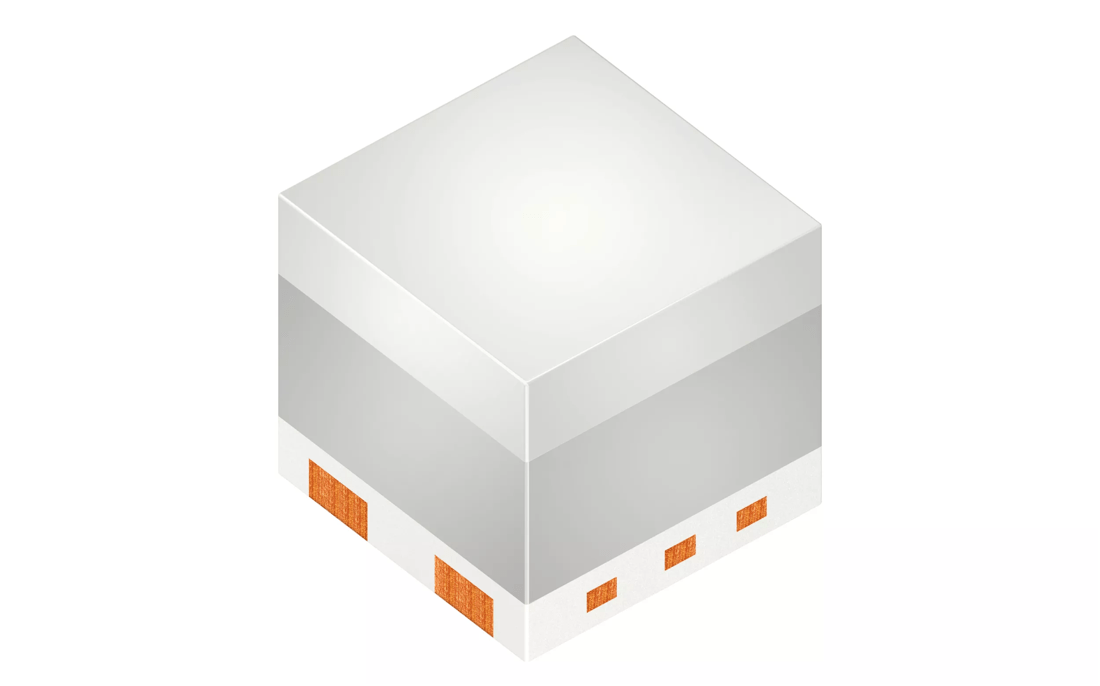

OSRAM SYNIOS® P1515, KY SITQA1.23

OSRAM SYNIOS® P1515, KY SITQA1.23
New
×
New

Description

The SYNIOS® P1515 expands ams OSRAM’ low power portfolio by offering a small LED Industry standard footprint. The unique 360° radiation characteristic makes it fit perfect for a huge variety of applications especially in automotive exterior. Where either a small optical distance to the cover glass or homogeneous area illumination is required, the SYNIOS® P1515 shows significant benefits. These unique features give freedom to very thin and flexible designed RCL-Modules.
Datasheet
KY SITQA1.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.11 W
Low
Brightness
ΦV
7.5 lm
IV
0.114 cd
ΦE
15 mW
IE
0.227 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
1.5 mm
w
1.5 mm
h
1.42 mm

Ordering codes

Product Type Description Order No. Availability
KY SITQA1.23-6D7E-36-3B5A ΦV = 5.00 ... 10.00 lm (IF = 50 mA) Q65112A9802
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
