OSRAM TOPLED® Lens, LP T655

OSRAM TOPLED® Lens, LP T655

Discontinued

Description

Contact us Support

Replacement Products

OSRAM TOPLED® E1608, KP DELPS1.FP

OSRAM TOPLED® E1608, KP DELPS1.FP

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.

Details and Datasheet

Details

Parameters

Color of emission

Pure Green (554-566 nm)

Electrical power

0.06 W

Low

Brightness

Φ_V

0.159 lm

I_V

0.126 cd

Φ_E

0.239 mW

I_E

0.189 mW/sr

Beam angle

∢

60 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

l

3.2 mm

w

2.8 mm

h

3.35 mm

Application fields

Automotive & mobility Ambient lighting Automotive Aftermarket

Ordering codes

Product Type	Description	Order No.	Availability
LP T655-Q1R2-25	I_v = 71 ... 180 mcd (I_F = 30 mA)	Q65110A2355	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Mouser Buy now RS Buy now

Downloads

Datasheets

LP T655

Datasheet

DE

JP

Application note

Preventing LED failures caused by corrosive materials

General information

DE

CN

JP

Long-term availability management

General information

DE

CN

JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information

DE

CN

JP

Details on photobiological safety of LED light sources

General information

DE

CN

JP

Reliability and lifetime of LEDs

General information

JP

Importing rayfiles and ray-measurement files of LEDs

General information

DE

CN

JP

Chemical compatibility of LEDs

General information

DE

CN

JP

Measurement, calibration and measurement uncertainty of LEDs

General information

DE

JP

Partial Flux — Measurement reliability of lensed LEDs

Handling recommendations

DE

CN

JP

ESD protection while handling LEDs

Handling recommendations

DE

CN

JP

Dry pack information

Handling recommendations

DE

CN

JP

Fundamentals of LED handling

Handling recommendations

DE

CN

JP

Manual lead-free soldering of LEDs

Soldering and processing

DE

CN

JP

Measuring of the temperature profile during the reflow solder process

Soldering and processing

DE

CN

JP

Processing of SMD LEDs

Soldering and processing

DE

CN

JP

Recommended pick-and-place tools of LEDs

Soldering and processing

DE

CN

JP

Further details on lead free reflow soldering of LEDs

Soldering and processing

JP

PCB technologies for LED applications

Thermal management

DE

CN

JP

Package related thermal resistance of LEDs

Thermal management

DE

CN

JP

Temperature measurement with thermocouples

Thermal management

DE

CN

JP

Thermal management of LED light sources

Thermal management

DE

CN

JP

Determination of resistances for brightness compensation

Electrical design

DE

CN

JP

LED driving technology for long term flexibility

Electrical design

DE

CN

JP

Comparison of simple LED circuits for low power LEDs

Electrical design

DE

CN

JP

Dimming LEDs with respect to grouping current

Electrical design

DE

CN

JP

The basic principles of Electrical Overstress (EOS)

Electrical design

DE

CN

JP

Resources

Electrical Simulation

Electrical Simulation

Images

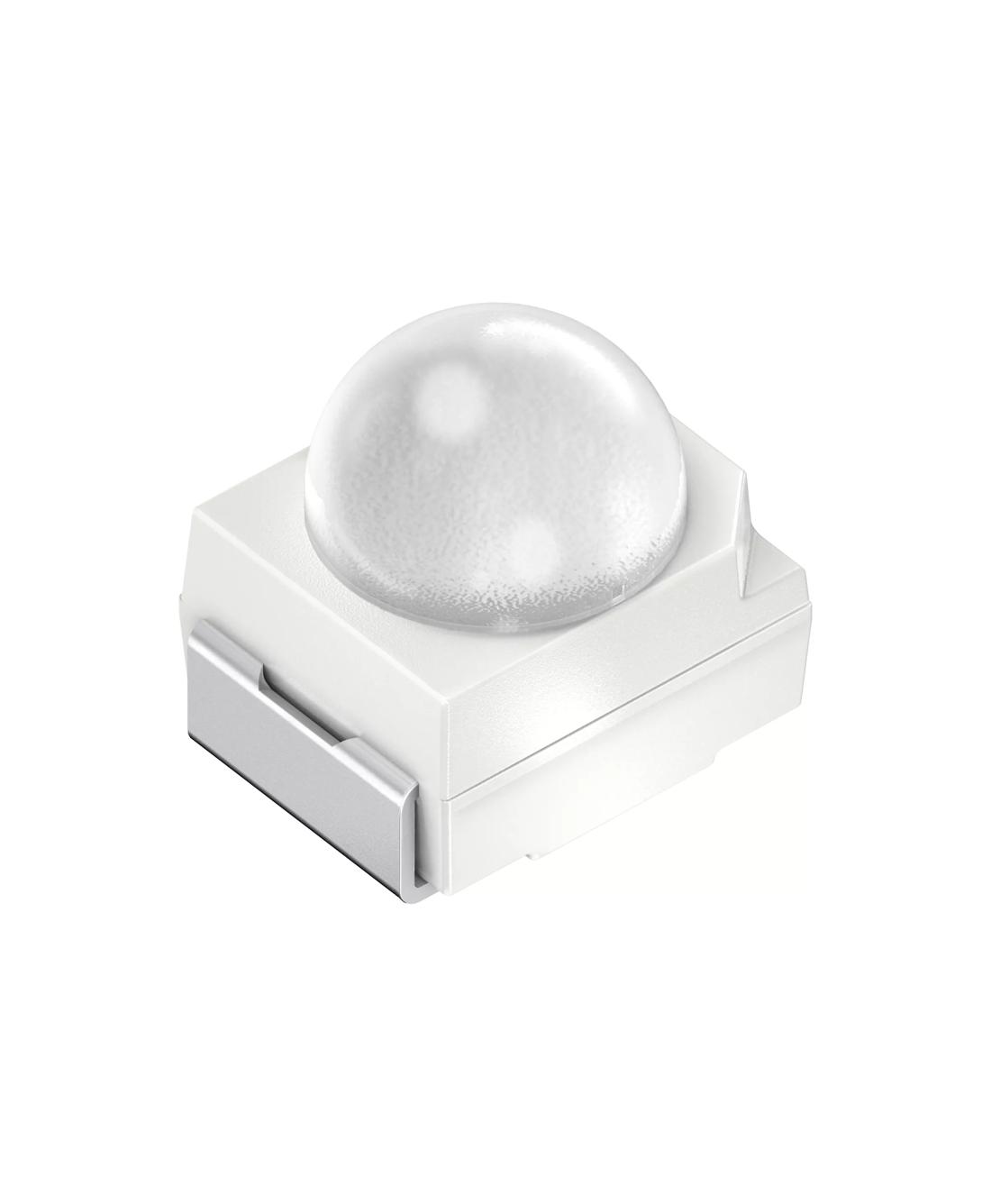

TOPLED lens - T656_Productpicture
