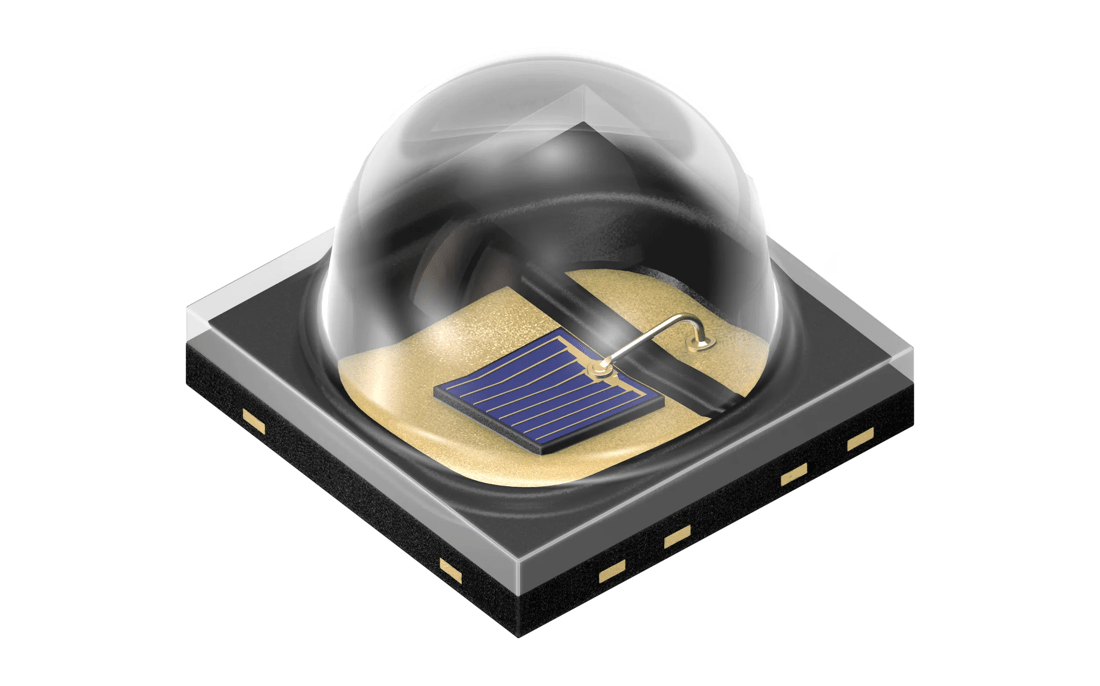

OSRAM OSLON™ Black, SFH 4728BS A01

Description

OSLON Black Series (940 nm) - 50° High power infrared LED for In-Cabin Sensing applications like driver monitoring, occupant monitoring, interior monitoring, gesture sensing and child presence detection.

Datasheet

Select & order

Details

Parameters

Color of emission

Infrared (>800 nm)

Current

I_F

1000 mA

Peak wavelength

950 nm

Brightness

Φ_E

1600 mW

I_E

1600 mW/sr

Beam angle

∢

50 °

Dimension

3.75 mm

2.94 mm

Operating temperature

T_op min.

-40 °C

T_op max.

125 °C

Application fields

Industrial Access control & security

Computing Computing

Mobile & wearables Authentication Eye, face and hand tracking

Automotive & mobility In-Cabin sensing

Ordering information

Product Type	Description	Ordering code	Availability
SFH 4728BS A01-FB1FB2	I_e = 1400 ... 1800 mW/sr, (I_e=1500 mW/sr typ.) (I_F = 1000 mA)	Q65115A0255	Full production
