Details
Parameters
Color of emission
White
CRI
90
Electrical power
2.0
W
High
Brightness
ΦV
250
lm
IV
83.4
cd
ΦE
878
mW
IE
293
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
2.4
mm
w
2.4
mm
h
0.6
mm
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
GW PLLRA1.CM-M7N2-XX51-1 | ΦV = 240 ... 300 lm, 6500 K (IF = 700 mA) | Q65113A2142 | |
GW PLLRA1.CM-M6N1-XX55-1 | ΦV = 230 ... 290 lm, 4000 K (IF = 700 mA) | Q65113A2182 | |
GW PLLRA1.CM-M7N2-XX53-1 | ΦV = 240 ... 300 lm, 5000 K (IF = 700 mA) | Q65113A2181 | |
GW PLLRA1.CM-M7N2-XX52-1 | ΦV = 240 ... 300 lm, 5700 K (IF = 700 mA) | Q65113A2180 | |
GW PLLRA1.CM-M5MF-XX56-1 | ΦV = 220 ... 280 lm, 3500 K (IF = 700 mA) | Q65113A2183 | |
GW PLLRA1.CM-M4M9-XX57-1 | ΦV = 210 ... 270 lm, 3000 K (IF = 700 mA) | Q65113A2184 | |
GW PLLRA1.CM-M3M8-XX58-1 | ΦV = 200 ... 260 lm, 2700 K (IF = 700 mA) | Q65113A2185 |
Downloads
For software click here/for further documents visit our
download center
Datasheets
GW PLLRA1.CM
Datasheet
Application note
Light quality — White light parameters
Product related
Light quality — Color metrics
Product related
OSCONIQ® C2424 - General information
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Preventing LED failures caused by corrosive materials
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Comparison of simple LED circuits for low power LEDs
Electrical design
Determination of resistances for brightness compensation
Electrical design
LED driving technology for long term flexibility
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

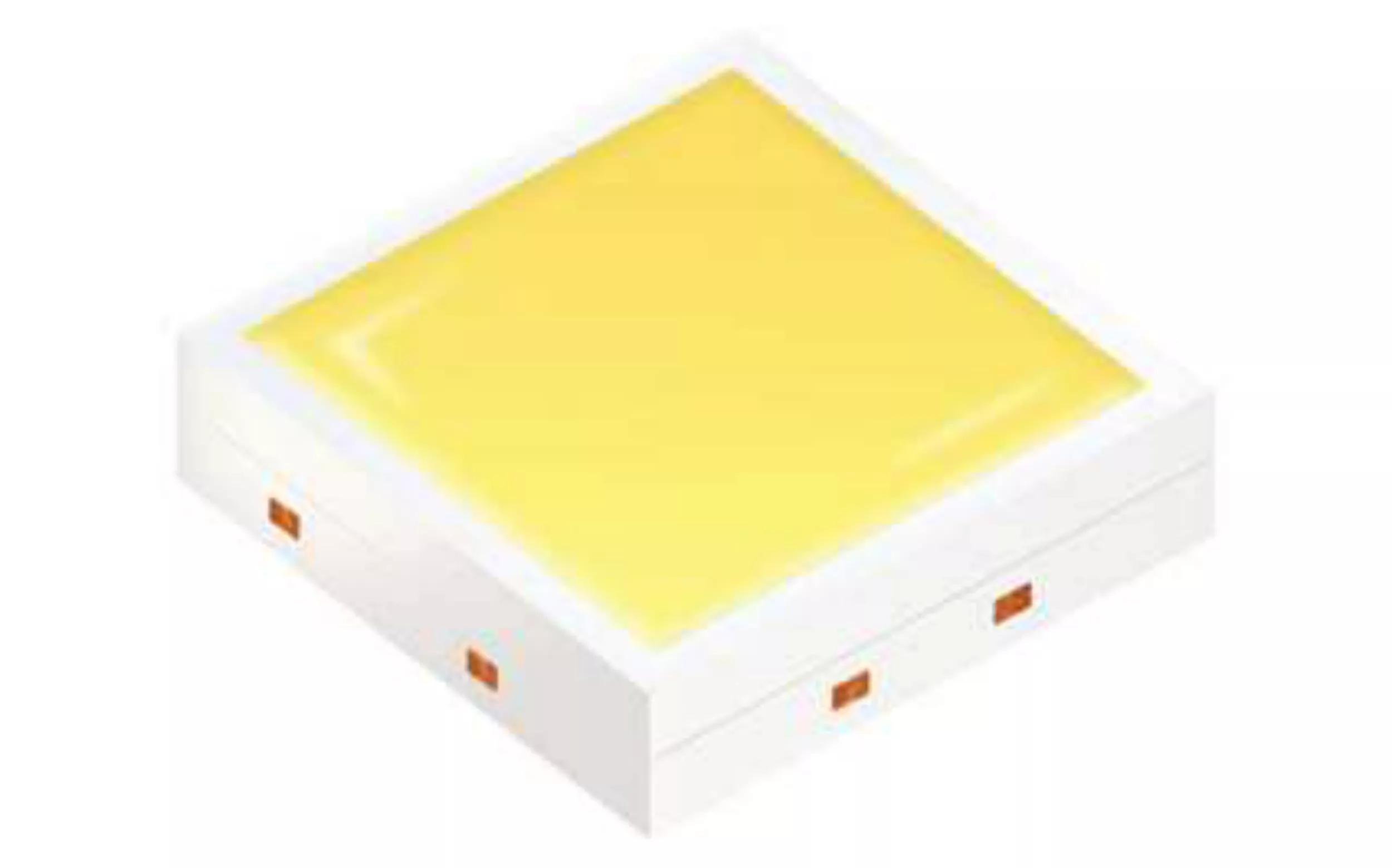

OSCONIQ_C_2424__GW_PLLRA1-xM_36x22.4mm_cmyk
