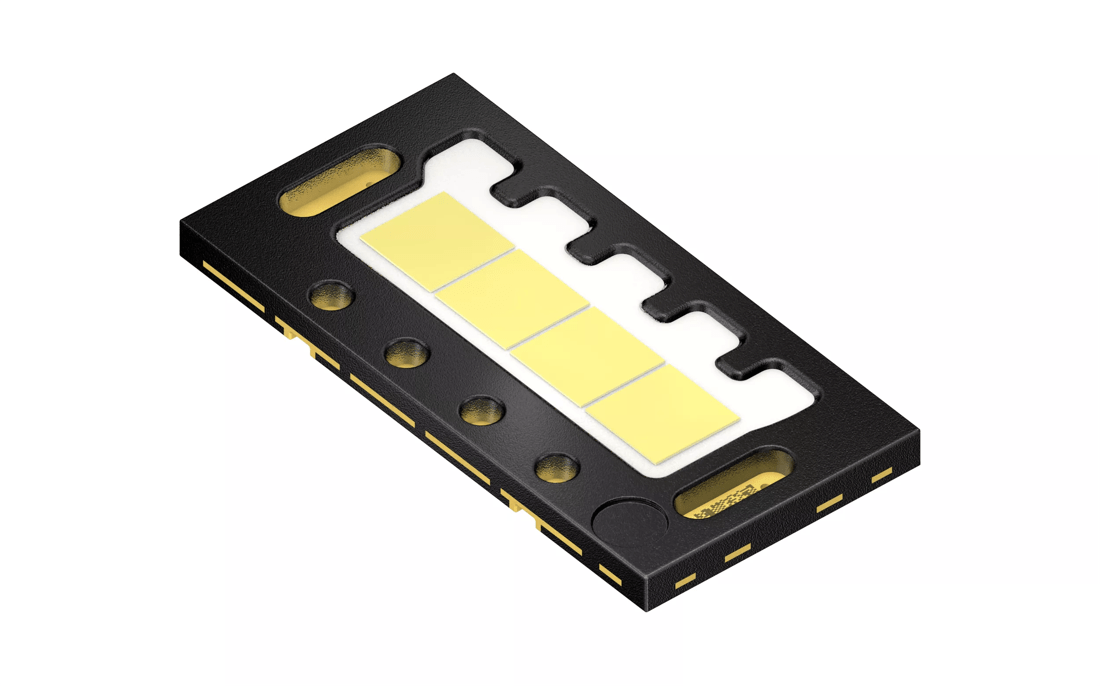

OSRAM OSLON™ Black Flat X, KW4 HPL631.TK

Not for new design
×
Not for new design

Description

The OSLON Black Flat X product family offers LED devices with the highest efficiency in the ams OSRAM portfolio. This feature makes it the perfect light source for standard forward lighting applications with a high focus on system cost. The SMT device is very stable, durable and can be used with standard processes. The pad geometry of the widely used OSLON Black Flat product platform was further optimized to allow for excellent thermal conditions, while the already known, outstanding contrast of the package concept is kept on the familiar level.
Datasheet
KW4 HPL631.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
13.0 W
Ultra High
Brightness
ΦV
1880 lm
IV
609 cd
ΦE
5860 mW
IE
1900 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
7.59 mm
w
3.75 mm
h
0.5 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW4 HPL631.TK-BCBH-4L05M0-AGAE ΦV = 1640 ... 2040 lm (IF = 1000 mA) Q65113A1248 Not planned for new design
KW4 HPL631.TK-BCBJ-4L07M0-AGAE ΦV = 1640 ... 2115 lm (IF = 1000 mA) Q65113A4586 Not planned for new design
KW4 HPL631.TK-BDBJ-6L07M0-AGAE ΦV = 1700 ... 2115 lm (IF = 1000 mA) Q65113A1296 Not planned for new design
