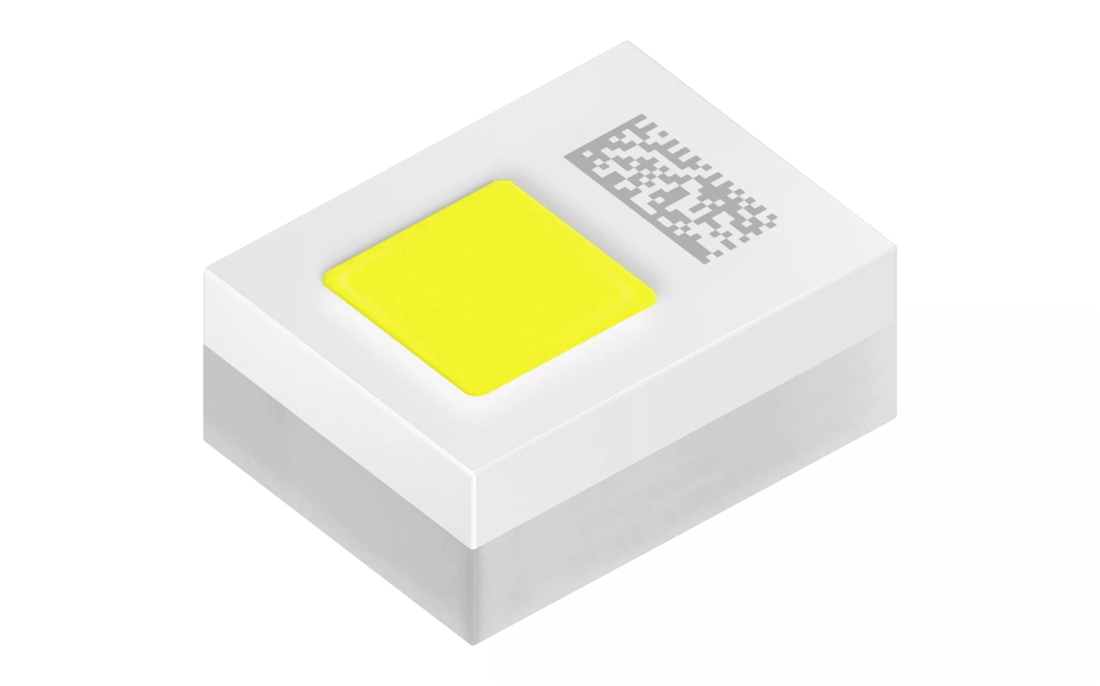

OSRAM OSLON® Compact PM, KW CVLMM2.TK

OSRAM OSLON® Compact PM, KW CVLMM2.TK

New

Description

Compact light source with small z-tolerance (+/- 35 µm). The OSLON® Compact PM product family meets both excellent brightness in combination with outstanding luminance.

Contact us Support

Details

Parameters

Color of emission

White

Electrical power

2.2 W

High

Brightness

Φ_V

273 lm

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

135 °C

Dimension

l

1.65 mm

w

1.25 mm

h

0.73 mm

Application fields

Automotive & mobility Dynamic forward lighting

Ordering codes

Product Type	Description	Order No.	Availability
KW CVLMM2.TK-Y2Y6-4L16M1-2686	Φ_V = 235 ... 310 lm (I_F = 700 mA)	Q65113A5310	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Farnell Buy now Mouser Buy now
KW CVLMM2.TK-Y2Y6-4L25M2-2686	Φ_V = 235 ... 310 lm (I_F = 700 mA)	Q65113A5309	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Farnell Buy now Mouser Buy now
KW CVLMM2.TK-Y2Y6-4L35M3-2686	Φ_V = 235 ... 310 lm (I_F = 700 mA)	Q65113A5311	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Farnell Buy now Mouser Buy now
