OSRAM OSLON® Square, GW CSSRM3.HW

OSRAM OSLON® Square, GW CSSRM3.HW
×

Product features

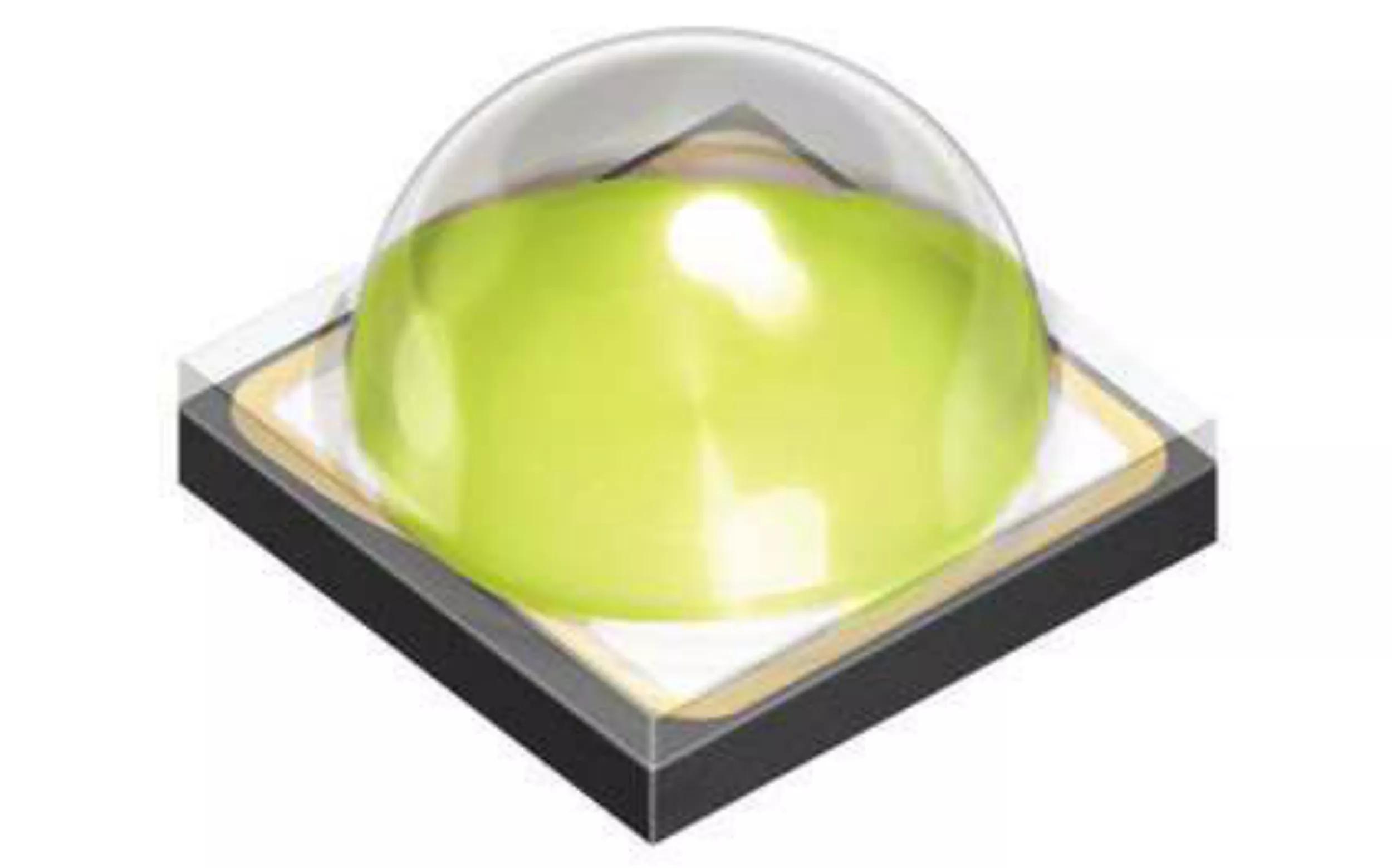

OSLON® Square Horti White is the ideal white LED that enables luminaires to maximize system level photon efficacy performance for horticulture applications. Unlike conventional white LEDs, ams OSRAM’s Horti White LEDs utilizes a customized phosphor solution designed to facilitate the increase of non-converted red photons to deliver superior fixture level efficacy. Additionally, this high-power LED provides excellent reliability, long lifetime, proven robustness and low thermal resistance in a compact footprint.

Downloads

Datasheet

GW CSSRM3.HW

Datasheet / 1.8 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product Related / 1.7 MB

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

OSLON® (ceramic) package family — Details on the assembly and solder pad design

Product Related / 2.5 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Ceramic LEDs — Details on handling and processing

Processing and Handling / 2.2 MB

Cleaning of LEDs

Processing and Handling / 795.1 KB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

Partial Flux — Measurement reliability of lensed LEDs

Measurement / 1.0 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
GW CSSRM3.HW-VNAQ-H1H2-1 ΦE = 960 ... 1300 mW (IF = 700 mA) Q65113A1855
GW CSSRM3.HW-VOAQ-H3H4-1 ΦE = 1035 ... 1300 mW (IF = 700 mA) Q65113A3176
GW CSSRM3.HW-VOAQ-H1H2-1 ΦE = 1035 ... 1300 mW (IF = 700 mA) Q65113A4752
GW CSSRM3.HW-APAQ-H3H4-1 ΦE = 1120 ... 1300 mW (IF = 700 mA) Q65113A4750

Tools

Horticulture

Calculation of different horticulture lighting scenarios with variations of LED configurations and ratios to realize the desired photon flux from the fixture and estimate the resulting photon flux density on the plants for a defined system setup.
