Details
Parameters
Photocurrent
45.0
µA
Spectral range of sensitivity typ.
λ10%
min.
470
nm
λ10%
max.
670
nm
Radiant sensitive area
A
0.29
mm²
Beam angle
∢
120
°
Dimension
l
2.0
mm
w
1.25
mm
h
0.8
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

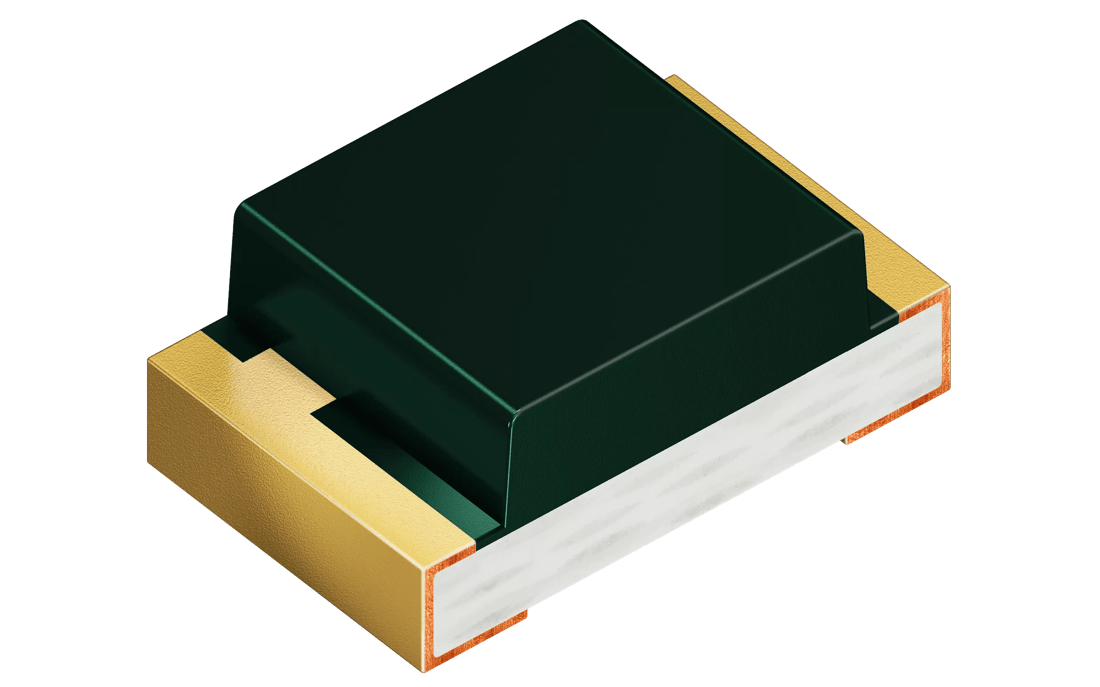

| SFH 3711 | IPCE = 18 ... 71 µA, (IPCE=45 µA typ.) (Ev=1000.00 lx) | Q65111A2362 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
| SFH 3711-1/2 | IPCE = 18 ... 45 µA (Ev=1000.00 lx) | Q65111A3534 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| SFH 3711-2/3 | IPCE = 28 ... 71 µA (Ev=1000.00 lx) | Q65111A3533 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
