ams NanEye2D Miniature Camera Module

Name: ams NanEye2D Miniature Camera Module
Brand: ams-OSRAM AG

Description

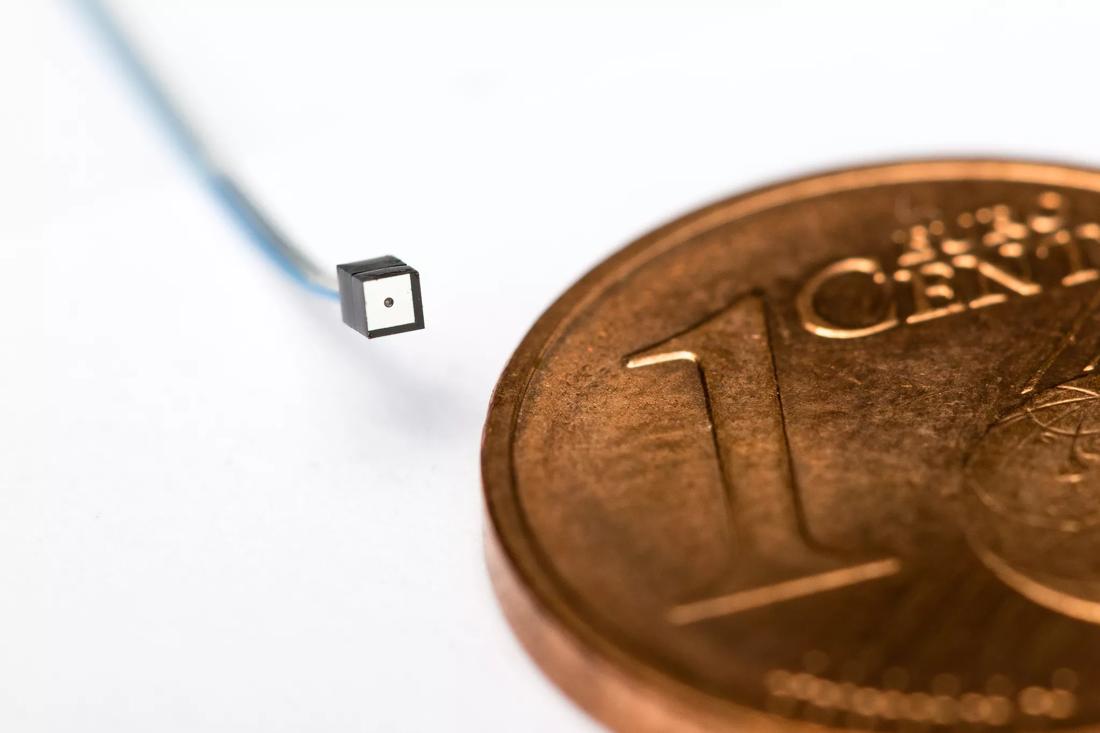

NanEye2D is a miniature sized image sensor for applications where size is a critical factor. The ability of the camera head to drive a signal through a cable makes this the ideal component for minimal diameter endoscopes.
With a footprint of just 1 mm x 1 mm, it features a 249x250 resolution with a high sensitive 3 um x 3 um rolling shutter pixel, with large full well capacitance. The sensor has a high frame rate of about 43 fps to 62 fps adjustable over power supply.
The sensor includes a 10-bit ADC and a bit serial LVDS data interface, being able to drive the signal through a cable length of up to 3 m.
The data line is semi duplex, such that configuration can be communicated to the sensor in the frame brake.

Datasheet

User guide Select & order

Details

Footprint of 1mm x 1mm with 4 contact pads
Frame rate of 43-62fps @ 249x250 resolution
62k pixel resolution using 3 µm highly sensitive pixel, with reduced noise and higher light efficiency by increased resolution, having a sharp and accurate image
All-in-one cost-optimized complete camera module solution including optics & cable for easy integration, being ideal for single-use application. Pre-assembled cable eliminates the complexities of cable procurement and attachment
Possible to drive a signal through an endoscope of up to 3m with low EMI

Compact size design for applications with strict size restrictions
Adjustable frame rate
Envision the unseen
Designed with focus on cost efficiency
Digital Interface

Parameters

Resolution

0.062 MP

Shutter type

Rolling

Frame rate

max.

62 fps

Optical format

1/15"

Dynamic range

58 dB

Pixel pitch

3 µm

Function

miniature camera

CRA

Package

SGA

Cabled Module

Package dimension

1 mm

CFA option

Mono

RGB

ADC mode

10 bit

Channels

output

Interface

output

Low-voltage differential signaling

Output interface speed

38 Mbps

Application fields

Industrial Appliances & tools

Mobile & wearables Eye, face and hand tracking

Medical & health Medical imaging

Ordering codes

Product Type	Description	Order No.	Availability
NE2D_CHIP_B&W_SGA	Monochrome \| No lens \| CSP	Q65114A3395	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
NE2D_RGB_V120F2.8_2M	RGB \| Lens - FOV120 & F#2.8 \| Cabled module with 2 m	Q65114A3341	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
NE2D_RGB_V90F2.7_2M	RGB \| Lens - FOV90 & F#2.7 \| Cabled module with 2 m	Q65114A3340	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
