ams AS5304 Linear Sensor

Description

The AS5304 is an incremental position sensor for linear and rotary off-axis applications based on contactless magnetic sensor technology. To measure position and motion a multi-pole magnet strip or ring has to be used. There are 160 pulses per 4.0 mm pole pair length on the standardized quadrature output interface with an index pulse (=ABI-interface) with a maximum speed of 20m/s.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Contactless motion and position sensing
  • High speed measurement
  • Immune to external magnetic stray fields

Benefits

  • Highest reliability and durability in harsh environments
  • Control of high speed movements
  • Lower material cost (no magnetic shielding needed)

Parameters

Operating ambient temperature
min.
-40 °C
max.
125 °C

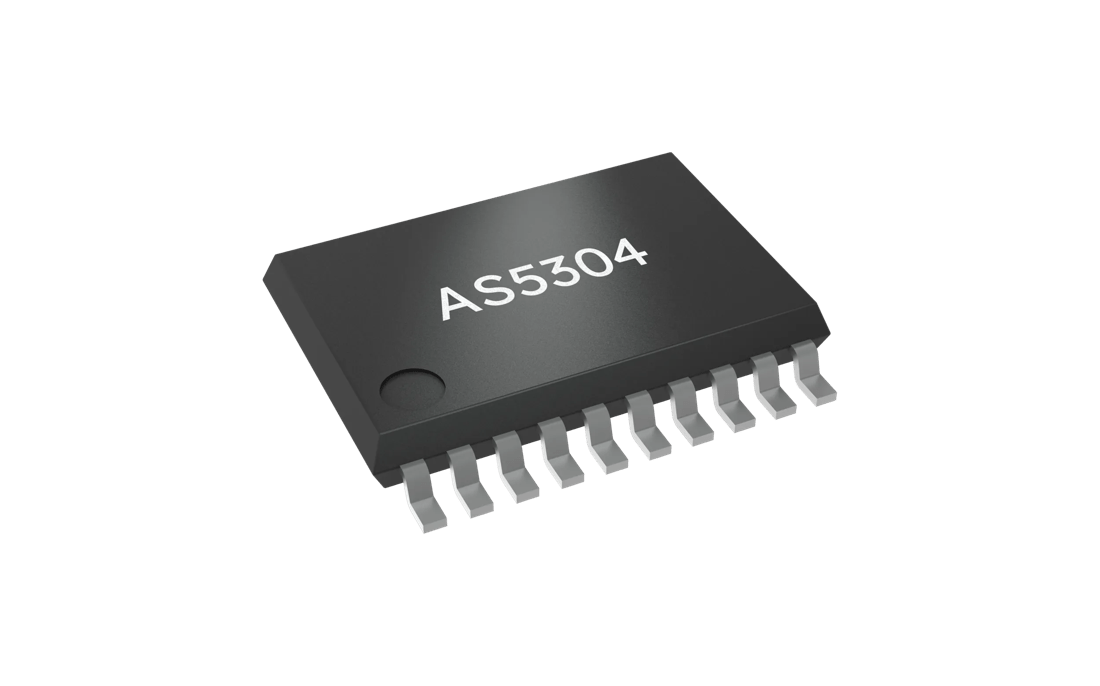

Package
20-pin TSSOP

Ordering codes

Product Type Description Order No. Availability
AS5304A 25μm resolution, 2mm Magnet pole length, Push Pull Q65114A0626
AS5304B 25μm resolution, 2mm Magnet pole length, Open Drain Q65114A0630
