ams AS5311_TS_EVM_AB Evaluation board

ams AS5311_TS_EVM_AB Evaluation board
×

Description

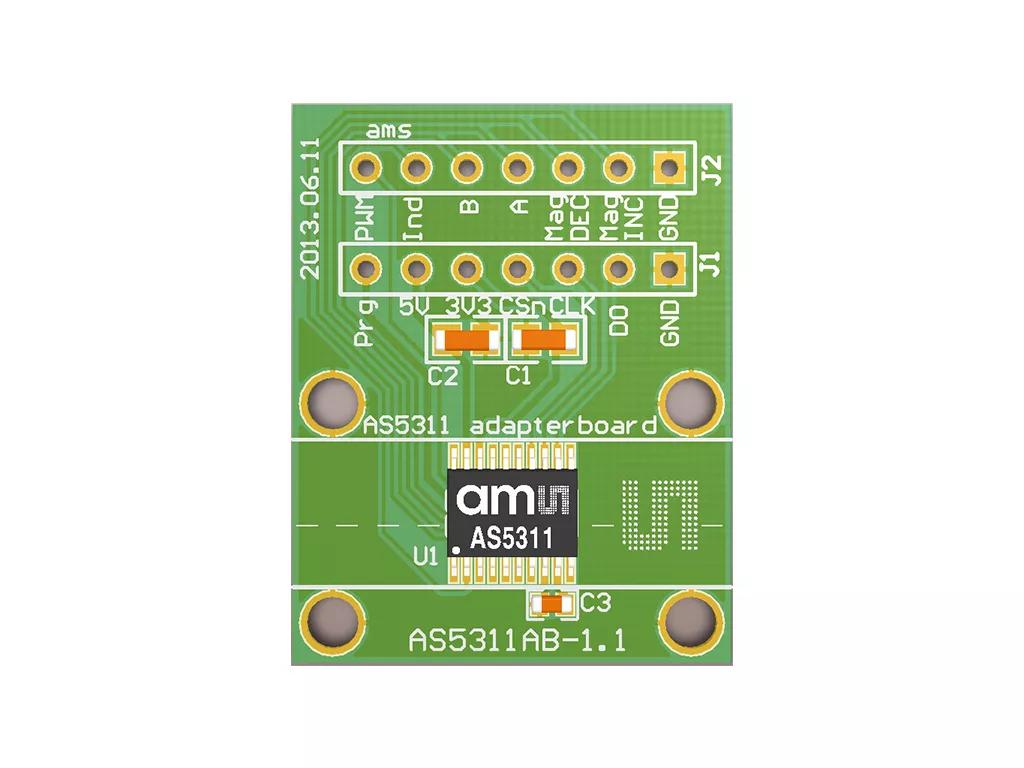

The AS5311 Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5311 linear incremental magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
User guide Select & order
Contact us Support

Ordering codes

Product Type Description Order No. Availability
AS5311-TS_EK_AB
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

User guides

AS5311_UG000217_2-00

User guide
EN
DE
CN
JP
