ams AS5600_SO_EVM_AB Evaluation board

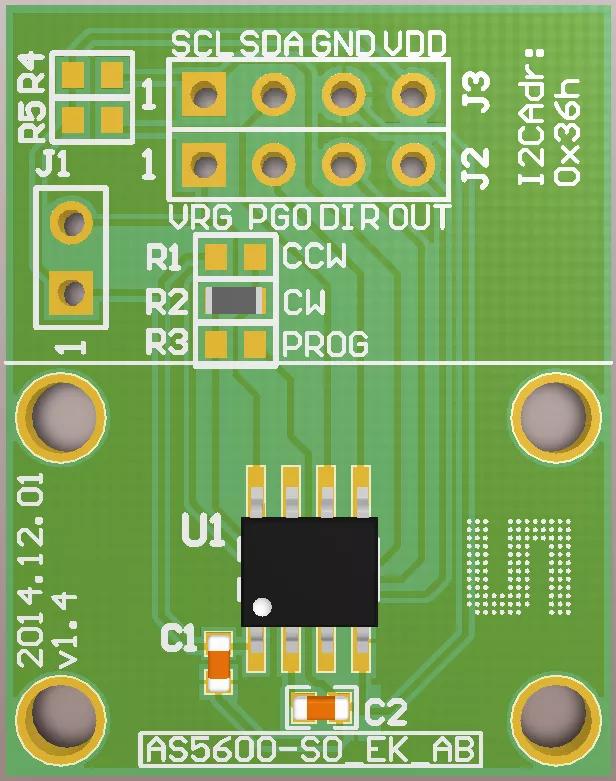

The adapter board allows an easy and fast evaluation of the AS5600 rotary magnetic position sensor in the lab or together with an existing system. This small factor board is fully assembled with AS5600 position sensor and its necessary external components. All relevant signals are available on a dual-row 2.54mm 4-pin header footprint and can be easily wired to an existing application.

Ordering codes

Product Type Description Order No. Availability


User guides

User guide
