ams AS6221_EVM_SN Evaluation kit

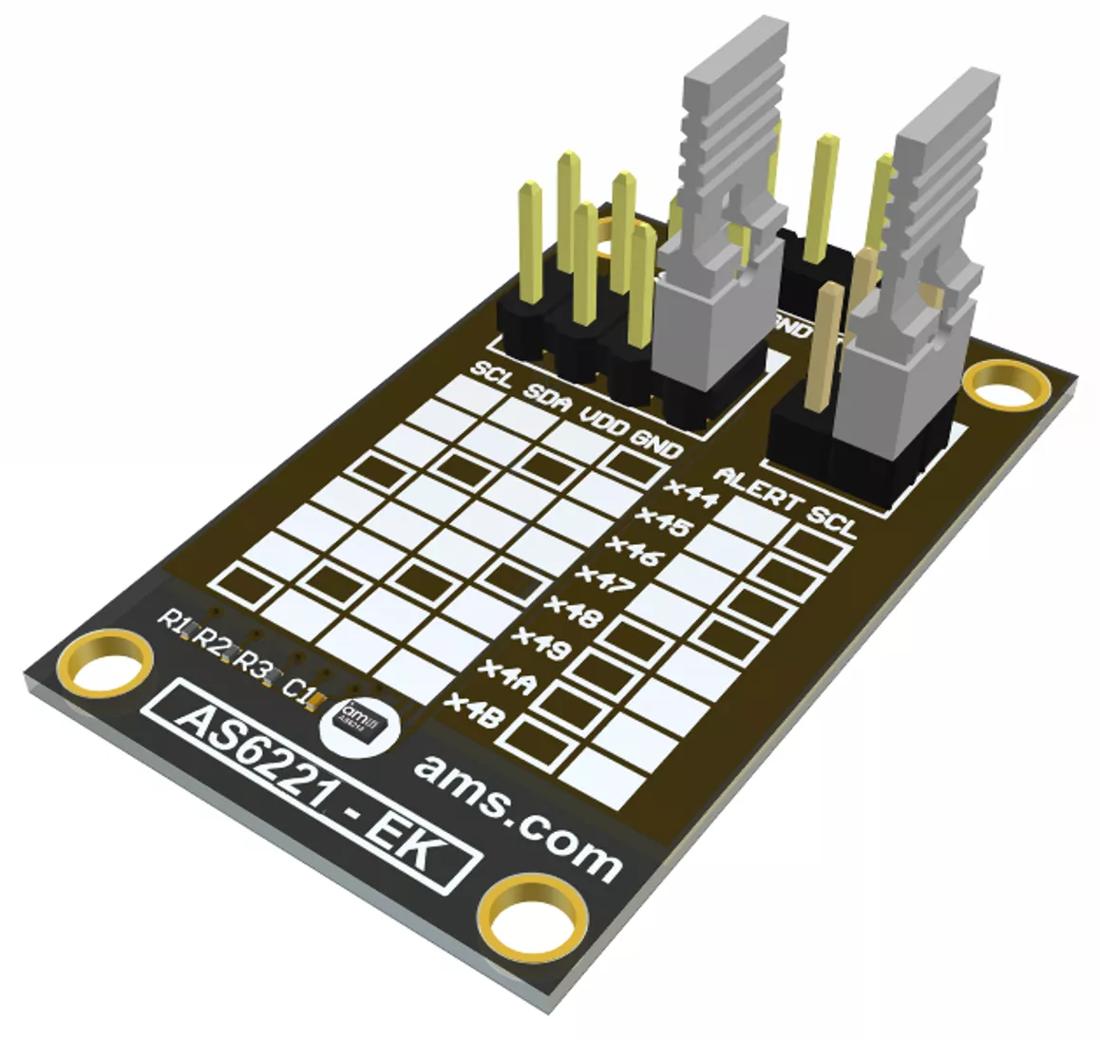

The AS6221 Eval Kit is a simple PCB to enable an easy evaluation of the ams temperature sensor. The board features an AS6221 digital temperature sensor, a decoupling capacitor and pull-up resistors. The included jumpers are an easy way of setting the eight I²C addresses of the sensor. A 5x1 pin header with a 2.54mm pitch offers all necessary interfaces to connect the adapterboard to your application processor.


User guides

User guide
